Why does the brightness of a bulb not change noticeably when you use longer copper wires to connect it to the battery? (1) Very little energy is dissipated in the thick connecting wires. (2) The electric field in connecting wires is very small, so emf≈EbulbLbulb. (3) Electric field in the connecting wires is zero, so emf≈EbulbLbulb. (4) Current in the connecting wires is smaller than current in the bulb. (5) All the current is used up in the bulb, so the connecting wires don’t matter.

Short Answer

Expert verified

The correct options are (1) Very little energy is dissipated in the thick connecting wires, and (2) The electric field in connecting wires is very small, so emf≈EbulbLbulb.

Step by step solution

01

Dissipated Energy:

When current is flowing through a conducting wire then due to the resistance of the wire, energy in the form of heat is dissipated.

The heat energy dissipated by a conducting wire is lower if the resistance of the conducting wire is lower.

02

Energy dissipated in the thick connecting wires

The expression for the resistance in the connecting wire is given by,

R=ÒÏLA

Here, ÒÏis the resistivity of the wire,L is the length of the wire, andA is the cross-sectional area of the wire.

From the expression, the resistance value of the wire will be lesser for a thicker wire per length. So, the energy dissipated in the thick connecting wires due to the resistance of the wire will also be lesser.

03

Electric field in connecting wires

Due to the less resistance in the wire, the voltage drop across the copper wire is also less. Then, due to the potential difference, the electric field inside the copper wire would also be less.

Then the voltage difference or emf in the wire would be almost equal to the potential difference in the bulb.

So, the emf in the wire can be given as,

emf≈EbulbLbulb

Hence, the correct options are (1) Very little energy is dissipated in the thick connecting wires, and (2) The electric field in connecting wires is very small, so emf≈EbulbLbulb.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Question: Three identical light bulbs are connected to two batteries as shown in Figure 18.106. (a) To start the analysis of this circuit you must write energy conservation (loop) equations. Each equation must involve a round-trip path that begins and ends at the same location. Each segment of the path should go through a wire, a bulb, or a battery (not through the air). How many valid energy conservation (loop) equations is it possible to write for this circuit? (b) Which of the following equations are valid energy conservation (loop) equations for this circuit? E1refers to the electric field in bulb 1; L refers to the length of a bulb filament. Assume that the electric field in the connecting wires is small enough to neglect.

(1) +E2L-E3L=0, (2) E1L-E3L=0, (3)+2emf-E2L-E3L=0, (4)E1L-E2L=0, (5)+2emf-E1L-E2L=0, (6)+2emf-E1L-E3L=0, (7)+2emf-E1L-E2L-E3L=0. (c) It is also necessary to write charge conservation equations (node) equations. Each such equation must relate electron current flowing into a node to electron current flowing out of a node. Which of the following are valid charge conservation equations for this circuit? (1)i1=i3, (2)i1=i2, (3)i1=i2+i3. Each battery has an emf of 1.5V. The length of the tungsten filament in each bulb is 0.008m. The radius of the filament is5×10-6m(it is very thin!). The electron mobility of tungsten is localid="1668588909714" 1.8×10-3(m/s)/(V/m). Tungsten has localid="1668588927161" 6×1028mobile electrons per cubic meter. Since there are three unknown quantities, we need three equations relating these quantities. Use any two valid energy conservation equations and one valid charge conservation equation to solve for localid="1668588943223" E1,E2,i1and localid="1668588965567" i2.

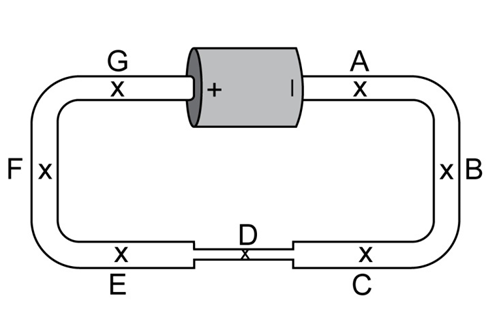

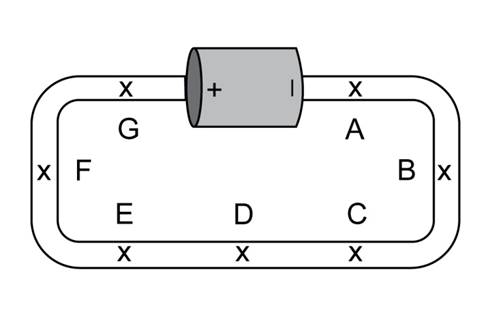

In the circuit shown in Figure 18.91, all of the wire is made of Nichrome, but one segment has a much smaller cross-sectional area. On a copy of this diagram, using the same scale for magnitude that you used in the previous question for Figure 18.90, show the steady-state electric field at the locations indicated, including in the thinner segment. Before attempting to answer these questions, draw a copy of this diagram. All of the locations indicated by letters are inside the wire.

(a)On your diagram, show the electric field at the locations indicated, paying attention to relative magnitude. Use the same scale for magnitude as you did in the previous question.

(b)Carefully draw pluses and minuses on your diagram to show the approximate surface charge distribution that produces the electric field you drew. Make your drawing show clearly the differences between regions of high surface charge density and regions of low surface-charge density. Use your diagram to determine which of the following statements about this circuit are true.

(1) There is a large gradient of surface charge on the wire between locations Cand E. (2) The electron current is the same at every location in this circuit.

(3) Fewer electrons per second pass location Ethan location C.

(4) The magnitude of the electric field at location Gis smaller in this circuit than it

was in the previous circuit (Figure 18.90).

(5) The magnitude of the electric field is the same at every location in this circuit.

(6) The magnitude of the electric field at location D is larger than the magnitude of the electric field at location G.

(7) There is no surface charge at all on the wire near location G.

(8) The electron current in this circuit is less than the electron current in the previous circuit (Figure 18.90).

In the circuit shown in Figure 18.87, bulbs 1 and 2 are identical in mechanical construction (the filaments have the same length and the same cross-sectional area), but the filaments are made of different metals. The electron mobility in the metal used in bulb 2 is three times as large as the electron mobility in the metal used in bulb 1, but both metals have the same number of mobile electrons per cubic meter. The two bulbs are connected in series to two batteries with thick copper wires (like your connecting wires).

(a)In bulb 1, the electron current is i1and the electric field is E1. In terms of these quantities, determine the corresponding quantities i2and E2for bulb 2, and explain your reasoning.

(b)When bulb 2 is replaced by a wire, the electron current through bulb 1 is i0and the electric field in bulb 1 is E0. How big is i1 in terms of i0? Explain your answer, including explicit mention of any approximations you must make. Do not use ohms or series-resistance equations in your explanation, unless you can show in detail how these concepts follow from the microscopic analysis introduced in this chapter.

(c)Explain why the electric field inside the thick copper wires is very small. Also explain why this very small electric field is the same in all of the copper wires, if they all have the same cross-sectional area.

(d)Figure 18.88 is a graph of the magnitude of the electric field at each location around the circuit when bulb 2 is replaced by a wire. Copy this graph and add to it, on the same scale, a graph of the magnitude of the electric field at each location around the circuit when both bulbs are in the circuit. The very small field in the copper wires has been shown much larger than it really is in order to give you room to show how that small field differs in the two circuits.

A Nichrome wire 30 cm long and 0.25 mm in diameter is connected to a 1.5 V flashlight battery. What is the electric field inside the wire? Why you don’t have to know how the wire is bent? How would your answer change if the wire diameter change were 0.35 mm? (Not that the electric field in the wire is quiet small compared to the electric field near a charged tape.)

In the circuit shown figure 18.108, two thick copper wires connect a 1.5 V battery to a Nichrome wire. Each thick connecting wire is 17 cm long and has a radius of 9 mm. Copper has 8.4×1028mobile electrons per cubic meter and electron mobility. The Nichrome wire is 8 cm long and has a radius of 3 mm. Nichrome has 9×1028mobile electrons per cubic meter and electron mobility of 7×10-5(ms)(Vm).

(a) What is the magnitude of the electric field in the thick copper wire?

(b) What is the magnitude of the electric field in the thin Nichrome wire?
