1/KThe charge on an isolated capacitor does not change when a sheet of glass is inserted between the capacitor plates, and we find that the potential difference decreases (because the electric field inside the insulator is reduced by a factor of 1/K ). Suppose instead that the capacitor is connected to a battery, so that the battery tries to maintain a fixed potential difference across the capacitor. (a) A light bulb and an air-gap capacitor of capacitanceC are connected in series to a battery with known emf. What is the final chargeQ on the positive plate of the capacitor? (b) After fully charging the capacitor, a sheet of plastic whose dielectric constantK is inserted into the capacitor and fills the gap. Does any current run through the light bulb? Why? What is the final charge on the positive plate of the capacitor?

Short Answer

Expert verified

The final charge of positive plate of the capacitor is the product of the capacitance and emf of the battery.

Step by step solution

01

Write the given data from the question.

The battery tries to main the fix potential difference across the capacitor,

Emf=ΔV

The dielectric constant of the plastic sheet is K.

The electric field inside the capacitor reduce by the factor1/K.

02

Determine the formulas to calculate final charge on the positive plate of capacitor.

The potential difference between the plates of the capacitor is defined as the ratio of the charge and capacitance of the capacitor.

The expression to calculate the potential difference of the capacitor is given as follows.

ΔV=QC …… (i)

Here,Q is the charge, andC is the capacitance of capacitor.

03

Calculate final charge on the positive plate of capacitor.

Calculate the charge of the capacitor.

Q=CΔV

SubstituteEmf forΔV into above equation.

Q=C(Emf)

The final charge of the capacitance is direction proportional to the emf of the battery.

Hence, the final charge of positive plate of the capacitor is the product of the capacitance and emf of the battery.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

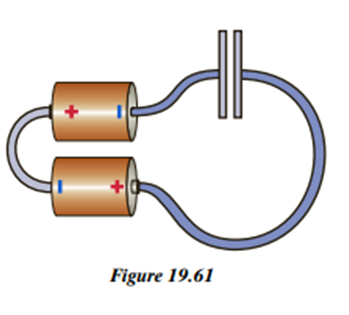

The circuit shown in Figure 19.61 consists of two flashlight batteries, a large air-gap capacitor, and Nichrome wire. The circuit is allowed to run long enough that the capacitor is fully charged with +Qand-Q on the plates.

Next you push the two plates closer together (but the plates don’t touch each other). Describe what happens, and explain why in terms of the fundamental concepts of charge and field. Include diagrams showing charge and field at several times.

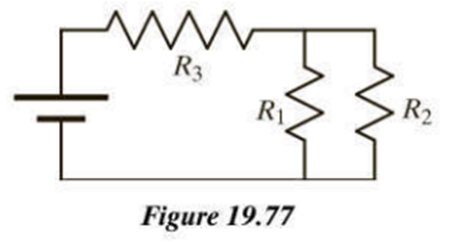

In the circuit shown in Figure 19.77 the emf of the battery is 7.4V. Resistor R1has a resistance of 31Ω, resistor R2 has a resistance of 47Ω, and resistor R3has a resistance of 52Ω . A steady current flows through the circuit.

(a)What is the equivalent resistance of R1and R2 ? (b) What is the equivalent resistance of all three resistors? (c) What is the conventional current throughR3

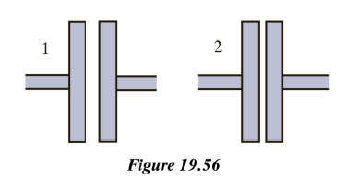

Consider two capacitors whose only difference is that the plates of capacitor number 2 are closer together than those of capacitor number 1 (Figure 19.56). Neither, capacitors has an insulating layer between the plates. They are placed in two different circuits having similar batteries and bulbs in series with the capacitor.

Show that in the first fraction of a second, the current stays nearly constant (decreases less rapidly) in the circuit with capacitor number 2. Explain your reasoning in detail.

Hint: Show charges on metal plates, and consider the electric fields they produce in the nearby wires. Remember that the fringe field near a plate outside a circular capacitor is approximately-

(QAεo)(s2R)

More extensive analysis shows that this trend holds true for the entire charging process: the capacitor with the narrower gap ends up with more charge on the plates.

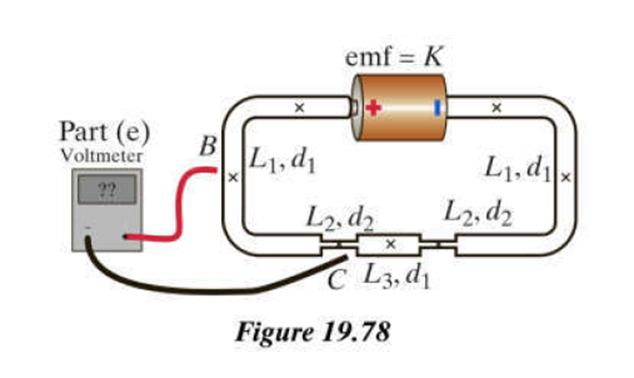

A circuit consists of a battery, whose emf is K, and five Nichrome wires, three thick and two thin as shown in Figure 19.78. The thicknesses of the wires have been exaggerated in order to give you room to draw inside the wires. The internal resistance of the battery is negligible compared to the resistance of the wires. The voltmeter is not attached until part (e) of the problem. (a) Draw and label appropriately the electric field at the locations marked × inside the wires, paying attention to appropriate relative magnitudes of the vectors that you draw. (b) Show the approximate distribution of charges for this circuit. Make the important aspects of the charge distribution very clear in your drawing, supplementing your diagram if necessary with very brief written descriptions on the diagram. Make sure that parts (a) and (b) of this problem are consistent with each other. (c) Assume that you know the mobile-electron density n and the electron mobility u at room temperature for Nichrome. The lengths (L1,L2,L3)and diameters (d1,d2)of the wires are given on the diagram. Calculate accurately the number of electrons that leave the negative end of the battery every second. Assume that no part of the circuit gets very hot. Express your result in terms of the given quantities (K,L1,L2,L3,d1,d2,nandu). Explain your work and identify the principles you are using. (d) In the case that d2≪d1, what is the approximate number of electrons that leave the negative end of every second? (e) A voltmeter is attached to the circuit with its + lead connected to location B (halfway along the leftmost thick wire) and its - lead connected to location C (halfway along the leftmost thin wire). In the case that d2≪d1, what is the approximate voltage shown on the voltmeter, including sign? Express your result in terms of the given quantities (K,L1,L2,L3,d1,d2,nandu).
