Question: The pressure in a traveling sound wave is given by the equation

.Δp=(1.50Pa)sinπ[1.900m-1x-1315s-1t]

Find the (a) Pressure amplitude, (b) Frequency, (c) Wavelength, and (d) Speed of the wave

Short Answer

Expert verified

Answer

  1. Pressure amplitude is 1.50 Pa.
  2. Sound wave has frequency 158 Hz.
  3. Sound wave has wavelength2.22 m .
  4. Velocity of the sound wave is 350 m/s.

Step by step solution

01

Given

The change in pressure of sound wave is,

Δp=(1.50Pa)sinπ[(1.900m-1)x-(1315s-1)t]

02

Determining the concept

By comparing the given equation of pressure variation with the general form of pressure variation of a sound wave, calculate the required values.

The formula is as follows:

∆Px,t=∆Pmsinkx-wt······································1

where P is pressure, k is spring constant, x is displacement,tis time and w is the angular frequency.

03

(a) Determining the

The change in pressure of sound wave is given as,

∆Px,t=∆Pmsinkx-wt······································1

The given pressure variation equation is,

∆P=1.50pasinπ0.900m-1x-315s-1t=1.50pasin0.900m-1πx-315s-1πt ····································2

Comparing equation 2 with equation 1, the pressure amplitude of a sinusoidal wave is,

Pm=1.50Pa

Hence, pressure amplitude is 1.50 Pa

04

(b) Determining the

Comparing equation (1) and (2),

Ó¬=315Ï€rad/s

and using,

f=Ӭ2πf=315πrad/s2×πf=158Hz

Hence, sound wave has frequency,f = 158 Hz .

05

(c) Determining the

Comparing equations 1 and 2, k=0.9Ï€m-1and using,

λ=2πk=2π0.9πm-1=2.22m

Hence, sound wave has wavelength 2.22m .

06

(d) Determining the

To calculate the speed of the wave using the values of wavelength and wave number in,

v=λf=2.22m× 158Hz=350m/s

Hence, velocity of sound wave is 350m/s.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The sixth harmonic is set up in a pipe. (a) How many open ends does the pipe have (it has at least one)? (b) Is there a node, antinode, or some intermediate state at the midpoint?

One of the harmonic frequencies of tube Awith two open ends is 325Hz. The next-highest harmonic frequency is 390Hz. (a) What harmonic frequency is next highest after the harmonic frequency 195Hz? (b) What is the number of this next-highest harmonic? One of the harmonic frequencies of tube Bwith only one open end is 1080Hz. The next-highest harmonic frequency is 1320Hz. (c) What harmonic frequency is next highest after the harmonic frequency 600Hz? (d) What is the number of this next-highest harmonic?

You have five tuning forks that oscillate at close but different frequencies. What are the (a) maximum and, (b) minimum number of different beat frequencies you can produce by sounding the forks two at a time, depending on how the frequencies differ?

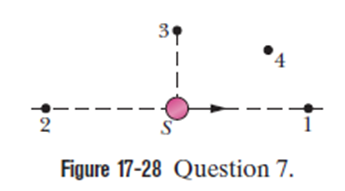

Question: Figure 17-28 shows a moving sound source S that emits at a certain

frequency, and four stationary sound detectors. Rank the detectors

according to the frequency of the sound they detect from the

source, greatest first.

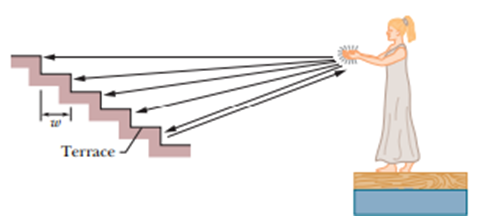

Question: A handclap on stage in an amphitheater sends out sound waves that scatters from terraces of width W 0.75 mfigure. The sound returns to the stage as a periodic series of pulses, one from each terrace; the parade of pulses sounds like a played note (a)Assuming that all the rays in figure are horizontal , find the frequency at which the pulses return(that is ,the frequency of the perceived note .(b)If the widthof the terraces were smaller would the frequency be higher or lower?
