You have five tuning forks that oscillate at close but different frequencies. What are the (a) maximum and, (b) minimum number of different beat frequencies you can produce by sounding the forks two at a time, depending on how the frequencies differ?

Short Answer

Expert verified
  1. The maximum number of different beat frequencies produced by sounding the forks two at a time is 10.
  2. The minimum number of different beat frequencies produced by sounding the forks two at a time is 4.

Step by step solution

01

The given data

  1. Total no. of tuning forks, n = 5
  2. Selecting number of forks, r = 2
02

Understanding the concept of frequency

We can find the maximum possible number of different frequencies produced by sounding the forks at a time by taking the combination. Then using the concept of unique beat frequency, we can find the minimum possible number of different frequencies produced by sounding the forks at a time.

Formula:

The combination formula for selection r values from n values,

nCr=n!r!(n-r)! ...(ii)

Frequency of nth oscillation,fn=f1+n∆f,where,fbeat=n∆f ...(ii)

03

a) Calculation of maximum number of beat frequencies

The maximum number of different beat frequencies by sounding two forks at a time can be found by taking the formula of equation (i) and the given data as:

5C2=5!3!5-2!=10

Therefore, the maximum number of different beat frequencies produced by sounding the forks two at a time is 10.

04

b) Calculation of minimum beat frequencies

If we have N forks that are evenly spaced with P Hz, the possible beat differences are P, 2P, 3P, 4P… (n-1)P.

In this case, using equation (ii), we can get the frequency as:

fn=f1+nP,wheren=2,3,4,5.

Therefore, the minimum number of different beat frequencies produced by sounding the forks two at a time is 4.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In Fig. 17-25, two point sources S1andS2, which are in phase, emitidentical sound waves of wavelength2.0m. In terms of wavelengths, what is the phase differencebetween the waves arriving atpoint Pif (a)L1=38mandL2=34m, and (b)L1=39mandL2=36m? (c) Assuming that the source separation is much smaller thanL1andL2, what type of interference occurs atin situations (a) and (b)?

In Figure, Sis a small loudspeaker driven by an audio oscillator with a frequency that is varied from1000 H³ú to 2000 H³ú, andDis a cylindrical pipe with two open ends and a length of45.7cm. The speed of sound in the air-filled pipe is344m/s. (a) At how many frequencies does the sound from the loudspeaker set up resonance in the pipe? What are the (b) lowest and (c) second lowest frequencies at which resonance occurs?

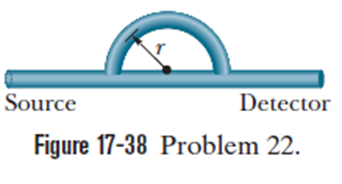

In figure, sound with a 4.40 cm wavelength travels rightward from a source and through a tube that consists of a straight portion and half-circle. Part of the sound wave travels through the half-circle and then rejoins the rest of the wave, which goes directly through the straight portion. This rejoining results in interference. What is the smallest radius rthat result in an intensity minimum at the detector?
