Chapter 16: Q80P (page 477)

When played in a certain manner, the lowest resonant frequency of a certain violin string is concert A (440 Hz). What is the frequency of the (a) second and (b) third harmonic of the string?

Short Answer

Expert verified
  1. Frequency of second harmonic is 880 Hz
  2. Frequency of third harmonic is 1320 Hz

Step by step solution

01

Given data

Lowest frequency isf1=440Hz

02

Understanding the concept of fundamental frequency

We have to usetheformula for nth harmonic frequency which is n timesthefundamental frequency.

Formula:

The frequency of oscillation of n-loops, fn=n脳v2L........1

03

Step 3(a): Calculation for second harmonic frequency

The lowest frequency is given. It means that the first harmonic frequency is 440 Hz , and using equation (1) and the frequency, it is given as:

440=v2L......2

Now the second harmonic frequency using equations (1) and (2) is given as follows:

role="math" localid="1660993667219" f2=2脳v2L=2脳440=880Hz

Hence, the value of second-harmonic frequency is 880 Hz

04

Step 4(b): Calculation of third harmonic frequency

Third harmonic using equations (1) and (2) is given as follows:

f3=3脳v2L=3脳440=1320Hz

Hence, the value of third-harmonic frequency is 1320 Hz

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

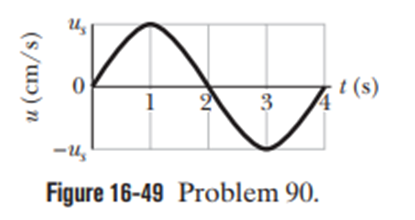

A certain transverse sinusoidal wave of wavelength 20cmis moving in the positive direction of an xaxis. The transverse velocity of the particle at x = 0as a function of time is shown in Fig. 16-49, where the scale of the vertical axis is set by. What are the (a) wave speed, (b) amplitude, and (c) frequency? (d) Sketch the wave between x = 0and x = 20cm at t = 2.0 s.

(a) Write an equation describing a sinusoidal transverse wave traveling on a cord in the positive direction of a yaxis with an angular wave number of 60 cm-1, a period of 0.20 s, and an amplitude of 3.0 mm. Take the transverse direction to be thedirection. (b) What is the maximum transverse speed of a point on the cord?

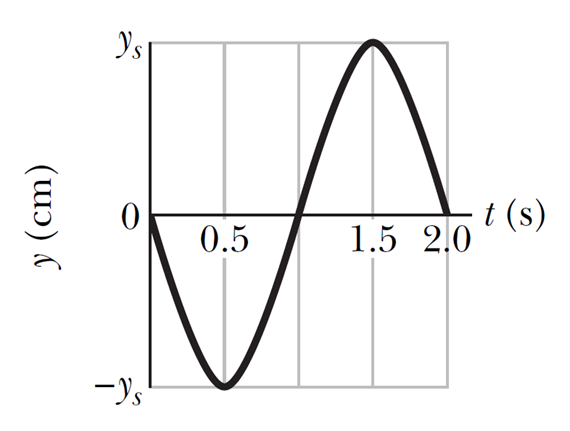

For a particular transverse standing wave on a long string, one of an antinodes is at x = 0and an adjacent node is at x = 0.10 m. The displacement y(t)of the string particle at x = 0is shown in Fig.16-40, where the scale of y theaxis is set by ys=4.0cm. When t = 0.50 s, What is the displacement of the string particle at (a) x = 0.20 mand x = 0.30 m (b) x = 0.30 m? What is the transverse velocity of the string particle at x = 0.20 mat (c) t = 0.50 sand (d) t = 0.1 s ? (e) Sketch the standing wave atfor the range x = 0to x = 0.40 m.
