A sand scorpion can detect the motion of a nearby beetle (its prey) by the waves the motion sends along the sand surface (Figure). The waves are of two types: transverse waves traveling at vt=50m/sand longitudinal waves traveling at vt=50m/s. If a sudden motion sends out such waves, a scorpion can tell the distance of the beetle from the difference localid="1657274843608" tin the arrival times of the waves at its leg nearest the beetle. If localid="1661230422984" ∆t=4.0ms, what is the beetle’s distance?

Short Answer

Expert verified

The beetle’s distance is6×103m

Step by step solution

01

The given data

  • The speed of the transverse wave,u=50m/s
  • The speed of the longitudinal wave,v=150m/s
  • The time difference between the two signals,∆t=4.0msor4.0×10-3s
02

Understanding the concept of waves

The transverse wave is the wave in which the particles of the medium oscillate perpendicular to the direction of propagation of the wave. In a longitudinal wave, the particles of the medium oscillate in the direction that is parallel to the direction of propagation of the wave.

The two types of waves traveling from the beetle to the scorpion move at different speeds. This creates a time difference between the two signals as they reach the scorpion. This time difference in the two signals helps the scorpion locates the prey.

Formula:

The velocity of a wave, u=dt (i)

03

Calculation of the distance of the beetle

The two waves travel the same distance with different speeds. Hence, the time for both transverse and longitudinal waves using equation (i), we get

Timefortransversewave,tt=du............................(1)

And

Timeforlongitudinnalwave,tt=dv..........................(2)

Hence, using the same equation (i), (1) & (2) and the given values of time difference and velocities, the distance of the beetle will be as given:

∆t=du-dv4×10-3=d50-d1504×10-3=100d150d=0.6100=6×10-3m

Hence, the value of the beetle’s distance is6×10-3m.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Energy is transmitted at rateP1by a wave of frequency f1 on a string under tension τ1. What is the new energy transmission rate P2 in terms ofP1(a) if the tension is increased toτ2=4τ1 and (b) if, instead, the frequency is decreased tof2=f1/2?

A string that is stretched between fixed supports separated by 75.0 cmhas resonant frequencies of 420and 315 Hz , with no intermediate resonant frequencies. What are (a) the lowest resonant frequency and (b) the wave speed?

Three sinusoidal waves of the same frequency travel along a string in the positive direction of an xaxis. Their amplitudes are y1,y1/2, andy1/3, and their phase constants are 0,π/2, andπ, respectively. What are the (a) amplitude and (b) phase constant of the resultant wave? (c) Plot the wave form of the resultant wave at t=0, and discuss its behavior as tincreases.

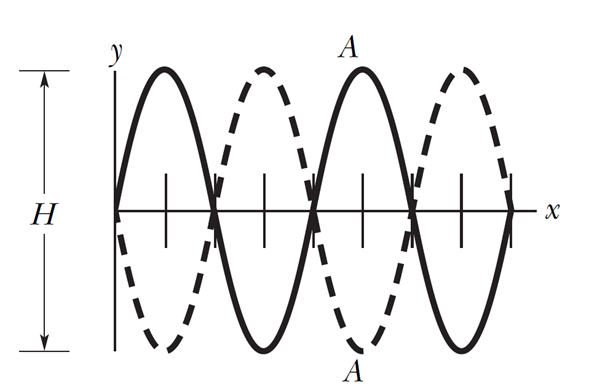

Two sinusoidal waves with the same amplitude and wavelength travel through each other along a string that is stretched along an xaxis. Their resultant wave is shown twice in Fig. 16-41, as the antinode Atravels from an extreme upward displacement to an extreme downward displacement in. The tick marks along the axis are separated by 10 cm; height His 1.80 cm. Let the equation for one of the two waves is of the form y(x,t)=ymsin(kx+Ó¬t).In the equation for the other wave, what are (a)ym, (b) k, (c) Ó¬, and (d) the sign in front ofÓ¬?

A rope, under a tension of 200 Nand fixed at both ends, oscillates in a second-harmonic standing wave pattern. The displacement of the rope is given by y=(0.10m)(sinÏ€³æ/2)sin12Ï€³Ù , where x = 0at one end of the rope, x is in meters, andis in seconds. What are (a) the length of the rope, (b) the speed of the waves on the rope, and (d) the mass of the rope? (d) If the rope oscillates in a third-harmonic standing wave pattern, what will be the period of oscillation?
