The sinusoidal wave exhibits different displacements at different positions .Thus, the slope at different points varies withtheposition. We use this concept along with the equation of the travelling wave to calculate amplitude.

Formula:

The expression of wave equation, $y=y_m\cos \left(kx-\mathrm{Ó\neg }t\right)$ (i)

The wavenumber of a wave, $k=\frac{2\mathrm{π}}{\mathrm{λ}}$ (ii)

Here, $\mathrm{Ó\neg }$is the angular velocity of the wave and $y_m$is the amplitude of the oscillation

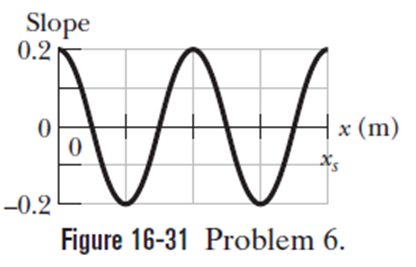

The scale of x axis is given as 0.80 m. This distance is equivalent to two wavelengths.

Hence, the wavelength is given as:

$\begin{array}{l}2\mathrm{λ}=0.80m\\ \mathrm{λ}=0.40\mathrm{m}\end{array}$

For x=0 and t=0 , equation (i) becomes-

$\begin{array}{ll}y=y_m& \cos (k\left(0\right)-\mathrm{Ó\neg }\left(0\right))\\ y=y_m& \cos \left(0\right)\\ y=y_m& \end{array}$

From the graph, the value of y at x=0 is 0.2 . So, the above equation becomes-

$y_m=0.2$

Thus, the amplitude of the curve given in the graph is 0.2.
