Suppose 200 Jof work is done on a system and 70.0 calis extracted from the system as heat. In the sense of the first law of thermodynamics, what are the values (including algebraic signs) of (a) W, (b) Q, and (c)∆Eint?

Short Answer

Expert verified
  1. The value of W is-200J
  2. The value of Q is-293J
  3. The value of∆Eint is-93J

Step by step solution

01

The given data

  1. Work done on the system is200J
  2. Heat extracted from the system is-70cal
02

Understanding the concept of first law of thermodynamics

According to the first law of thermodynamics, energy can only be transformed, not created or destroyed. Using the first law of thermodynamics, we can calculate the above quantities.

Formula:

The equation to the heat change in the first law of thermodynamics,

dQ=dW+dEint …(¾±)

03

(a) Calculation of the work done

W is positive if work is done by the system, and negative if work is done on the system. Since the work is done on the system, it is taken as negative.

So,

W=-200J

Hence, the value of W is-200J

04

(b) Calculation of heat Q

Q is positive if heat is added to the system and negative if heat is removed. Since the heat is extracted from the system, it is taken as negative.

Therefore,

Q=-70cal=-70×4.18J∵1cal=4.18J=-292.6J≈-293J

Hence, the value of the heat, Q isdata-custom-editor="chemistry" -293J

05

(c) Calculation of the internal energy ∆Eint

From first law of thermodynamics, that is equation (i), we get the internal energy of the system as:

∆Eint=Q-W=-293J--200J=-93J

Hence, the value of the internal energy is-93J.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A cylindrical copper rod of length1.2 mand cross sectional area4.8 c³¾2is insulated to prevent heat loss through its surface. The ends are maintained at a temperature difference of100 0Cby having one end in a water – ice mixture and the other in a mixture of boiling water and steam.(a) At what rate is energy conducted along the rod? (b) At what rate does ice melt at the cold end?

Figure 18-26 shows three different arrangements of materials 1, 2, and 3 to form a wall. The thermal conductivities are k1>k2>k3. The left side of the wall is20° higher than the right side. Rank the arrangements according to (a) the (steady state) rate of energy conduction through the wall and (b) the temperature difference across material 1, greatest first.

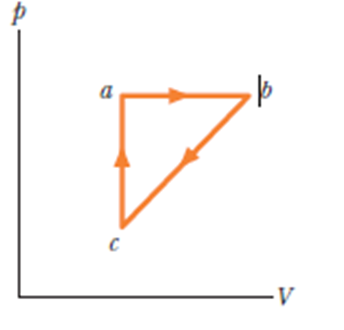

A lab sample of gas is taken through cycle abca shown in the p-V diagram of Figure. The net work done is +1.2 J. Along path ab, the change in the internal energy is +3.0 Jand the magnitude of the work done is 5.0 J. Along path ca, the energy transferred to the gas as heat is +2.5 J.

  1. How much energy is transferred as heat along path ab and
  2. How much energy is transferred as heat along path bc?

Ice has formed on a shallow pond, and a steady state has been reached, with the air above the ice at−5.0º°äand the bottom of the pond at.4.0º°ä If the total depth of ice + water is,1.4m how thick is the ice? (Assume that the thermal conductivities of ice and water are0.40and, 0.12cal/m.0C.srespectively.)

A 150 gcopper bowl contains 220 gof water, both at20.0∘C. A very hot 300 gcopper cylinder is dropped into the water, causing the water to boil, with 5.00 g being converted to steam. The final temperature of the system is100∘C. Neglect energy transfers with the environment. (a) How much energy (in calories) is transferred to the water as heat? (b) How much to the bowl? (c) What is the original temperature of the cylinder?
