Question: A performer seated on a trapeze is swinging back and forth with a period of 8.85s . If she stands up, thus raising the center of mass of the trapeze+ performer system by 35.0 cm , what will be the new period of the system? Treat trapeze+ performer as a simple pendulum.

Short Answer

Expert verified

Answer

The period of oscillation of the system as (trapeze + performer) for standing is 8.77s.

Step by step solution

01

Identification of given data

  1. The period of swinging of the trapeze is T = 8.85 s
  2. For standing, the center of mass of the system is h=35.0cm or35.0×10-2m
02

Understanding the concept

The simple pendulum oscillates to perform a simple harmonic motion. In simple harmonic motion, the acceleration is proportional to the displacement of the particle and is always directed towards the mean position. The time period of oscillation of a pendulum can be defined in terms of its length and gravitational acceleration.

Formulae:

T=2Ï€Lg

Here, T is the time period of oscillation, L is the length of pendulum, g is gravitational acceleration.

03

Determining the new period of the system

Consider the system (trapeze + performer) is a simple pendulum.The period of oscillation for the simple pendulum is,

T=2Ï€Lg

When the performer is sitting, the length of the system is

T2=4Ï€2LgL=T2g4Ï€2

When the performer is standing, the new length of the system is

L'=L-h

The new period of oscillation for the simple pendulum is

T'=2πL'g=2πL-hg=2πT2g4π2-hg=2π8.85s2×9.8m/s24×3.142-35.0×10-2m9.8m/s2=8.77s

Therefore, the period of oscillation of the system as (trapeze + performer) for standing is 8.77s .

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The vibration frequencies of atoms in solids at normal temperatures are of the order of1013Hz. Imagine the atoms to be connected to one another by springs. Suppose that a single silver atom in a solid vibrates with this frequency and that all the other atoms are at rest. Compute the effective spring constant. One mole of silver (6.021023atoms) has a mass of 108 g.

A 2.00 kgblock hangs from a spring. A 300 kgbody hung below the block stretches the spring 2.00 cmfarther.

  1. What is the spring constant?
  2. If the 300 kgbody is removed and the block is set into oscillation, find the period of the motion.

When a 20 Ncan is hung from the bottom of a vertical spring, it causes the spring to stretch 20 cm .

  1. What is the spring constant?
  2. This spring is now placed horizontally on a frictionless table. One end of it is held fixed, and the other end is attached to a 5.0 Ncan. The can is then moved (stretching the spring) and released from rest. What is the period of the resulting oscillation?

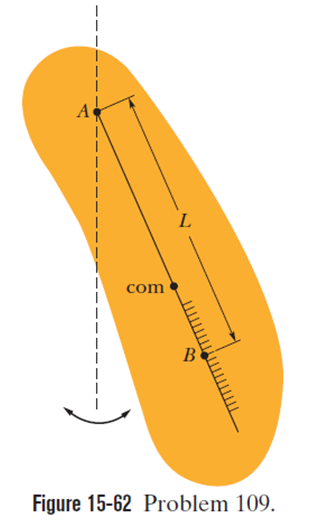

The physical pendulum in Fig. 15-62 has two possible pivot points A and B. Point A has a fixed position but B is adjustable along the length of the pendulum as indicated by the scaling. When suspended from A, the pendulum has a period ofT=1.80s. The pendulum is then suspended from B, which is moved until the pendulum again has that period. What is the distance L between A and B?

A loudspeaker produces a musical sound by means of the oscillation of a diaphragm whose amplitude is limited to1.00μ³¾.

(a) At what frequency is the magnitudeof the diaphragm’s acceleration equal to g?

(b) For greater frequencies, isgreater than or less than g?
