You place a magnetic compass on a horizontal surface, allow the needle to settle, and then give the compass a gentle wiggle to cause the needle to oscillate about its equilibrium position. The oscillation frequency is 0.312Hz. Earth’s magnetic field at the location of the compass has a horizontal component of18.0μ°Õ. The needle has a magnetic moment of0.680mJ/T. What is the needle’s rotational inertia about its (vertical) axis of rotation?

Short Answer

Expert verified

The needle’s rotational inertia about its (vertical) axis of rotation isI=0.318×10−8kg.m2

Step by step solution

01

Listing the given quantities

f=0.312Hz

B=18.0×10-6T

μ=0.680×10-3J/T

02

Understanding the concepts of torque related with magnetic moment

Here, we need to use the equation of torque relating with magnetic moment and magnetic field. We can compare this equation with the equation of restoring torque to find the restoring constant kappa. Then using the equation of period, we can find the rotational inertia.

Formulae:

Torque acting on magnetic needle due to external magnetic fieldÏ„=μµþ²õ¾±²Ô(θ)

Restoring torque:Ï„=−°ìθ

Time periodT=2Ï€Ik

03

Step 3:Calculations of the needle’s rotational inertia about its (vertical) axis of rotation

Equate both torque equations to find the relation fork:

°ìθ=μµþ²õ¾±²Ô(θ)

Assin(θ)is very small, putsin(θ)=θ

Hence,

k=μµþ

Now put this value in the equation of time period.

T=2Ï€Iμµþ

Rearranging the equation for:

I=T2Ï€2(μµþ)

We have

T=1f=10.312=3.205s

Therefore,

I=3.2052π2(0.680×10−3×18×10−6)=0.318×10−8kg.m2

The needle’s rotational inertia about its (vertical) axis of rotation is I=0.318×10−8kg.m2

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

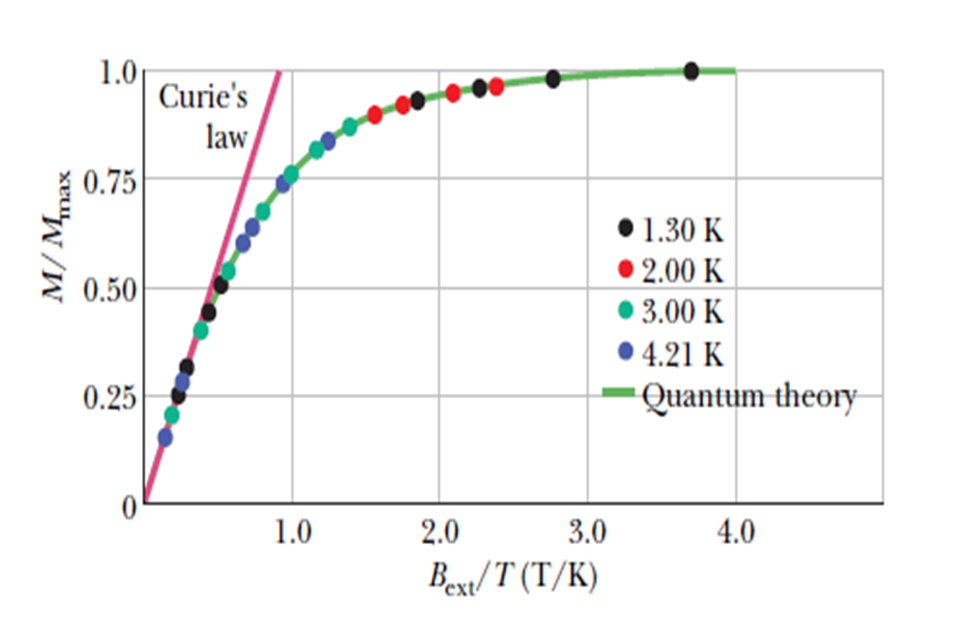

A sample of the paramagnetic salt to which the magnetization curve of Figure applies is held at room temperature (300K). (a) At what applied magnetic field will the degree of magnetic saturation of the sample be50%? (b) At what applied magnetic field will the degree of magnetic saturation of the sample be90%? (c) Are these fields attainable in the laboratory?

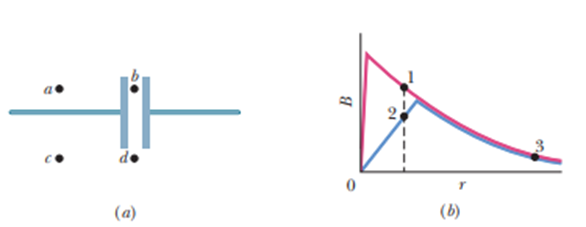

Figure 32-19a shows a capacitor, with circular plates, that is being charged. Point a (near one of the connecting wires) and point b (inside the capacitor gap) are equidistant from the central axis, as are point c (not so near the wire) and point d (between the plates but outside the gap). In Fig. 32-19b, one curve gives the variation with distance r of the magnitude of the magnetic field inside and outside the wire. The other curve gives the variation with distance r of the magnitude of the magnetic field inside and outside the gap. The two curves partially overlap. Which of the three points on the curves correspond to which of the four points of Fig. 32-19a?

At what rate must the potential difference between the plates of a parallel-plate capacitor with a2.0μF capacitance be changed to produce a displacement current of1.5A?

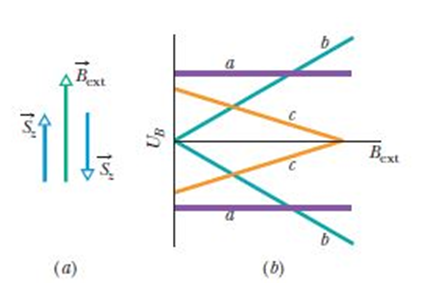

Figure 32-22a shows a pair of opposite spins orientations for an electron in an external magnetic fieldB⇶Äext. Figure 32-22b gives three choices for the graph of the energies associated with those orientations as a function of the magnitudeB⇶Äext. Choices b and c consist of intersecting lines and choice of parallel lines. Which is the correct choice?
