What is the energy difference between parallel and antiparallel alignment of the zcomponent of an electron’s spin magnetic dipole moment with an external magnetic field of magnitude0.25 T, directed parallel to the zaxis?

Short Answer

Expert verified

The energy difference between parallel and antiparallel state of electronis

ΔU=4.6×10-24J

Step by step solution

01

Listing the given quantities

B→=0.25TZ^

02

Understanding the concepts of magnetic dipole moment

Potential energy of the spin magnetic dipole moment in an external magnetic field is given by the dot product of spin magnetic dipole moment and external magnetic field. The spin magnetic dipole moment is quantized, and it can take only two discrete values corresponding to parallel or antiparallel orientation of spin.

Formula:

U=-μs→·Bext→

03

Calculations of the energy difference between parallel and antiparallel state of electron

For parallel spin state,

Up=-μs→·Bext→=-μs→·BZ^=-μsz·B=-eh4πme·0.25T

For antiparallel spin state,

Ua=-μs→·Bext→=-μs→·BZ^=-μsz·B=+eh4πme·0.25

The energy difference between the parallel and antiparallel state of electron is

ΔU=Ua-Up

ΔU=+eh4πme·0.25+eh4πme·0.25=0.50·eh4πme=0.50×9.27×10-24=4.6×10-24J

Thus, the energy difference between parallel and antiparallel state of electron isΔU=4.6×10-24J

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A charge q is distributed uniformly around a thin ring of radiusr . The ring is rotating about an axis through its center and perpendicular to its plane, at an angular speedӬ. (a) Show that the magnetic moment due to the rotating charge has magnitude μ=12qӬr2. (b) What is the direction of this magnetic moment if the charge is positive?

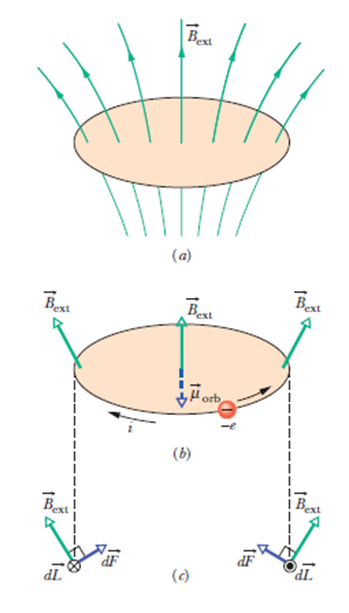

Does the magnitude of the net force on the current loop of Figs. 32-12a and b increase, decrease, or remain the same if we increase (a) the magnitude of B⇶Äextand (b) the divergence of B⇶Äext?

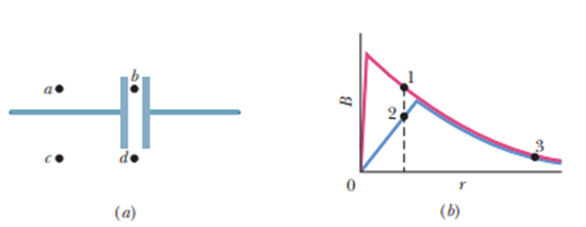

Figure 32-19a shows a capacitor, with circular plates, that is being charged. Point a (near one of the connecting wires) and point b (inside the capacitor gap) are equidistant from the central axis, as are point c (not so near the wire) and point d (between the plates but outside the gap). In Fig. 32-19b, one curve gives the variation with distance r of the magnitude of the magnetic field inside and outside the wire. The other curve gives the variation with distance r of the magnitude of the magnetic field inside and outside the gap. The two curves partially overlap. Which of the three points on the curves correspond to which of the four points of Fig. 32-19a?

Figure 32-20 shows a parallel-plate capacitor and the current in the connecting wires that are discharging the capacitor. Are the directions of (a) electric field E⇶Äand (b) displacement current idleftward or rightward between the plates? (c) Is the magnetic field at point P into or out of the page?

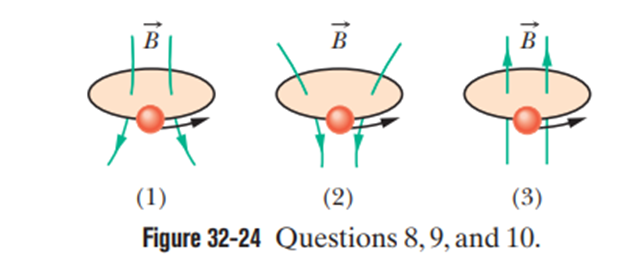

Figure 32-24 shows three loop models of an electron orbiting counterclockwise within a magnetic field. The fields are non-uniform for models 1 and 2 and uniform for model 3. For each model, are (a) the magnetic dipole moment of the loop and (b) the magnetic force on the loop directed up, directed down, or zero?
