An electron is placed in a magnetic field B→ that is directed along azaxis. The energy difference between parallel and antiparallel alignments of the zcomponent of the electron’s spin magnetic moment withB→is6.00×10-25J. What is the magnitude ofB→?

Short Answer

Expert verified

The magnitude of the magnetic field is32.36mT

Step by step solution

01

Identification of given data

Theenergy difference between parallel and antiparallel alignments of the zcomponent of the electron’s spin magnetic moment is, ΔU=6.0×10-25J

02

Definition of Potential Energy of Spin Magnetic Moment and expression for the magnitude of the magnetic field

The potential energy of the spin magnetic dipole moment kept in an external magnetic field is given by the dot product of the spin magnetic dipole moment and the external magnetic field.The expression for the magnitude of the magnetic field is given as follows,

B=ΔU2μB

Here, ΔUis theenergy difference between parallel and antiparallel alignments, and μBis themagnetic dipole moment with the value9.27×10-24J/T.

03

Determination of the Magnitude of the Magnetic Field

Substitute all the values in the expression for the magnitude of the magnetic field.

B=6.0×10-25J2×9.27×10-24J/T=3×10-19.27T=0.3236×10-1T×1000mT1T=32.36mT

Thus, the magnitude of the magnetic field is32.36mT .

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A capacitor with parallel circular plates of the radius R=1.20cmis discharging via a current of 12.0 A . Consider a loop of radiusR/3that is centered on the central axis between the plates. (a)How much displacement current is encircled by the loop? The maximum induced magnetic field has a magnitude of 12.0 mT. (b)At what radius inside and (c)outside the capacitor gap is the magnitude of the induced magnetic field 3.00 mT?

A parallel-plate capacitor with circular plates of the radius Ris being charged. Show that, the magnitude of the current density of the displacement current is

role="math" localid="1663149858775" Jd=ε0(dEdt)forr⩽R.

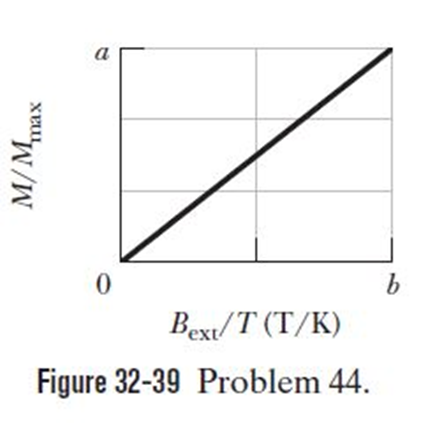

Question: Figuregives the magnetization curve for a paramagnetic material. The vertical axis scale is set bya=0.15, and the horizontal axis scale is set byb=0.2T/K. Letμsambe the measured net magnetic moment of a sample of the material andμmaxbe the maximum possible net magnetic moment of that sample. According to Curie’s law, what would be the ratioμsam/μmax were the sample placed in a uniform magnetic field of magnitude, at a temperature of 2.00 k?

The magnitude of the electric field between the two circular parallel plates in Fig. isE=(4.0×105)-(6.0×104t), with Ein volts per meter and tin seconds. At t=0, E→is upward. The plate area is 4.0×10-2 m2. For t≥0,(a) What is the magnitude and (b) What is the direction (up or down) of the displacement current between the plates, and (c) What is the direction ofthe induced magnetic field clockwise or counter-clockwise in the figure?

In Fig, a uniform electric field E⇶Äcollapses. The vertical axis scale is set by 6.0×105N/C, and the horizontal axis scale is set by ts=12.0μs. Calculate the magnitude of the displacement current through a 1.6m2area perpendicular to the field during each of the time intervals a,b, and cisshown on the graph.
