Figure 35-24a gives intensity lversus position x on the viewing screen for the central portion of a two-slit interference pattern. The other parts of the figure give phasor diagrams for the electric field components of the waves arriving at the screen from the two slits (as in Fig. 35-13a).Which numbered points on the screen bestcorrespond to which phasor diagram?

(a) Figure 1

(b) Figure 2

(c) Figure 3

(d) Figure 4

Short Answer

Expert verified

a) The phase difference in Figure 2 corresponds to points 3 and 5 on Figure 1

b) The phase difference in Figure 3 corresponds to points 1 and 4 on Figure 1.

c) The phase difference in Figure 4 corresponds to point 2 on Figure 1

Step by step solution

01

Given data:

Phase differences between two waves for three different cases are provided in the given phasor diagrams

02

Relation between phase difference and the interference pattern:

The phase difference between interfering waves for the formation of maxima

∆ϕ=2nπn=0,1,2,3... .....(1)

Phase difference between interfering waves for the formation of minima

∆ϕ=(2n+1)πn=0,1,2,3... .....(2)

03

(a) Determining the interference point for the first phase difference:

The phase difference in the first figure 2 can be represented by

∆ϕ=2n+1π,n=0,1,2,3...

This represents minima in the interference pattern and thus can correspond to points 3 and 5 on figure 1.

04

(b) Determining the interference point for the second phase difference:

The phase difference in the first figure 2 can be represented by

∆ϕ=2nπn=0,1,2..

This represents maxima in the interference pattern and thus can correspond to points 1 and 4 in figure 1.

05

(c) Determining the interference point for the second phase difference:

The phase difference in the first figure 2 can be represented by

∆ϕ=nπ2,n=1,5,9...

This represents points between maxima and minima in the interference pattern and thus can correspond to point 2 on figure 1.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In a double-slit experiment, the fourth-order maximum for a wavelength of 450 nm occurs at an angle of θ=90°. (a) What range of wavelengths in the visible range (400 nm to 700 nm) are not present in the third-order maxima? To eliminate all visible light in the fourth-order maximum, (b) should the slit separation be increased or decreased and (c) what least change is needed?

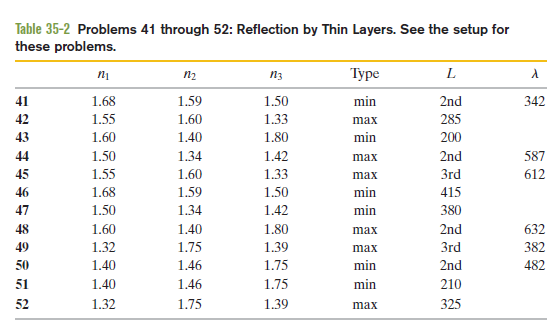

Reflection by thin layers. In Fig. 35-42, light is incident perpendicularly on a thin layer of material 2 that lies between (thicker) materials 1 and 3. (The rays are tilted only for clarity.) The waves of rays r1and r2interfere, and here we consider the type of interference to be either maximum (max) or minimum (min). For this situation, each problem in Table 35- 2 refers to the indexes of refraction n1,n2and n3, the type of interference, the thin-layer thickness in nanometres, and the wavelength λ in nanometres of the light as measured in air. Where is missing, give the wavelength that is in the visible range. Where is missing, give the second least thickness or the third least thickness as indicated.

We wish to coat flat glass (n = 1.50) with a transparent material (n = 1.25) so that reflection of light at wavelength 600 nm is eliminated by interference. What minimum thickness can the coating have to do this?

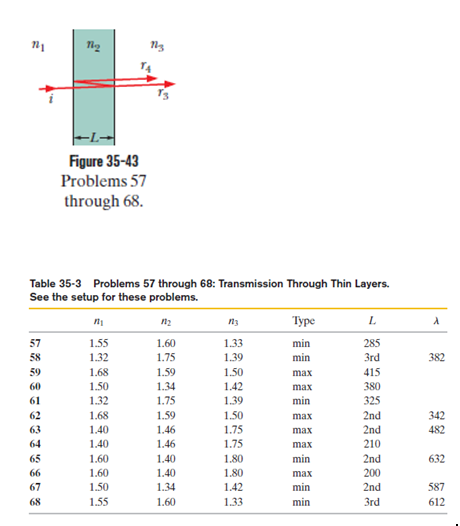

Transmission through thin layers. In Fig. 35-43, light is incident perpendicularly on a thin layer of material 2 that lies between (thicker) materials 1 and 3. (The rays are tilted only for clarity.) Part of the light ends up in material 3 as ray r3(the light does not reflect inside material 2) and r4(the light reflects twice inside material 2). The waves of r3and r4interfere, and here we consider the type of interference to be either maximum (max) or minimum (min). For this situation, each problem in Table 35-3 refers to the indexes of refraction n1,n2and n3, the type of interference, the thin-layer thickness L in nanometers, and the wavelength in nanometers of the light as measured in air. Where λis missing, give the wavelength that is in the visible range. Where Lis missing, give the second least thickness or the third least thickness as indicated.
