In a double-slit experiment, the fourth-order maximum for a wavelength of 450 nm occurs at an angle of θ=90°. (a) What range of wavelengths in the visible range (400 nm to 700 nm) are not present in the third-order maxima? To eliminate all visible light in the fourth-order maximum, (b) should the slit separation be increased or decreased and (c) what least change is needed?

Short Answer

Expert verified

(a) The wavelength from 600nm to 700 nmwill be absent in the visible range.

(b) The slit separation for third order wavelength decreases.

(c) The least change needed in separation is 200nm.

Step by step solution

01

Identification of given data

The wavelength of light is λ4=450nm

The order of fringe for fourth order is m4=4

The angle for the fourth order fringe is θ=90°

The order of fringe for third order is m3=3

The phase difference of fringe pattern varies with the path difference. For minimum phase difference path difference should be minimum and vice versa.

02

Step 2(a): Determination of range of wavelengths not present in third order wavelength

The separation between slits is given as:

dsinθ=m4λ4

Substitute all the values in the above equation.

dsin90°=4450nmd=1800nm

The lowest wavelength absent in visible range is given as:

dsinθ=m3λ3

Substitute all the values in equation.

1800nmsin90°=3λ3λ3=600nm

The wavelength from 600nm to 700 nm will be absent in the visible range.

Therefore, the wavelength from 600nm to 700 nmwill be absent in the visible range.

03

Step 3(b): Whether slit separation increases or decreases

The slit separation varies inversely with wavelength of light. The wavelength of light for third order fringe increases so slit separation for third order wavelength of light decreases.

Therefore, the slit separation for third order wavelength decreases.

04

Step 4(c): Determination of path difference for maximum possible phase difference

The separation for lowest wavelength of visible range is given as:

dlsinθ=m4λl

Here, λl is the lowest wavelength of visible range and its value is 400nm.

Substitute all the values in equation.

dlsin90°=4400nmdl=1600nm

The least change needed is given as:

D=d-dl

Substitute all the values in equation.

D=1800nm-1600nmD=200nm

Therefore, the least change needed in separation is 200nm.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

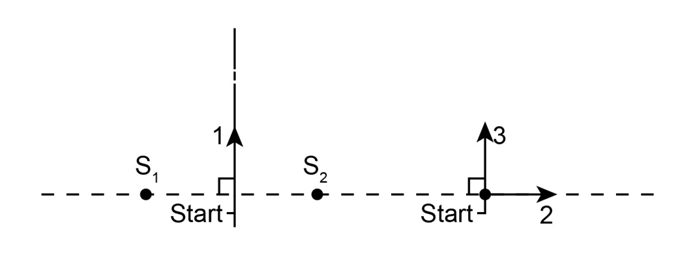

Figure 35-25 shows two sources s1 and s2 that emit radio waves of wavelengthλin all directions. The sources are exactly in phase and are separated by a distance equal to 1.5λ . The vertical broken line is the perpendicular bisector of the distance between the sources.

(a) If we start at the indicated start point and travel along path 1, does the interference produce a maximum all along the path, a minimum all along the path, or alternating maxima and minima? Repeat for

(b) path 2 (along an axis through the sources) and

(c) path 3 (along a perpendicular to that axis).

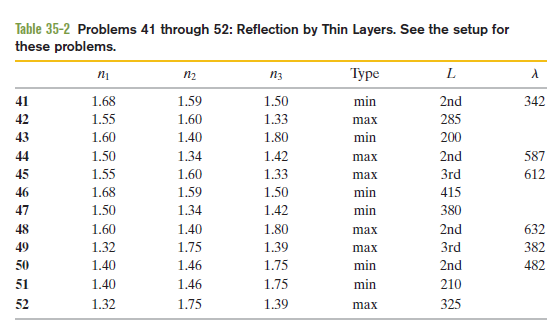

Reflection by thin layers. In Fig. 35-42, light is incident perpendicularly on a thin layer of material 2 that lies between (thicker) materials 1 and 3. (The rays are tilted only for clarity.) The waves of rays r1and r2interfere, and here we consider the type of interference to be either maximum (max) or minimum (min). For this situation, each problem in Table 35- 2 refers to the indexes of refraction n1, n2andn3, the type of interference, the thin-layer thickness Lin nanometres, and the wavelength λin nanometres of the light as measured in air. Where λis missing, give the wavelength that is in the visible range. Where Lis missing, give the second least thickness or the third least thickness as indicated.

The rhinestones in costume jewellery are glass with index of refraction 1.50. To make them more reflective, they are often coated with a layer of silicon monoxide of index of refraction 2.00.What is the minimum coating thickness needed to ensure that light of wavelength 560nm and of perpendicular incidence will be reflected from the two surfaces of the coating with fully constructive interference?

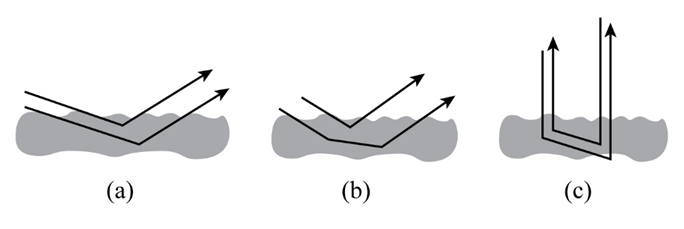

Figure 35-30 shows three situations in which two rays of sunlight penetrate slightly into and then scatter out of lunar soil. Assume that the rays are initially in phase. In which situation are the associated waves most likely to end up in phase? (Just as the Moon becomes full, its brightness suddenly peaks, becoming 25% greater than its brightness on the nights before and after, because at full Moon we intercept light waves that are scattered by lunar soil back toward the Sun and undergo constructive interference at our eyes. Before astronauts first landed on the Moon, NASA was concerned that backscatter of sunlight from the soil might blind the lunar astronauts if they did not have proper viewing shields on their helmets.)
