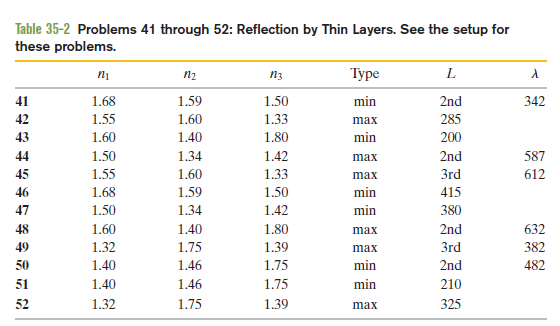

Reflection by thin layers. In Fig. 35-42, light is incident perpendicularly on a thin layer of material 2 that lies between (thicker) materials 1 and 3. (The rays are tilted only for clarity.) The waves of rays r1and r2interfere, and here we consider the type of interference to be either maximum (max) or minimum (min). For this situation, each problem in Table 35- 2 refers to the indexes of refraction n1, n2andn3, the type of interference, the thin-layer thickness Lin nanometres, and the wavelength λin nanometres of the light as measured in air. Where λis missing, give the wavelength that is in the visible range. Where Lis missing, give the second least thickness or the third least thickness as indicated.

Short Answer

Expert verified

The wavelength of reflected light is560nm

Step by step solution

01

Given Data

  • The refractive index of first medium is n1=1.60.
  • The refractive index of the thin film isn2=1.40
  • The refractive index of the third mediumn3=1.80
  • The thickness of the layer is L=200nm.
02

Interference in thin films

Bright colours reflected from thin oil on water and soap bubbles are a consequence of light interference. Due to the constructive interference of light reflected from the front and back surfaces of the thin film, these bright colours can be seen. For a perpendicular incident beam, the maximum intensity of light from the thin film satisfies the condition:

2L=m+12λn2m=0,1,2,...(Maxima—bright film in the air)

where λis the wavelength of the light in air, Lis its thickness, andn2 is the film’s refractiveindex.

03

Determining the wavelength of light

Here, in this case, light travels in medium withn1=1.60 and incident on the film whose refractive index isn2=1.40 and the thickness of the layer isL=200nm the reflected light has no phase change. And then, the reftracted light gets reflected of the third surfacen3=1.80 while travelling through the film. This results in180° phase change as the light is reflecting of a denser medium. As a result, the condition for destructive interference or minimum intensity is

2L=mλn2 (destructive)

The minimum intensity is observed for wavelength,

role="math" localid="1663143094524" m=1;λ=2Ln2m=2200nm1.401=560nm

As 560nmis in the visible range, hence the wavelength of the reflected light be 560nm.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A double-slit arrangement produces interference fringes for sodium light (λ=589nm)that have an angular separation of 3.50×10-3rad. For what wavelength would the angular separation be 10% greater?

A plane wave of monochromatic light is incident normally on a uniform thin film of oil that covers a glass plate. The wavelength of the source can be varied continuously. Fully destructive interference of the reflected light is observed for wavelengths of 500nmand 700nmand for no wavelengths in between. If the index of refraction of the oil is 1.30and that of the glass is 1.50, find the thickness of the oil film.

The reflection of perpendicularly incident white light by a soap film in the air has an interference maximum at 600nmand a minimum at role="math" localid="1663024492960" 450nm, with no minimum in between. If n=1.33for the film, what is the film thickness, assumed uniform?

Figure 35-26 shows two rays of light, of wavelength 600nm, that reflectfrom glass surfaces separated by 150nm. The rays are initially in phase.

(a) What is the path length difference of the rays?

(b) When they have cleared the reflection region, are the rays exactly in phase, exactly out of phase, or in some intermediate state?

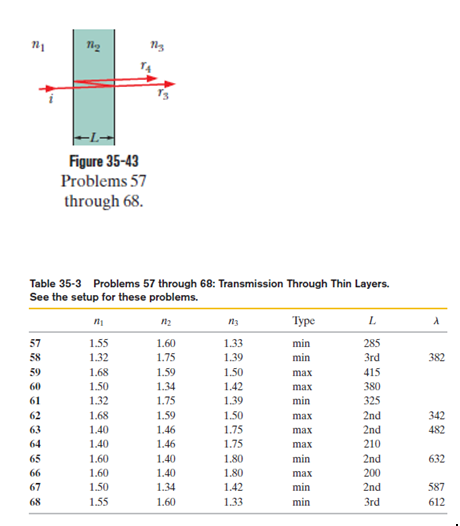

Transmission through thin layers. In Fig. 35-43, light is incident perpendicularly on a thin layer of material 2 that lies between (thicker) materials 1 and 3. (The rays are tilted only for clarity.) Part of the light ends up in material 3 as ray r3(the light does not reflect inside material 2) and r4(the light reflects twice inside material 2). The waves of r3andr4interfere, and here we consider the type of interference to be either maximum (max) or minimum (min). For this situation, each problem in Table 35-3 refers to the indexes of refractionn1,n2andn3the type of interference, the thin-layer thicknessLin nanometers, and the wavelengthλin nanometers of the light as measured in air. Whereλis missing, give the wavelength that is in the visible range. WhereLis missing, give the second least thickness or the third least thickness as indicated.
