Chapter 35: Q8Q (page 1073)

Figure 35-26 shows two rays of light, of wavelength 600nm, that reflectfrom glass surfaces separated by 150nm. The rays are initially in phase.

(a) What is the path length difference of the rays?

(b) When they have cleared the reflection region, are the rays exactly in phase, exactly out of phase, or in some intermediate state?

Short Answer

Expert verified

(a) The path length difference between the two waves is 300nm.

(b) When the rays have cleared the region, they are exactly out of phase.

Step by step solution

01

Given data:

The wavelength of the two rays is 位=600nm
.

The thickness of the glass surface is d=300nm.

02

Relation between phase difference and path difference:

The phase difference between two waves of a wavelength 位 having the path difference x is蠒=2蟺位x

03

(a) Determining the path difference of the rays:

The upper wave travels a distance twice the thickness greater than the lower wave. Thus, the path difference isx=2脳150nm=300

Therefore, the path difference is 300nm.

04

Determining the phase difference of the rays:

From equation (1), the phase difference between the two waves is,蠒=2蟺600nm脳300nm=2蟺2=蟺

Hence, the phase difference is 蟺
.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

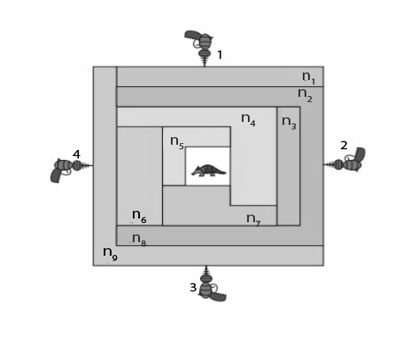

The figure shows the design of a Texas arcade game, Four laser pistols are pointed toward the center of an array of plastic layers where a clay armadillo is the target. The indexes of refraction of the layers are n1=1.55,n2=1.70,n3=1.45,n4=1.60,n5=1.45,n6=1.61,n7=1.59,n8=1.70and n9=1.60. The layer thicknesses are either 2.00 mm or 4.00 mm, as drawn. What is the travel time through the layers for the laser burst from (a) pistol 1, (b) pistol 2, (c) pistol 3, and (d) pistol 4? (e) If the pistols are fired simultaneously, which laser burst hits the target first?

The wavelength of yellow sodium light in air is 589 nm. (a) What is its frequency? (b) What is its wavelength in glass whose index of refraction is 1.52? (c) From the results of (a) and (b), find its speed in this glass.

In a double-slit arrangement the slits are separated by a distance equal to 100 times the wavelength of the light passing through the slits. (a)What is the angular separation in radians between the central maximum and an adjacent maximum? (b) What is the distance between these maxima on a screen 50 cm from the slits?

In Fig. 35-37, two radio frequency point sources S1and S2, separated by distance d=2.0m, are radiating in phase with 位=0.50m. A detector moves in a large circular path around the two sources in a plane containing them. How many maxima does it detect?

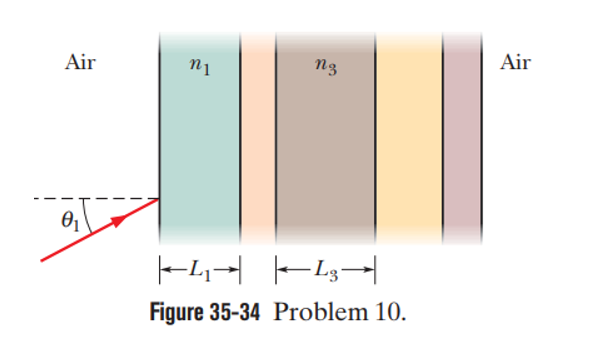

In Fig. 35-34, a light ray is an incident at angle 胃1=50掳on a series of five transparent layers with parallel boundaries. For layers 1 and 3 , L1=20渭m , L2=25渭m, n1=1.6and n3=1.45. (a) At what angle does the light emerge back into air at the right? (b) How much time does the light take to travel through layer 3?
