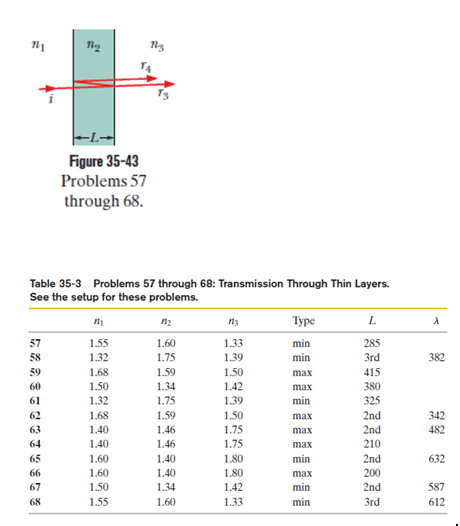

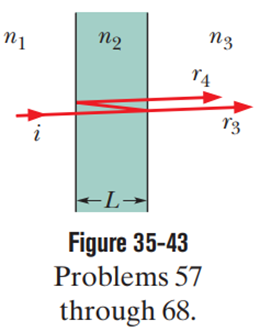

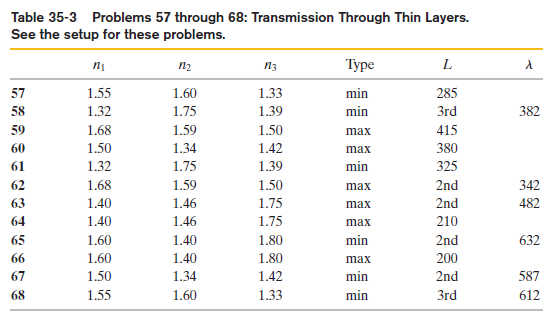

Transmission through thin layers. In Fig. 35-43, light is incident perpendicularly on a thin layer of material 2 that lies between (thicker) materials 1 and 3. (The rays are tilted only for clarity.) Part of the light ends up in material 3 as ray r3(the light does not reflect inside material 2) and r4(the light reflects twice inside material 2). The waves of and interfere,r3and r4here we consider the type of interference to be either maximum (max) or minimum (min). For this situation, each problem in Table 35-3 refers to the indexes of refraction n1,n2and n3the type of interference, the thin-layer thickness Lin nanometers, and the wavelength λin nanometers of the light as measured in air. Where λis missing, give the wavelength that is in the visible range. Where Lis missing, give the second least thickness or the third least thickness as indicated.

Short Answer

Expert verified

The wavelength with minimum intensity of transmitted light is 680nm.

Step by step solution

01

Given Data.

  • The refractive index of first medium isn1=1.55.
  • The refractive index of the thin film isn2=1.60
  • The refractive index of the third mediumn3=1.33
  • The thickness of the layer is L=285nm.
02

Interference of light through thin films.

Light that is incident normally on thin films is reflected from both the front and back surfaces, causing interference of the reflected light. When constructive interference happens, it produces bright reflected light, and when entirely destructive interference occurs, it produces a dark region.

The interference of the transmitted rays is similar to the interference of the reflection of light. Here in this case, the phase difference between the transmitted rays is zero. Therefore, the condition for destructive interference is

2L=m+12λn2λ=4Ln22m+1

Calculating the wavelength for first few orders number,

m=0;λ1=4285nm1.6020+1=1824nmm=1;λ2=4285nm1.6021+1=608nmm=2;λ3=4285nm1.6022+1=365nm


As 680nmlies in visible range, hence the wavelength with minimum intensity of transmitted light is 680nm.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Transmission through thin layers. In Fig. 35-43, light is incident perpendicularly on a thin layer of material 2 that lies between (thicker) materials 1 and 3. (The rays are tilted only for clarity.) Part of the light ends up in material 3 as ray r3(the light does not reflect inside material 2) and r4(the light reflects twice inside material 2). The waves of r3and r4interfere, and here we consider the type of interference to be either maximum (max) or minimum (min). For this situation, each problem in Table 35-3 refers to the indexes of refraction n1,n2and n3the type of interference, the thin-layer thickness Lin nanometers, and the wavelength λin nanometers of the light as measured in air. Where λis missing, give the wavelength that is in the visible range. Where Lis missing, give the second least thickness or the third least thickness as indicated.

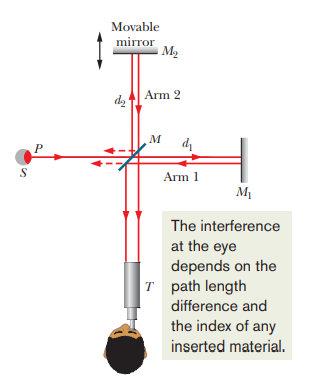

If mirror M2in a Michelson interferometer (fig 35-21) is moved through 0.233mm, a shift of 792 bright fringes occurs. What is the wavelength of the light producing the fringe pattern?

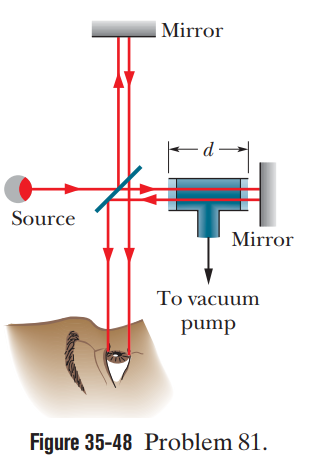

In Fig. 35-48, an airtight chamber of length d=5.0cm is placed in one of the arms of a Michelson interferometer. (The glass window on each end of the chamber has negligible thickness.) Light of wavelength l λ=500nm is used. Evacuating the air from the chamber causes a shift of 60 bright fringes. From these data and to six significant figures, find the index of refraction of air at atmospheric pressure.

Three electromagnetic waves travel through a certain point P along an x-axis. They are polarized parallel to a y-axis, with the following variations in their amplitudes. Find their resultant at P.

E1=(10.00μ³Õ/m)sin[2×1014t]E2=(5.00μ³Õ/m)sin[2×1014t+45°]E3=(5.00μ³Õ/m)sin[2×1014t-45°]

In the double-slit experiment of Fig. 35-10, the viewing screen is at distance D=4.00m, point P lies at distance role="math" localid="1663143982922" y=20.5cmfrom the center of the pattern, the slit separation d is 4.50mm, and the wavelength λis 580 nm. (a) Determine where point P is in the interference pattern by giving the maximum or minimum on which it lies, or the maximum and minimum between which it lies. (b) What is the ratio of the intensitylPat point P to the intensitylcen at the centerof the pattern?
