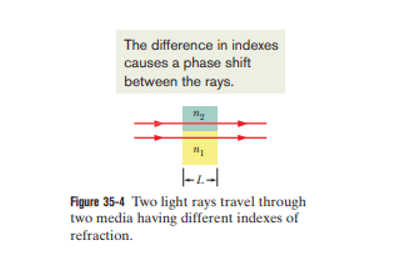

In Fig. 35-4, assume that the two light waves, of wavelength 620nm in air, are initially out of phase by π rad. The indexes of refraction of the media are n1=1.45 andn2=1.65 . What are the (a) smallest and (b) second smallest value of Lthat will put the waves exactly in phase once they pass through the two media?

Short Answer

Expert verified

(a) The smallest value of Lis 1.55×10-6m .

(b) The second smallest value of L is 4.65×10-6m.

Step by step solution

01

Write the given data from the question:

The wavelength in air,λ=620nm

The phase difference,Δϕ=π

The refractive index of medium 1, n1=1.45

The refractive index of medium 2, n2=1.65

02

Determine the formulas to calculate the smallest and second smallest value of L:

The expression to calculate the phase difference is given as follows.

Δϕ=2πL(n2λ-n1λ)

L=λΔϕ2π(n2-n1) ......(1)

The expression to calculate the second smallest value of Lis given as follows.

L=3λΔϕ2π(n2-n1)
03

(a) Calculate the smallest value of L  :

Calculate the smallest value of the L .

Substitute the given values into equation (1).

L=π×620×10-92π1.65-1.45=310×10-90.20=1550×10-9=1.55×10-6m

Hence, the smallest value of L is 1.55×10-6m

04

(b) Calculate the second smallest value of L  :

Calculate the smallest value of theL.

Substitute the given values into equation (1).

L=3π×620×10-92π1.65-1.45=930×10-90.20=4650×10-9=4.65×10-6m

Hence the second smallest value of L is 4.65×10-6m.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

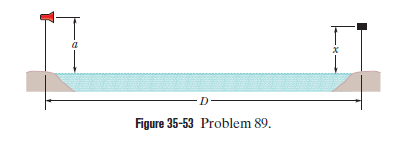

In Fig 35-53, a microwave transmitter at height a above the water level of a wide lake transmits microwaves of wavelength λtoward a receiver on the opposite shore, a distance x above the water level. The microwaves reflecting from the water interfere with the microwaves arriving directly from the transmitter. Assuming that the lake width D is much greater than a and x, and that λ≥a, find an expression that gives the values of x for which the signal at the receiver is maximum. (Hint: Does the reflection cause a phase change?).

In the double-slit experiment of Fig. 35-10, the viewing screen is at distance D=4.00m, point P lies at distance role="math" localid="1663143982922" y=20.5cmfrom the center of the pattern, the slit separation d is 4.50mm, and the wavelength λis 580 nm. (a) Determine where point P is in the interference pattern by giving the maximum or minimum on which it lies, or the maximum and minimum between which it lies. (b) What is the ratio of the intensitylPat point P to the intensitylcen at the centerof the pattern?

A Newton’s rings apparatus is to be used to determine the radius of curvature of a lens . The radii of the nth and (n+20th)bright rings are found to be 0.162cm and 0.368cm, respectively, in light of wavelength 546nm. Calculate the radius of curvature of the lower surface of the lens.

In Fig. 35-4, assume that two waves of light in air, of wavelength 400nm, are initially in phase. One travels through a glass layer of index of refraction n1=1.60and thickness L. The other travels through an equally thick plastic layer of index of refraction n2=1.50. (a) What is the smallest value Lshould have if the waves are to end up with a phase difference of 5.65 rad? (b) If the waves arrive at some common point with the same amplitude, is their interference fully constructive, fully destructive, intermediate but closer to fully constructive, or intermediate but closer to fully destructive?

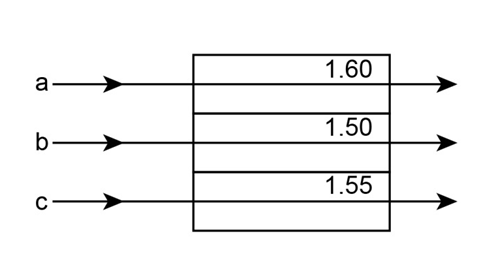

In Fig. 35-23, three pulses of light— a, b, and c—of the same wavelength are sent through layers of plastic having the given indexes of refraction and along the paths indicated. Rank the pulses according to their travel time through the plastic layers, greatest first.
