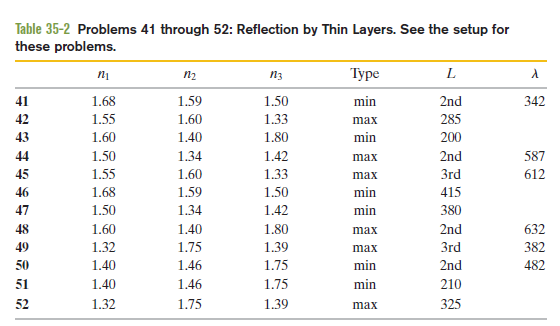

Reflection by thin layers. In Fig. 35-42, light is incident perpendicularly on a thin layer of material 2 that lies between (thicker) materials 1 and 3. (The rays are tilted only for clarity.) The waves of rays r1andlocalid="1663664382127" r2interfere, and here we consider the type of interference to be either maximum (max) or minimum (min). For this situation, each problem in Table 35- 2 refers to the indexes of refractionn1,n2, andn3, the type of interference, the thin-layer thicknessLin nanometres, and the wavelength λ in nanometres of the light as measured in air. Where λis missing, give the wavelength that is in the visible range. WhereLis missing, give the second least thickness or the third least thickness as indicated.

Short Answer

Expert verified

The 3rd least thickness of the thin layer is 273 nm.

Step by step solution

01

Interference in thin films

Bright colours reflected from thin oil on water and soap bubbles are a consequence of light interference. Due to the constructive interference of light reflected from the front and back surfaces of the thin film, these bright colours can be seen. For a perpendicular incident beam, the maximum intensity of light from the thin film satisfies the condition:

2L=m+12λn2 â¶Ä‰â¶Ä‰m=0, 1, 2,...(Maxima—bright film in the air)

2L=mλn2 â¶Ä‰â¶Ä‰m=1, 2, 3,..(Minima)

where λis the wavelength of the light in air,L is its thickness, andn2 is the film’s refractive index.

02

Determine the 3rd least thickness of the thin layer

Here, in this case, light travels in a medium withn1=1.32 and incident on the thin layer whose refractive index isn2=1.75 and the reflected light has180° phase change as the light is reflected off the denser medium. And then, the refracted light gets reflected of the back surfacen3=1.39 while traveling through the film. This results in no phase change. The phase difference betweenr1 andr2 is 180°. As a result, the condition for constructive interference or maximum intensity is

2L=m+12λn2 (Constructive)

The 3rd least (m=2) thickness of the thin layer is

L=2+12382 nm2(1.75)=273 nm

Hence the 3rd least thickness of the thin layer is 273 nm.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In Fig. 35-45, a broad beam of light of wavelength 683 nm is sent directly downward through the top plate of a pair of glass plates. The plates are 120 mm long, touch at the left end, and are separated by 48.0μm at the right end. The air between the plates acts as a thin film. How many bright fringes will be seen by an observer looking down through the top plate?

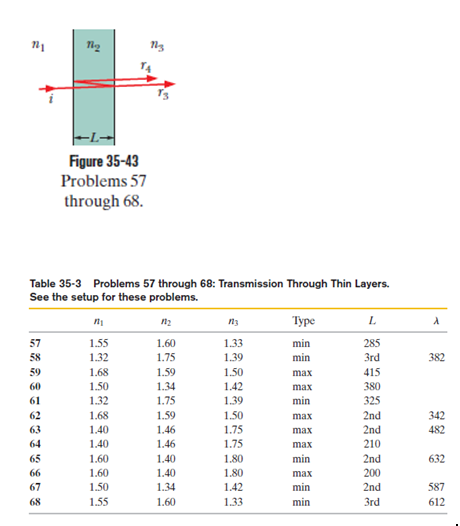

Transmission through thin layers. In Fig. 35-43, light is incident perpendicularly on a thin layer of material 2 that lies between (thicker) materials 1 and 3. (The rays are tilted only for clarity.) Part of the light ends up in material 3 as ray r3 (the light does not reflect inside material 2) and r4(the light reflects twice inside material 2). The waves of r3 and r4 interfere, and here we consider the type of interference to be either maximum (max) or minimum (min). For this situation, each problem in Table 35-3 refers to the indexes of refraction n1, n2, and n3, the type of interference, the thin-layer thickness L in nanometers, and the wavelength λ in nanometers of the light as measured in air. Where λ is missing, give the wavelength that is in the visible range. Where Lis missing, give the second least thickness or the third least thickness as indicated.

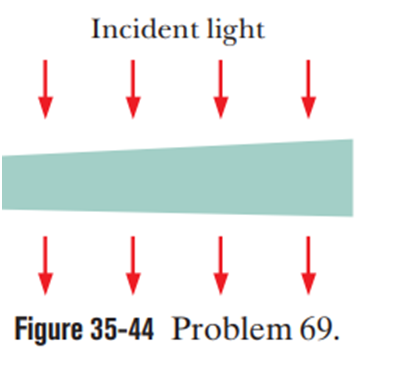

In Fig. 35-44, a broad beam of light of wavelength 630 nm is incident at 90° on a thin, wedge-shaped film with index of refraction 1.50. Transmission gives 10 bright and 9 dark fringes along the film’s length. What is the left-to-right change in film thickness?
