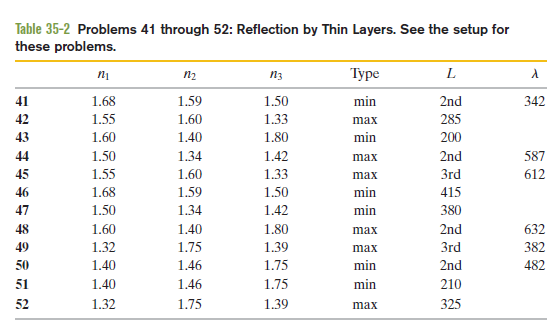

Reflection by thin layers. In Fig. 35-42, light is incident perpendicularly on a thin layer of material 2 that lies between (thicker) materials 1 and 3. (The rays are tilted only for clarity.) The waves of rays r1and r2interfere, and here we consider the type of interference to be either maximum (max) or minimum (min). For this situation, each problem in Table 35- 2 refers to the indexes of refractionn1,n2, andn3, the type of interference, the thin-layer thickness Lin nanometres, and the wavelengthλin nanometres of the light as measured in air. Whereλis missing, give the wavelength that is in the visible range. WhereLis missing, give the second least thickness or the third least thickness as indicated.

Short Answer

Expert verified

The 2nd least thickness of thin layer 339 nm.

Step by step solution

01

Interference in thin films

Bright colours reflected from thin oil on water and soap bubbles are a consequence of light interference. Due to the constructive interference of light reflected from the front and back surfaces of the thin film, these bright colours can be seen. For a perpendicular incident beam, the maximum intensity of light from the thin film satisfies the condition:

2L=m+12λn2 â¶Ä‰â¶Ä‰m=0, 1, 2,...(Maxima—bright film in the air)

2L=mλn2 â¶Ä‰â¶Ä‰m=1, 2, 3,..(Minima)

Whereλ is the wavelength of the light in air, Lis its thickness, andn2 is the film’s refractive index.

02

Determine the 2nd least thickness of the thin layer

Here, in this case, light travels in a medium withn1=1.60 and incident on the thin layer whose refractive index isn2=1.40 and the reflected light has no phase change as the light is reflected off the rarer medium. And then, the refracted light gets reflected of the third surfacen3=1.80 while traveling through the film. This results result in 180°phase change. The phase difference betweenr1 andr2 is180° . As a result, the condition for constructive interference or maximum intensity is

2L=m+12λn2 (Constructive)

The thickness of the thin layer is

L=1+12632 nm2(1.40)=339 nm

Hence the 2nd least thickness of the thin layer is 339 nm.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In two experiments, light is to be sent along the two paths shown in Fig. 35-35 by reflecting it from the various flat surfaces shown. In the first experiment, rays 1 and2 are initially in phase and have a wavelength of 620.0nm. In the second experiment, rays 1 and2 are initially in phase and have a wavelength of 496.0nm . What least value of distance L is required such that the 620.0nmwaves emerge from the region exactly in phase but the 496.0nmwaves emerge exactly out of phase?

In Fig. 35-45, a broad beam of light of wavelength 683 nm is sent directly downward through the top plate of a pair of glass plates. The plates are 120 mm long, touch at the left end, and are separated by 48.0μm at the right end. The air between the plates acts as a thin film. How many bright fringes will be seen by an observer looking down through the top plate?

The wavelength of yellow sodium light in air is 589 nm. (a) What is its frequency? (b) What is its wavelength in glass whose index of refraction is 1.52? (c) From the results of (a) and (b), find its speed in this glass.

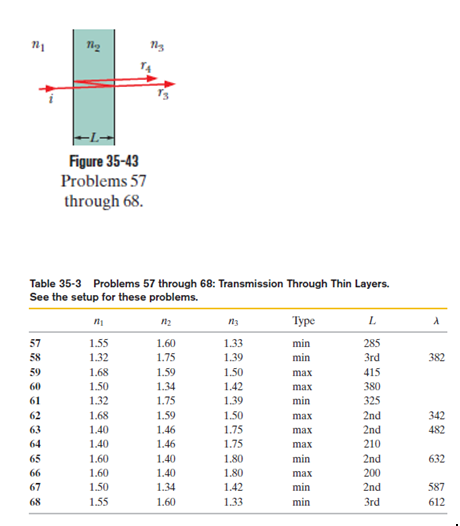

Transmission through thin layers. In Fig. 35-43, light is incident perpendicularly on a thin layer of material 2 that lies between (thicker) materials 1 and 3. (The rays are tilted only for clarity.) Part of the light ends up in material 3 as ray r3 (the light does not reflect inside material 2) and r4(the light reflects twice inside material 2). The waves of r3 and r4 interfere, and here we consider the type of interference to be either maximum (max) or minimum (min). For this situation, each problem in Table 35-3 refers to the indexes of refraction n1, n2, and n3, the type of interference, the thin-layer thickness L in nanometers, and the wavelength λ in nanometers of the light as measured in air. Where λ is missing, give the wavelength that is in the visible range. Where Lis missing, give the second least thickness or the third least thickness as indicated.
