Light of wavelength 624 nm is incident perpendicularly on a soap film (n = 1.33) suspended in air. What are the (a) least and (b) second least thicknesses of the film for which the reflections from the film undergo fully constructive interference?

Short Answer

Expert verified

The least thickness is 117 nm, and the 2nd least thickness is 352 nm.

Step by step solution

01

Interference in thin films

Bright colors reflected from thin oil on water and soap bubbles are a consequence of light interference. Due to the constructive interference of light reflected from the front and back surfaces of the thin film, these bright colors can be seen. For a perpendicular incident beam, the maximum intensity of light from the thin film satisfies the condition:

2L=(m+12)λn2 â¶Ä‰â¶Ä‰m=0, 1, 2,...(Maxima—bright film in the air)

where λ is the wavelength of the light in air, L is its thickness, and n2 is the film’s refraction index.

02

Thickness of the soap film

The least and the 2nd least thickness are associated with m=0, 1the order of maximum intensity. The thickness corresponding to this order of maxima is

For m=0;

Lo=m+12λ2n2=0+12624 nm2(1.33)=117 nm

For m=1;

L1=m+12λ2n2=1+12624 nm2(1.33)=352 nm

Thus, the least thickness is 117 nm, and the 2nd least thickness is 352 nm.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

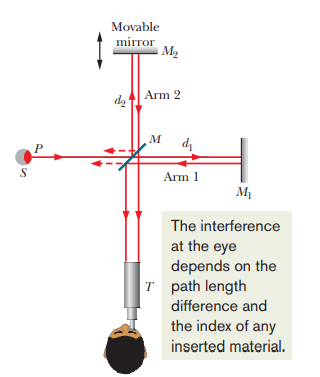

If mirror M2in a Michelson interferometer (fig 35-21) is moved through 0.233mm, a shift of 792 bright fringes occurs. What is the wavelength of the light producing the fringe pattern?

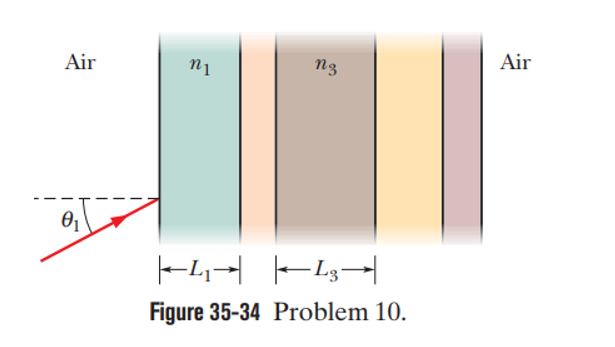

In Fig. 35-34, a light ray is an incident at angle θ1=50°on a series of five transparent layers with parallel boundaries. For layers 1 and 3 , L1=20μm , L2=25μm, n1=1.6and n3=1.45. (a) At what angle does the light emerge back into air at the right? (b) How much time does the light take to travel through layer 3?

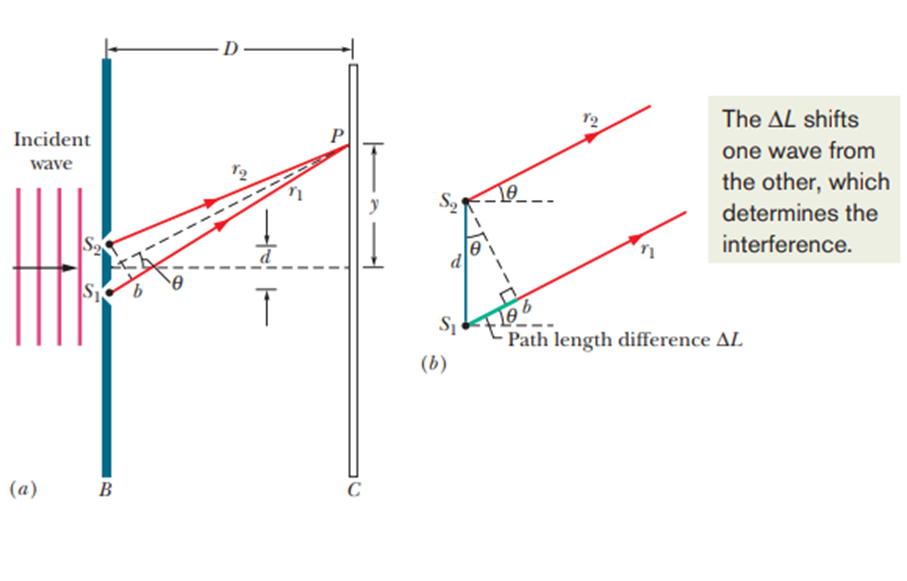

In the double-slit experiment of Fig. 35-10, the electric fields of the waves arriving at point P are given by

E1=(2.00μ³Õ/m)sin[1.26×1015t]E2=(2.00μ³Õ/m)sin[1.26×1015t+39.6rad]

Where, timetis in seconds. (a) What is the amplitude of the resultant electric field at point P ? (b) What is the ratio of the intensity IPat point P to the intensity Icenat the center of the interference pattern? (c) Describe where point P is in the interference pattern by giving the maximum or minimum on which it lies, or the maximum and minimum between which it lies. In a phasor diagram of the electric fields, (d) at what rate would the phasors rotate around the origin and (e) what is the angle between the phasors?

The rhinestones in costume jewellery are glass with index of refraction 1.50. To make them more reflective, they are often coated with a layer of silicon monoxide of index of refraction 2.00.What is the minimum coating thickness needed to ensure that light of wavelength 560nm and of perpendicular incidence will be reflected from the two surfaces of the coating with fully constructive interference?

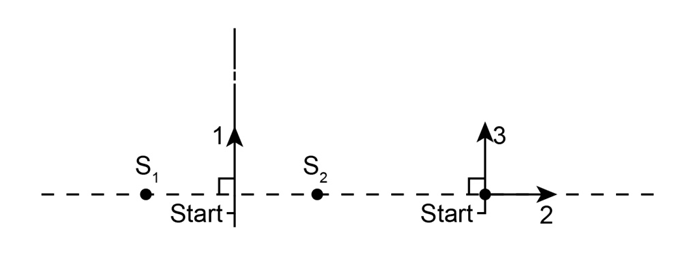

Figure 35-25 shows two sources s1 and s2 that emit radio waves of wavelengthλin all directions. The sources are exactly in phase and are separated by a distance equal to 1.5λ . The vertical broken line is the perpendicular bisector of the distance between the sources.

(a) If we start at the indicated start point and travel along path 1, does the interference produce a maximum all along the path, a minimum all along the path, or alternating maxima and minima? Repeat for

(b) path 2 (along an axis through the sources) and

(c) path 3 (along a perpendicular to that axis).
