In Fig. 35-4, assume that two waves of light in air, of wavelength 400nm, are initially in phase. One travels through a glass layer of index of refraction n1=1.60and thickness L. The other travels through an equally thick plastic layer of index of refraction n2=1.50. (a) What is the smallest value Lshould have if the waves are to end up with a phase difference of 5.65 rad? (b) If the waves arrive at some common point with the same amplitude, is their interference fully constructive, fully destructive, intermediate but closer to fully constructive, or intermediate but closer to fully destructive?

Short Answer

Expert verified
  1. The smallest value ofL is3.60×10-6m .
  2. The interference is closer to the completely constructive interference.

Step by step solution

01

Given information

  1. The wavelength of two rays of light is,λ=400nm .
  2. The index of refraction of glass layer is, n1=1.60.
  3. The thickness of glass layer is, L.
  4. The index of refraction of thick plastic layer is, n2=1.50.
  5. The phase difference between two rays is, ϕ1-ϕ2=5.65rad.
02

Phase difference

The value of the ‘phase difference’ between two different light waves changeswhen the waves travelthrough different mediums having different values of indexes of refraction.

For two mediums having index of refraction n1>n2, the value of the phase difference between two light waves is given by,

ϕ1-ϕ2=n1λ1-n2λ2L

Here,ϕ is the wave phase, λis the wavelength and Lis the medium length.

03

(a) The smallest value of glass thickness

We take the phases of both waves to be zero at the front surfaces of the layers.

The phase of the first wave at the back surface of the glass is given by,

The formula for the phase difference ϕ1-ϕ2between two waves passing through two different medium shaving same medium length is given by,

ϕ1-ϕ2=2πλ1-2πλ2ϕ1-ϕ2=2π1λ1-1λ2

Putting wavelengths for each wave,λ1=λairn1 and λ2=λairn2,

ϕ1-ϕ2=2π1λairn1-1λairn2Lϕ1-ϕ2=2πn1λair-n2λairLϕ1-ϕ2=2πλairn1-n2LL=ϕ1-ϕ2λair2πn1-n2

Putting values, λair=400×10-9m

L=5.65×400×10-9m2π1.60-1.50L=3596.901×10-9mL=3.60×10-6m

Hence, the smallest value of Lis 3.60×10-6m.

04

(b) Type of interference

For the completely constructive interference, the phase difference of waves should be in the integer multiple of 2πradand for the completely destructive, the phase difference of waves should be equal to πrad.

The value of the phase difference between two rays of light is,

Ï€<5.65rad<2Ï€

So, the interference is closer to the completely constructive than to completely destructive.

Hence, interference is closer to the completely constructive interference.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In Fig. 35-45, a broad beam of light of wavelength 683 nm is sent directly downward through the top plate of a pair of glass plates. The plates are 120 mm long, touch at the left end, and are separated by 48.0μm at the right end. The air between the plates acts as a thin film. How many bright fringes will be seen by an observer looking down through the top plate?

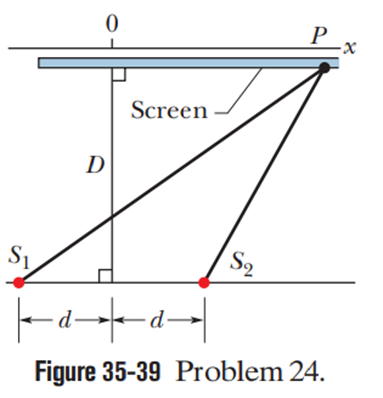

In Fig. 35-39, two isotropic point sources S1 and S2 emit light in phase at wavelength λ and at the same amplitude. The sources are separated by distance 2d=6λ. They lie on an axis that is parallel to an x axis, which runs along a viewing screen at distance D=20.0λ. The origin lies on the perpendicular bisector between the sources. The figure shows two rays reaching point P on the screen, at positionxP. (a) At what value of xPdo the rays have the minimum possible phase difference? (b) What multiple ofλ gives that minimum phase difference? (c) At what value ofxPdo the rays have the maximum possible phase difference? What multiple of λ gives (d) that maximum phase difference and (e) the phase difference when xP=6λ ? (f) When xP=6λ, is the resulting intensity at point P maximum, minimum, intermediate but closer to maximum, or intermediate but closer to minimum?

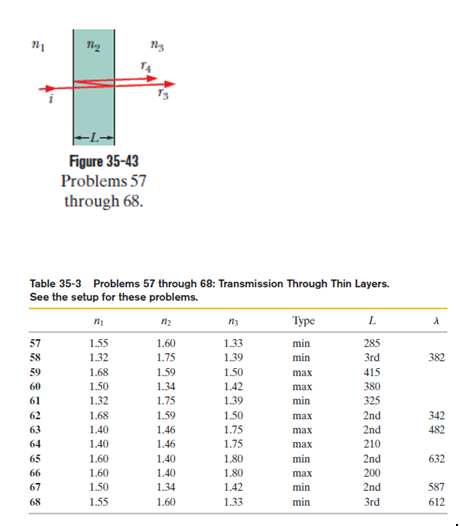

Transmission through thin layers. In Fig. 35-43, light is incident perpendicularly on a thin layer of material 2 that lies between (thicker) materials 1 and 3. (The rays are tilted only for clarity.) Part of the light ends up in material 3 as rayr3(the light does not reflect inside material 2) andr4(the light reflects twice inside material 2). The waves ofr3and r4interfere, and here we consider the type of interference to be either maximum (max) or minimum (min). For this situation, each problem in Table 35-3 refers to the indexes of refraction n1,n2and n3the type of interference, the thin-layer thickness Lin nanometers, and the wavelength λin nanometers of the light as measured in air. Whereλis missing, give the wavelength that is in the visible range. Where Lis missing, give the second least thickness or the third least thickness as indicated.

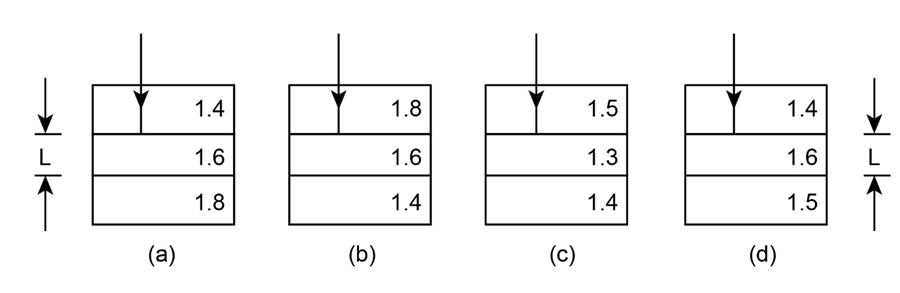

Figure 35-28 shows four situations in which light reflects perpendicularly from a thin film of thickness L sandwiched between much thicker materials. The indexes of refraction are given. In which situations does Eq. 35-36 correspond to the reflections yielding maxima (that is, a bright film).
