Coil 1 hasL1=25mHand N1=100turns. Coil 2 has L2=40mHand N2=200turns. The coils are fixed in place; their mutual inductance M is M=3.0mH. A 6.0mAcurrent in coil 1 is changing at the rate of 4.0 A/s. (a) What magnetic flux φ12links coil 1? (b) what self-induced emf appears in that coil? (c) What magnetic flux φ21links coil 2? (d) what mutually induced emf appears in that coil?

Short Answer

Expert verified

a)ϕ12=1.5×10-6Wb

b) ε=0.1V

c)ϕ21=9×10-8Wb

d)ε=0.012V

Step by step solution

01

Given

L1=25mH=0.025HN1=100L2=40mH=0.040HN2=200M=3.0mH=0.003HI=6.0mA=0.006Adi/dt=4.0A/s

02

Understanding the concept

We have the formula for the magnetic flux induced in the coil, the self-induced emf and the mutually induced emf. So, using these equations and the given data, we can solve this problem.

Formula:

ϕ=LINε=Ldidtϕ=MINε=Mdidt

03

(a) Calculate magnetic flux φ12

We have,

Ï•=LIN

Magnetic flux ϕ12linking to coil 1 will be

ϕ12=L1IN1ϕ12=0.025×0.006100ϕ12=1.5×10-6Wb

04

(b) Calculate self-induced emf appeared in the coil

We have the self – induced emf

ε=Ldidtε=0.025×4.0ε=0.1V

05

(c) Calculate magnetic flux φ21

The flux can be written in terms of the mutual inductance, the current and the number of turns.

Ï•=MIN

Magnetic flux ϕ21linking to coil 2, will be denoted asϕ21.

ϕ21=0.003×0.006200ϕ21=9×10-8Wb

06

(d) Calculate mutually induced emf appears in the coil

EMF induced can be written in terms of the mutual inductance and the rate of change of the current.

ε=Mdidtε=0.003×4.0ε=0.012V

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The current in an RL circuit builds up to one-third of its steady-state value in 5.00 s . Find the inductive time constant.

Figure 30-72a shows a rectangular conducting loop of resistance R=0.020Ω,heightH=1.5cm,andlengthD=2.5cm, height , and length being pulled at constant speed through two regions of uniform magnetic field. Figure 30-72b gives the current i induced in the loop as a function of the position x of the right side of the loop. The vertical axis scale is set by isis=3.0mA. For example, a current equal to is is induced clockwise as the loop enters region 1. What are the (a) magnitude and (b) direction (into or out of the page) of the magnetic field in region 1? What are the (c) magnitude and (d) direction of the magnetic field in region 2?

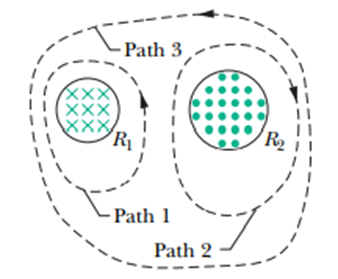

Figure shows two circular regions R1 and R2 with radii r1=20.0cmandr2=30.0cm. In R1 there is a uniform magnetic field of magnitudeB1=50.0mT directed into the page, and in R2 there is a uniform magnetic field of magnitude B1=75.0mTdirected out of the page (ignore fringing). Both fields are decreasing at the rate of 8.50 mT/s. (a) Calculate ∮E→.ds→for path 1.(b) Calculate ∮E→.ds→for path 2.(c) Calculate ∮E→.ds→for path 3.
