The current in an RL circuit builds up to one-third of its steady-state value in 5.00 s . Find the inductive time constant.

Short Answer

Expert verified

τL=12.3s

Step by step solution

01

Given

02

Understanding the concept

im-currentatsteadyvalueIf a constant emf εis introduced into a single-loop circuit containing a resistance Rand an inductance L, the current rises to an equilibrium value ofε/Ras

i=εR(1-e-tτL)

Formulae:

i=εR(1-e-tτL)

Here,ε-emf;R-resistance;t-time;τL-inductivetimeconstantofcircuit

Given:

At t=5.0s,i=im/3

03

Calculate the inductive time constant

We have current in the inductive circuit as\

i=εR(1-e-tτL)

We know that steady state current of RL circuit is

im=ε/R

Now plug in this value in equation:

im3=εR1-e-tτLε3R=εR1-e-tτLe-tτL=1-13=2/3

Hence,

-tτL=In23--0.5τL=-0.4054

Therefore,

τL=12.3s

The inductive time constant is 12.3s

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Figure 30-30 gives the variation with time of the potential difference VRacross a resistor in three circuits wired as shown in Fig. 30-16. The circuits contain the same resistance Rand emf εbut differ in the inductance L . Rank the circuits according to the value of L, greatest first.

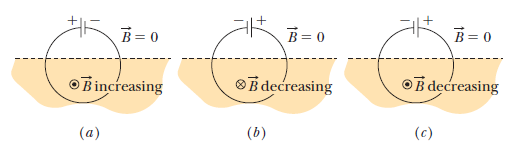

In Figure, the magnetic flux through the loop increases according to the relation φB=6.0t2+7.0t, whereφBis in milli-Weber and t is in seconds. (a) What is the magnitude of the emf induced in the loop when t = 2.0 s? (b) Is the direction of the current through R to the right or left?

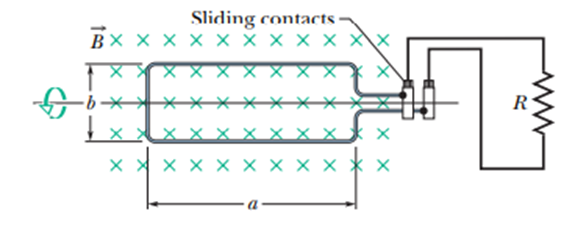

In Figure, a circular loop of wire 10 cmin diameter (seen edge-on) is placed with its normal N→at an angleθ=30°with the direction of a uniform magnetic field B→of magnitude 0.50 T. The loop is then rotated such thatrotates in a cone about the field direction at the rate 100 rev/min; angleremains unchanged during the process. What is the emf induced in the loop?

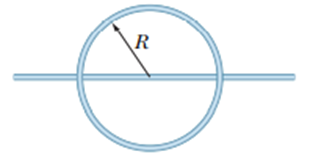

In Figure, a wire forms a closed circular loop, of radius R = 2.0mand resistance4.0Ω. The circle is centered on a long straight wire; at time t = 0, the current in the long straight wire is 5.0 Arightward. Thereafter, the current changes according toi=5.0A-(2.0As2)t2. (The straight wire is insulated; so there is no electrical contact between it and the wire of the loop.) What is the magnitude of the current induced in the loop at times t > 0?

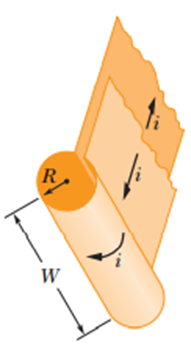

Figure shows a copper strip of width W = 16.0 cmthat has been bent to form a shape that consists of a tube of radius R = 1.8 cmplus two parallel flat extensions. Current i = 35 mAis distributed uniformly across the width so that the tube is effectively a one-turn solenoid. Assume that the magnetic field outside the tube is negligible and the field inside the tube is uniform. (a) What is the magnetic field magnitude inside the tube? (b) What is the inductance of the tube (excluding the flat extensions)?
