Chapter 30: Q51P (page 899)

The current in an RL circuit drops from1.0 A to 10 mA in the first second following removal of the battery from the circuit. If L is10 H, find the resistance R in the circuit.

Short Answer

Expert verified

R=46惟

Step by step solution

01

Given data

  • i0=1A
  • i=10脳10-3A
02

Understanding the concept

When the source of constant emf is removed, the current decays from a valueaccording to,

i=i0e-t蟿L

Formulae:

The current decay in the RL circuit is given by,

i=i0e-t蟿L

The inductive time constant is,

蟿L=LR

03

Calculate the resistance R in the circuit

The current decay inRLcircuit is given by,

i=i0e-t蟿Llnii0=-t蟿L蟿L=-tlnii0

Hence,

LR=-tlnii0

10R=-1ln10脳10-31.0

By solving for R,

R=46惟

Therefore the resistance in the circuit is 46 ohm.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

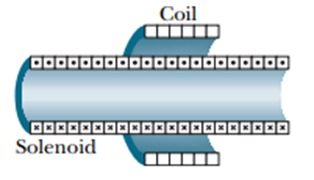

In Figure, a 120 turncoil of radius 1.8 cm and resistance 5.3惟is coaxial with a solenoid of 220 turne/cm and diameter 3.2 cm. The solenoid current drops from 1.5 Ato zero in time interval 鈭�t=25ms. What current is induced in the coil during鈭�t?

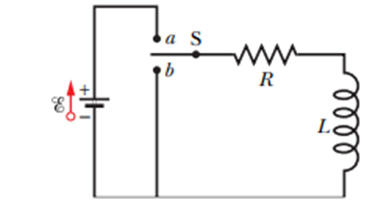

The switch in Figure is closed on a at time t=0. (a) What is the ratio 蔚L/蔚 of the inductor鈥檚 self-induced emf to the battery鈥檚 emf just after t=0? (b) What is the ratio 蔚L/蔚 of the inductor鈥檚 self-induced emf to the battery鈥檚 emf att=2.00蟿L? (c) At what multiple 蟿Lof will 蔚L蔚=0.500?
