Figure 30-24 shows two circuits in which a conducting bar is slid at the same speed vthrough the same uniform magnetic field and along a U-shaped wire. The parallel lengths of the wire are separated by 2Lin circuit 1 and by Lin circuit 2. The current induced in circuit 1 is counter clockwise. (a) Is the magnetic field into or out of the page? (b) Is the current induced in circuit 2 clockwise or counter clockwise? (c) Is the emf induced in circuit 1 larger than, smaller than, or the same as that in circuit 2?

Short Answer

Expert verified

a) The direction of the magnetic field is into the page.

b) The direction of the current induced in circuit 2 is counter clockwise.

c) The emf induced in circuit 1 is larger than that in circuit 2.

Step by step solution

01

Step 1: Given

i) The conducting bar is slid with the same speed v in two circuits.

ii) The circuits are placed in a uniform magnetic field.

iii) The parallel lengths of the wire are separated by 2L in circuit 1 and by L in circuit 2.

iv) The current induced in circuit 1 is counterclockwise.

02

Determining the concept

When the magnetic flux through an area bounded by conducting loop changes, it induces the current in the loop. The induced current produces its own magnetic field and emf. The direction of the induced current and field is decided using Lenz’s law. The magnitude of the induced emf depends upon the area and the magnitude of flux.

Formulae are as follow:

ε=-Nd∅dt

Where,

E = induced emf,

d∅= change in magnetic flux,

N = number of turns in coil,

dt = change in time.

03

(a) Determining the direction of the magnetic field

The current induced in a circuit is such that it opposes the changing magnetic flux. In circuit 1, the induced current is counterclockwise. Hence, the magnetic field must be on the page.

Hence, the direction of the magnetic field is on the page.

04

(b) Determining the direction of the current induced in circuit 2

The magnetic field is perpendicular to the plane of circuit 2. Also, the magnetic flux increases as the bar slides. Hence, the induced current will be counterclockwise.

Hence, the direction of the current induced in circuit 2 is counterclockwise.

05

(c) Determining the emf induced in circuit 1 larger than, smaller than, or the same as that in circuit 2

The induced emf is directly proportional to the separation as below,

V = Blv ,

V∞l,

Hence,the emf induced in circuit 1 is larger than that in circuit 2.

The changing magnetic flux induces the current and the emf in the conductor. The direction of the induced current is decided using Lenz’s law. The magnitude of the emf induced is decided by Faraday’s law.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

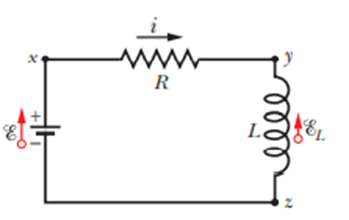

Suppose the emf of the battery in the circuit shown in Figure varies with time t so that the current is given by i(t) = 3.0 +5.0 t , where i is in amperes and t is in seconds. Take R=4.0ΩandL=5.0H, and find an expression for the battery emf as a function of t. (Hint: Apply the loop rule.)

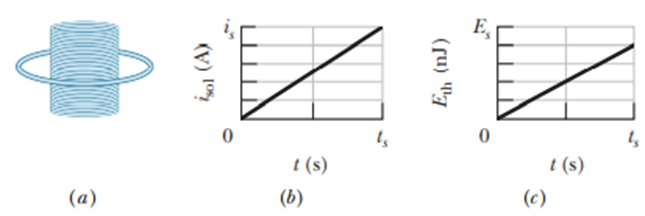

In Figure (a), a circular loop of wire is concentric with a solenoid and lies in a plane perpendicular to the solenoid’s central axis. The loop has radius 6.00 cm.The solenoid has radius 2.00 cm, consists of 8000turnsm, and has a current isol varying with time tas given in Figure (b), where the vertical axis scale is set by is is=1.00Aand the horizontal axis scale is set by ts=2.0s. Figure (c) shows, as a function of time, the energy Eth that is transferred to thermal energy of the loop; the vertical axis scale is set by Es=100.0nJ. What is the loop’s resistance?

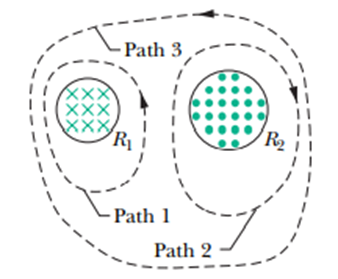

Figure shows two circular regions R1 and R2 with radii r1=20.0cmandr2=30.0cm. In R1 there is a uniform magnetic field of magnitudeB1=50.0mT directed into the page, and in R2 there is a uniform magnetic field of magnitude B1=75.0mTdirected out of the page (ignore fringing). Both fields are decreasing at the rate of 8.50 mT/s. (a) Calculate ∮E→.ds→for path 1.(b) Calculate ∮E→.ds→for path 2.(c) Calculate ∮E→.ds→for path 3.
