Suppose the emf of the battery in the circuit shown in Figure varies with time t so that the current is given by i(t) = 3.0 +5.0 t , where i is in amperes and t is in seconds. Take R=4.0惟andL=5.0H, and find an expression for the battery emf as a function of t. (Hint: Apply the loop rule.)

Short Answer

Expert verified

Expression for the battery emf as a function of t is蔚=20t+42

Step by step solution

01

Given

i) Current isit=3.0+5.0t

ii) Resistance isR=4.0惟

iii) Inductance isL=6.0H

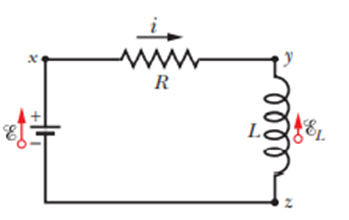

iv) Figure 30-16 is the RL circuit.

02

Understanding the concept

We use the concept of loop rule. Applying loop rule to the circuit, we can write the equation. Plugging the current equation, we can solve for emf.

Formulae:

危V=0

03

Find an expression for the battery emf as a function of t.

By applying the loop rule, we can write

蔚-Ldidt-iR=0蔚=Ldidt+iR

Plugging the given equation of current, we get

蔚=Ld3.0+5.0tdt+3.0+5.0tR蔚=L5.0+3.0+5.0tR

Using the values of inductance and resistance,

蔚=6.05.0+3.0+5.0t4.0蔚=30+12+20t蔚=20t+42

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A coil with an inductance of2.0 H and a resistance of 10惟is suddenly connected to an ideal battery with 蔚=100V. At 0.10 safter the connection is made, (a) what is the rate at which energy is being stored in the magnetic field? (b) what is the rate at which thermal energy is appearing in the resistance? (c) what is the rate at which energy is being delivered by the battery?

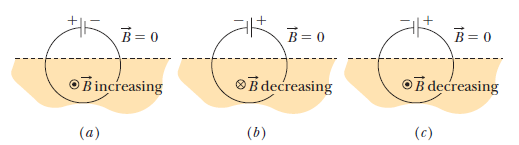

Figure 30-31 shows three situations in which a wire loop lies partially in a magnetic field.The magnitude of the field is either increasing or decreasing, as indicated. In each situation, a battery is part of the loop. In which situations are the induced emf and the battery emf in the same direction along the loop?
