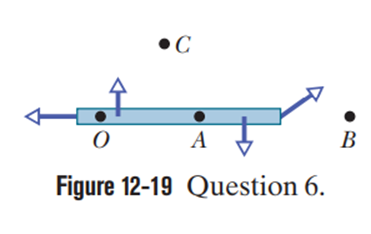

Figure 12-19 shows an overhead view of a uniform stick on which four forces act. Suppose we choose a rotation axis through point O, calculate the torques about that axis due to the forces, and find that these torques balance. Will the torques balance if, instead, the rotation axis is chosen to be at

(a) point A(on the stick),

(b) point B(on line with the stick), or

(c) point C(off to one side of the stick)?

(d) Suppose, instead, that we find that the torques about point Odoes not balance. Is there another point about which the torques will balance?

Short Answer

Expert verified

a) The torques will balance about the rotation axis at point A.

b) The torques will balance about the rotation axis at point B.

c) The torques will balance about the rotation axis at point C.

d) The torque will not be balanced about any other point if it is not balanced about point O.

Step by step solution

01

The given data

The figure for the overhead view of a uniform stick on which four forces act is given.

02

Understanding the concept of torque

From the given condition for the net torque about axis O, we can conclude whether the stick is rotating or not. From this, we can determine whether the torques will balance or not at given points.

Formulae:

The value of the torque at equilibrium, τnet=0 (i)

03

a) Calculation to check whether the torques are balanced at point A

Since the torques about an axis at point O is balanced, the net torque is zero at point O. So, the stick is not rotating. It suggests that the net torque about any axis is zero according to the condition of equation (i).

Therefore the torques will balance about the rotation axis at points A, B and C.

Hence, the torques will be balanced on the stick at point A.

04

b) Calculation to check whether the torques are balanced at point B

From part (a), we can say that the torques will balance in line with the stick at point B.

05

c) Calculation to check whether the torques are balanced at point B

From part (a), we can say that the torques will balance off to one side of the stick at point C.

06

d) Calculation to check whether the torques will balance at any other point

Since torques about an axis at point O does not balance, the net torque is not zero at point O. So, the stick is rotating. It suggests that the net torque about any axis is not equal to zero, hence not in equilibrium according to the condition of equation (i).

Therefore the torques will not balance about the rotation axis at any point.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

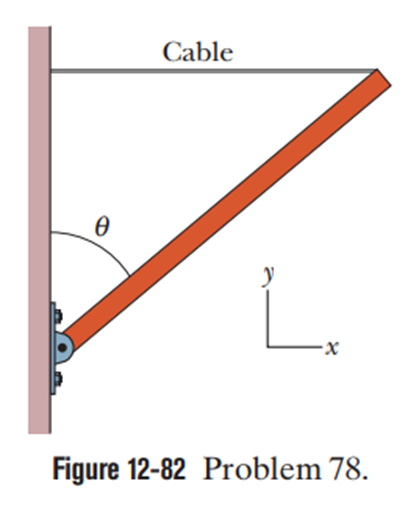

In Fig. 12-82, a uniform beam of length 12.0″¾ is supported by a horizontal cable and a hinge at angle θ=50.0°. The tension in the cable is 400 N .

In unit-vector notation, what are

(a) the gravitational force on the beam and

(b) the force on the beam from the hinge?

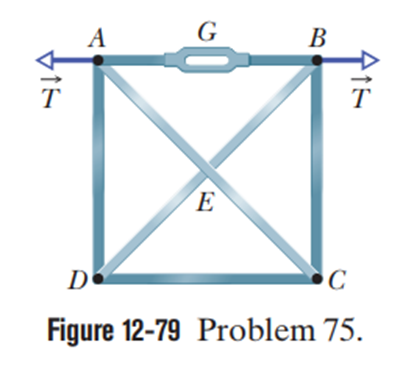

The rigid square frame in Fig. 12-79 consists of the four side bars AB ,BC , CD , and DA plus two diagonal bars ACand BD , which pass each other freely at E. By means of the turnbuckle G, bar ABis put under tension, as if its ends were subject to horizontal, outward forcesT→ of magnitude535 N .

(a) Which of the other bars are in tension? What are the magnitudes of (b) the forces causing the tension in those bars and (c) the forces causing compression in the other bars?

In Fig. 12-73, a uniform beam with a weight of 60 Nand a length of 3.2″¾ is hinged at its lower end, and a horizontal force of magnitude 50 N acts at its upper end. The beam is held vertical by a cable that makes angle θ=25°with the ground and is attached to the beam at height h=2.0″¾ . What are (a) the tension in the cable and (b) the force on the beam from the hinge in unit-vector notation?

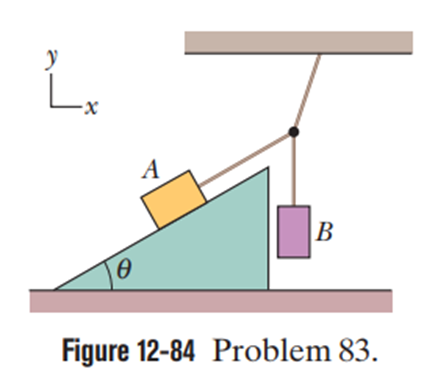

Figure 12-84 shows a stationary arrangement of two crayon boxes and three cords. Box Ahas a mass of11.0 k²µ and is on a ramp at angle θ=30.0°box Bhas a mass of7.00 k²µ and hangs on a cord. The cord connected to box Ais parallel to the ramp, which is frictionless. (a) What is the tension in the upper cord, and (b) what angle does that cord make with the horizontal?
