In Fig 12-52, uniform beams A and B are attached to a wall with hinges and loosely bolted together (there is no torque of one on the other). Beam A has lengthLA=2.40″¾ and mass54.0 kg; beamBhas mass68.0 kg. The two hinge points are separated by distanced=1.80m.In unit-vector notation, what is the force on(a) beamAdue to its hinge? (b) beamAdue to the bolt? (c) beamBdue to its hinge? And (d) beamBdue to the bolt?

Short Answer

Expert verified

a) Force on beam A due to hinge is −797i^+265j^.

b) Force on beam A due to bolt is797i^+265j^ .

c) Force on beam B due to hinge is797i^+931j^ .

d) Force on beam B due to bolt is−797i^−265j^ .

Step by step solution

01

Listing the given quantities

  • The length of beam A is,L=2.40 m.
  • Mass of beam A is,mA=54 kg.
  • Mass of beam B is,mB=68 kg.
  • The separation between beams isd=1.80 m,.
02

Understanding the concept

Write down the torque equation about the pivot point to find out the x and y components of forces. Using the values of forces found here, we can solve the remaining parts.

03

Free Body Diagram

The free body diagram can be drawn as below:

04

(a) Calculation of force on beam A due to hinge

Total mass is,M=(54+68)=122 kg.

The line of action of that downward force of gravity isx=1.20 m from the wall. The vertical distance between the hinges is y=1.80 m.

From the equation of the torque at the bottom of the hinge, we can calculate the x component of force as,

Fx=−Mgxy

Substitute the values in the above expression, and we get,

Fx=−122 k²µÃ—9.8″¾/s2×1.8″¾1.2″¾âˆ’122×9.8×1.81.2â‹…(1 k²µâ‹…m/s2×1″¾1″¾Ã—1 N1 k²µâ‹…m/s2)=−797 N

The torque about bolt :

The weight of the beam would be acting downwards at the center of the beam. The torque caused by this weight would be balanced by torque caused by Fy in the upward direction.

Fy=mAgxl

Substitute the values in the above expression, and we get,

Fy=54 k²µÃ—9.8″¾/s2×1.2″¾2.4″¾Fy=54×9.8×1.22.4â‹…(1 k²µâ‹…m/s2×1″¾1″¾Ã—1 N1 k²µâ‹…m/s2)=265 N

So unit vector notation, we can write the force as,

F→=Fxi^+Fyj^

Substitute the values in the above expression, and we get,

F→=−797i^+265j^

Thus, the force on beam A due to the hinge is −797i^+265j^.

05

(b) Calculation of force on beam A due to bolt

Equilibrium of horizontal and vertical forces on beam A readily yields.

X component of force due to bolt is and given as follows:

F1=−Fx=727 N

Y component of force due to bolt isF2and given as,

F2=mAg−Fy

Substitute the values in the above expression, and we get,

F2=54×9.8−265=529.2−265=264.2~265 N

So unit vector notation, we can write the force as,

F→=F1i^+F2j^

Substitute the values in the above expression, and we get,

F→=797i^+265j^

Thus, the force on beam A due to the bolt is 797i^+265j^.

06

(c) Calculation of force on beam B due to hinge

Now consider combining the AOB system equilibrium of horizontal and vertical forces.X component of force due to hinge at B isF3

F3=−Fx=797N

Y component of force due to hinge at B is Fy.

Substitute the values in the above expression, and we get,

F4=Mg-Fy=122×9.8=931N

So unit vector notation, we can write the force as,

F→=F3i^+F4j^

Substitute the values in the above expression, and we get,

F→=797i^+931j^

Thus, the force on beam B due to hinge is797i^+931j^

07

(d) Calculation of force on beam B due to bolt

Force on beam B due to bolt:

X component of force due bolt at B isF5 and given as follows:

F5=−797 N

Y component of force due to bolt at B isF6and given as,

F6=−265 N

So unit vector notation, we can write the force as,

F→=Fxi^+Fyj^

So vector notation of force at B due to bolt at B is as follows:

F→=−797i^−265j^

Thus, the force on beam B due to the bolt −797i^−265j^.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

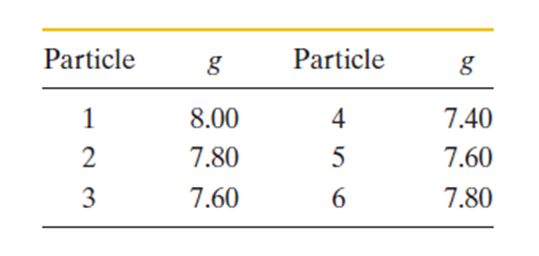

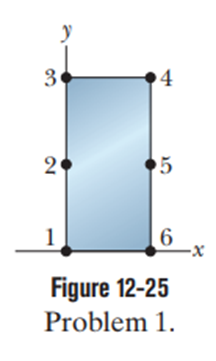

Question: Because gvaries so little over the extent of most structures, any structure’s center of gravity effectively coincides with its center of mass. Here is a fictitious example where gvaries more significantly. Figure 12-25 shows an array of six particles, each with mass m, fixed to the edge of a rigid structure of negligible mass. The distance between adjacent particles along the edge is 2.00 m. The following table gives the value of g (m/s2)at each particle’s location. Using the coordinate system shown, find (a) the xcoordinate xcom and (b) the ycoordinate Ycom of the center of mass of the six-particle system. Then find (c) the xcoordinate xcog and (d) the ycoordinateYcogof the center of gravity of the six-particle system.

In Fig.12-48, the driver of a car on a horizontal road makes an emergency stop by applying the brakes so that all four wheels lock and skid along the road. The coefficient of kinetic friction between tires and road is 0.40.The separation between the front and rear axles is L=4.2 m, and the center of mass of the car is located at distance d=1.8 m behind the front axle and distanceh=0.75 m above the road. Theweight of car is 11 kN. Find the magnitude of (a) the braking acceleration of the car, (b) the normal force on each rear wheel, (c) the normal force on each front wheel, (d) the braking force on each rear wheel, and (e) the braking force on each front wheel. (Hint:Although the car is not in translational equilibrium, it isin rotational equilibrium.)

In Fig. 12-47, a nonuniform bar is suspended at rest in a horizontal position by two massless cords. One cord makes the angleθ=36.9°with the vertical; the other makes the angleϕ=53.1°with the vertical. If the lengthLof the bar is6.10m, compute the distancexfrom the left end of the bar to its center of mass.

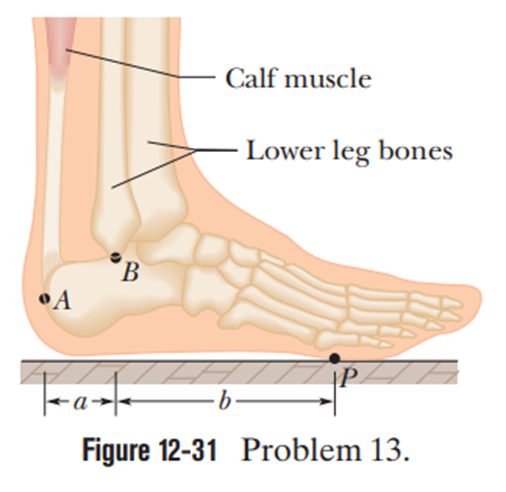

Question: Fig. 12-31 shows the anatomical structures in the lower leg and foot that are involved in standing on tiptoe, with the heel raised slightly off the floor so that the foot effectively contacts the floor only at point P. Assume distance a = 0 .5 cm , distanceb = 15 cm, and the person’s weight W = 900 N. Of the forces acting on the foot, what are the (a) magnitude and (b) direction (up or down) of the force at point Afrom the calf muscle and the (c) magnitude and (d) direction (up or down) of the force at point Bfrom the lower leg bones?

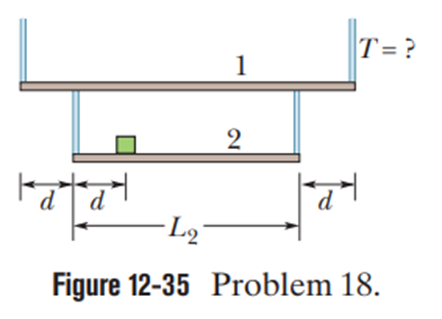

Question: In Fig.12-35, horizontal scaffold 2, with uniform mass m2 =30.0 kg and length L2 =2.00 m, hangs from horizontal scaffold 1, with uniform mass m1 = 50 kg . A 20 kgbox of nails lies on scaffold 2, centered at distance d = 0.500 mfrom the left end. What is the tension Tin the cable indicated?
