Chapter 12: Q1P (page 345)

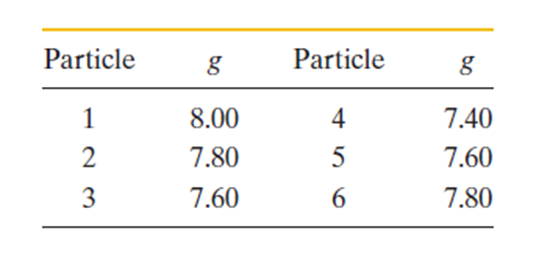

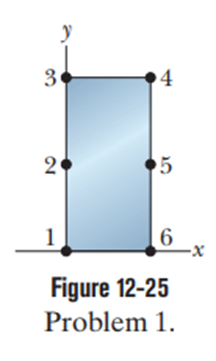

Question: Because gvaries so little over the extent of most structures, any structure鈥檚 center of gravity effectively coincides with its center of mass. Here is a fictitious example where gvaries more significantly. Figure 12-25 shows an array of six particles, each with mass m, fixed to the edge of a rigid structure of negligible mass. The distance between adjacent particles along the edge is 2.00 m. The following table gives the value of g (m/s²)at each particle鈥檚 location. Using the coordinate system shown, find (a) the xcoordinate x_com and (b) the ycoordinate Y_com of the center of mass of the six-particle system. Then find (c) the xcoordinate x_cog and (d) the ycoordinateY_cogof the center of gravity of the six-particle system.

Short Answer

Expert verified

Answer:

The x component of the center of mass ( x_com ) of the six-particle system is 1.00 m .
The y component of the center of mass ( y_com ) of the six-particle system is 2.00m .
The x component of the center of gravity ( x_cog) of the six-particle system is 0.987 m.
The y component of the center of gravity ( y_cog ) of the six-particle system is 1.97m .

Step by step solution

Understanding the given information

The mass of each particle is m

The distance between adjacent particles is 2.00.

Concept and formula used in the given question

You can find the components of the center of mass and the center of gravity using the formulae for them which are given below.

$x_{c o m} = \frac{鈭� m_{i} x_{i}}{M} y_{c o m} = \frac{鈭� m_{i} y_{i}}{M} x_{c o g} = \frac{鈭� m_{i} x_{i} g_{i}}{鈭� m_{i} g_{i}} y_{c o g} = \frac{鈭� m_{i} y_{i} g_{i}}{鈭� m_{i} g_{i}}$

(a) Calculation for the x coordinate xcom

The x component of the center of mass x_com of the six particle system is,

$x_{c o m} = \frac{鈭� m_{i} x_{i}}{M} = \frac{0 + 0 + 0 + m (2) + m (2) + m (2)}{6 m} = \frac{6}{6} = 1.00 m$

(b) Calculation for the y coordinate ycom of the center of mass of the six-particle system

The y component of the center of mass y_com of the six particle system is,

$y_{c o m} = \frac{鈭� m_{i} y_{i}}{M} = \frac{0 + 0 + m (2) + m (2) + m (4) + m (4)}{6 m} = 2.00 m$

(c) Calculation for the x coordinate xcog

The x component of the center of gravity x_cog of the six particle system is

$x_{c o g} = \frac{鈭� m_{i} x_{i} g_{i}}{鈭� m_{i} g_{i}} = \frac{0 + 0 + 0 + m (2) (7.4) + m (2) (7.6) + m (2) (7.8)}{m (8) + m (7.8) + m (7.6) + m (7.4) + m (7.6) + m (7.8)} = \frac{45.6}{46.2} = 0.987 m$

(d) Calculation for the y coordinate ycog of the center of gravity of the six-particle system

The y component of the center of gravity y_cog of the six particle system is,

$y_{c o g} = \frac{鈭� m_{i} y_{i} g_{i}}{鈭� m_{i} g_{i}} = \frac{0 + 0 + m (2) (7.8) + m (4) (7.6) + m (4) (7.4) + m (2) (7.6)}{m (8) + m (7.8) + m (7.6) + m (7.4) + m (7.6) + m (7.8)} = 1.97 m$
