Chapter 31: Q52P (page 938)

An ac voltmeter with a large impedance is connected in turn across the inductor, the capacitor, and the resistor in a series circuit having an alternating emf of 100V (RMS); the meter gives the same reading in volts in each case. What is this reading?

Short Answer

Expert verified

Voltmeter reading for parallel combination with the inductor, resistor, and capacitor is the same as 100V.

Step by step solution

01

Listing the given quantities:

Alternating emf =100V

02

Understanding the concepts of impedance, capacitance, and resistance:

Whenever we connect an electronic device (with high impedance) to another circuit with finite impedance in parallel, there is no effect on the impedance of the circuit. In this case, we are connecting the voltmeter with different components.

03

Explanation:

Whenever there isa connection between an electronicdevice (with high impedance) with another device with finite impedance in parallel, there is no effect on the impedance of the circuit.

Therefore, since the ac voltmeter is connected in parallel with the inductor, in this case, the voltmeter reading will be100V.

Since the ac voltmeter is connected in parallel with the resistor, in this case, the voltmeter reading will be100V.

Since the ac voltmeter is connected in parallel with the capacitor, in this case, the voltmeter reading will be 100V.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In a certain oscillating LCcircuit, the total energy is converted from electrical energy in the capacitor to magnetic energy in the inductor in1.50渭s. (a) What is the period of oscillation? (b) What is the frequency of oscillation? (c) How long after the magnetic energy will be a maximum again?

In an oscillating LCcircuit, L=25.0mHand C=7.80渭F. At time t=0 the current is 9.20mA, the charge on the capacitor is 3.80渭C, and the capacitor is charging. (a) What is the total energy in the circuit? (b) What is the maximum charge on the capacitor? (c) What is the maximum current? (d) If the charge on the capacitor is given by q=Qcos(蝇迟+蠁),what is the phase angle 蠁? (e) Suppose the data are the same, except that the capacitor is discharging at t=0. What then is 蠁?

Curve a in Fig. 31-21 gives the impedance Z of a driven RC circuit versus the driving angular frequency 蝇d. The other two curves are similar but for different values of resistance R and capacitance C. Rank the three curves according to the corresponding value of R, greatest first.

An ac generator provides emf to a resistive load in a remote factory over a two-cable transmission line. At the factory a stepdown transformer reduces the voltage from its (rms) transmission value Vtto a much lower value that is safe and convenient for use in the factory. The transmission line resistance is R=0.30惟/cable, and the power of the generator is P=250kW. If Vt=80kV, what are (a) the voltage decreases V along the transmission line and (b) the rate 螖V at which energy is dissipated in the line as thermal energy? If Vt=80kV, what are (c) V and (d)螖V ? If Vt=80kV, what are (e) V and (f) Pd?

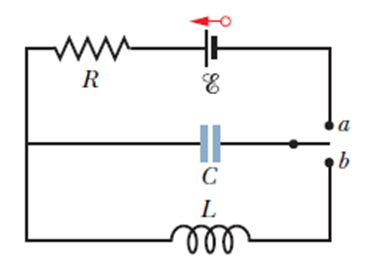

In Figure, R=14.0惟,C=6.20渭贵,and L=54.0mH, and the ideal battery has emf 蔚=34.0V. The switch is kept at a for a long time and then thrown to position b.
