In an oscillating LCcircuit, L=25.0mHand C=7.80F. At time t=0 the current is 9.20mA, the charge on the capacitor is 3.80C, and the capacitor is charging. (a) What is the total energy in the circuit? (b) What is the maximum charge on the capacitor? (c) What is the maximum current? (d) If the charge on the capacitor is given by q=Qcos(蝇迟+),what is the phase angle ? (e) Suppose the data are the same, except that the capacitor is discharging at t=0. What then is ?

Short Answer

Expert verified
  1. Total energy in the circuit is1.9810-6J.
  2. Maximum charge on the capacitor is5.5610-6C.
  3. Maximum charge current is1.2610-2A.
  4. Phase angle is46.9.
  5. When capacitor is discharged, phase angle will be +46.9.

Step by step solution

01

The given data

  1. The inductance and capacitance in the LC circuit,L=25.0mHor2510-3H,C=7.80渭贵or7.8010-6F
  2. The current value att=0,i=9.20mAor9.2010-3A
  3. The charge value on the capacitor, q=3.80渭颁or3.8010-6C
  4. The equation of charge on the capacitor, q=Qcost+
02

Understanding the concept of oscillations of LC circuit

In an oscillating circuit, oscillations of the capacitor in an electric field and oscillations of an inductor in the magnetic field cause electromagnetic oscillations. The energy stored in the capacitor's electric field (E) at any time is due to the charge stored by the capacitor. The energy stored in the magnetic field (B) at any time is due to the current flow in the inductor coil. And total energy is a combination of both.

Formulae:

Maximum energy stored in electric field by the capacitor, UE=q22C (i)

Maximum energy stored in magnetic field by the inductor, UB=Li22 (ii)

03

a) Calculation of the total energy in the circuit

The total energy in the circuit is due to the charge storing by the capacitor and the current flow through the inductor. Thus, it is given using given data, equations (i) and (ii) as follows:

U=q22C+Li22=(3.8010-6)227.8010-6+2510-3(9.2010-3)22=1.9810-6J

Hence, the total energy is 1.9810-6J.

04

b) Calculation of the maximum charge

Using the above energy value in equation (i), we can get the maximum charge stored by the capacitor as follows:

Q=2UC=27.8010-61.9810-6=5.6610-6C

Hence, the value of the charge is 5.6610-6C.

05

c) Calculation of the maximum current

Using the energy value from part (a) in equation (ii), we can get the maximum current stored by the capacitor as follows:

i=2UL=21.9810-62510-3=1.2610-2A

Hence, the value of the current is 1.2610-2A.

06

d) Calculation of the phase angle

Att=0, the phase angle can be found by using given charge value and maximum charge value in the given charge equationq=Qcost+as follows:

=cos-1qQ=cos-13.8010-65.5610-6=46.9

By taking the derivative of the equation at t = 0, we obtainrole="math" localid="1663160844647" -Qsin, which is negative. Therefore,the sign indicates that for =+46.9,the charge on the capacitor is decreasing, and for=-46.9, the charge on the capacitor is increasing.

Hence, the value of the phase angle is 46.9.

07

e) Calculation of the phase angle when capacitor is discharged

For the given data to be the same, and only the capacitor is discharging at t=0; then the derivative will be negative, and sin will be positive. Thus, =+46.9.

Hence, the value of the phase angle for case of discharging is +46.9.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

An ac generator with emf amplitude m=220V and operating at frequency fd=400Hzcauses oscillations in a seriesRLC circuit having R=220,L=150mH , andC=24.0渭贵 . Find (a) the capacitive reactance XC, (b) the impedance Z, and (c) the current amplitude I. A second capacitor of the same capacitance is then connected in series with the other components. Determine whether the values of (d)XC , (e) Z, and (f) Iincrease, decrease, or remain the same.

In Fig. 31-35, let the rectangular box on the left represent the (high-impedance) output of an audio amplifier, with r=1000ohm . LetR=10ohmrepresent the (low-impedance) coil of a loudspeaker. For maximum transfer of energy to the load Rwe must have R=r , and that is not true in this case. However, a transformer can be used to 鈥渢ransform鈥 resistances, making them behave electrically as if they were larger or smaller than they actually are. (a) Sketch the primary and secondary coils of a transformer that can be introduced between the amplifier and the speaker in Fig. 31-35 to match the impedances. (b) What must be the turns ratio?

Figure 31-19 shows three oscillating LC circuits with identical inductors and capacitors. At a particular time, the charges on the capacitor plates (and thus the electric fields between the plates) are all at their maximum values. Rank the circuits according to the time taken to fully discharge the capacitors during the oscillations greatest first.

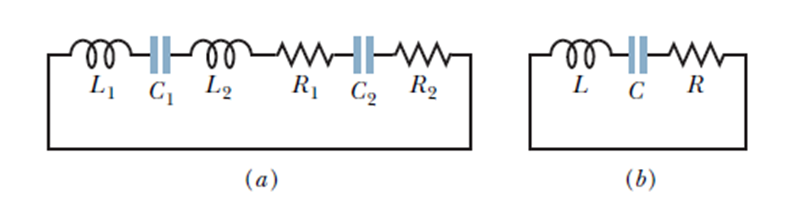

A single loop consists of inductors (L1,L2,......), capacitors (C1,C2,......), and resistors (R1,R2,......) connected in series as shown, for example, in Figure-a. Show that regardless of the sequence of these circuit elements in the loop, the behavior of this circuit is identical to that of the simple LCcircuit shown in Figure-b. (Hint:Consider the loop rule and see problem) Problem:- Inductors in series.Two inductors L1 and L2 are connected in series and are separated by a large distance so that the magnetic field of one cannot affect the other.(a)Show that regardless of the sequence of these circuit elements in the loop, the behavior of this circuit is identical to that of the simple LC circuit shown in above figure (b). (Hint: Consider the loop rule)
