In Fig. 31-35, let the rectangular box on the left represent the (high-impedance) output of an audio amplifier, with r=1000ohm . LetR=10ohmrepresent the (low-impedance) coil of a loudspeaker. For maximum transfer of energy to the load Rwe must have R=r , and that is not true in this case. However, a transformer can be used to 鈥渢ransform鈥 resistances, making them behave electrically as if they were larger or smaller than they actually are. (a) Sketch the primary and secondary coils of a transformer that can be introduced between the amplifier and the speaker in Fig. 31-35 to match the impedances. (b) What must be the turns ratio?

Short Answer

Expert verified

(a) Sketch the primary and secondary coils.

(b) Turns ratio is 10.

Step by step solution

01

Listing the given quantities

The resistance r=1000ohm,

The resistance R=10ohm,

02

Understanding the concepts of transformer

A transformer is a device that transfers electrical energy from one alternating current circuit to one or more other circuits by either increasing (stepping up) or decreasing (stepping down) the voltage.

Use the relation between primary current, the number of turns in the primary coil, secondary current, and the number of turns in the secondary coil.

Then by using the formula for power,define the ratio of turns.

Formula:

Is=NpIpNs

P=Is2R

Ip=rmsReq+r


03

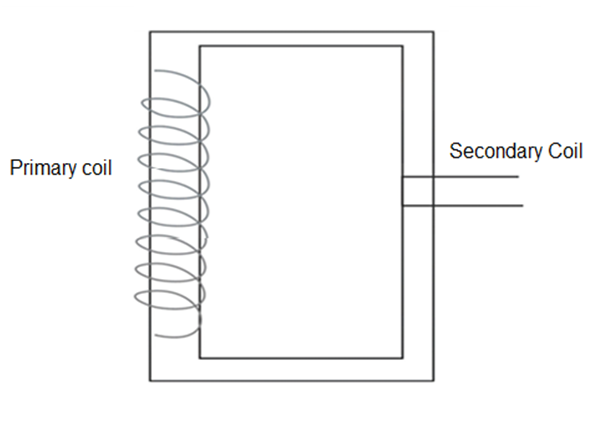

(a)Sketch of the primary and secondary coils:

04

(b) Calculations of the turn’s ratio:

The RMS current in secondary coil is as follows

Is=NpIpNs

The primary current in circuit is given as,

Ip=rmsReq+r=rmsNpNs2R+r

Then power equation is written as follows.

P=rmsNpNs2R+r2NpNs2R

Let鈥檚 assume

x=NpNs2

Pavg=rms2RxxR+r2

Then differentiate with respect to x:

dPavgdx=rms2Rr-xRxR+r3=0

rms2Rr-xRxR+r3=0

So,

x=rR=100010=100ohm

But we know

x=NpNs2NpNs2=100NpNs=10

Hence, number of turns ratio is 10.
