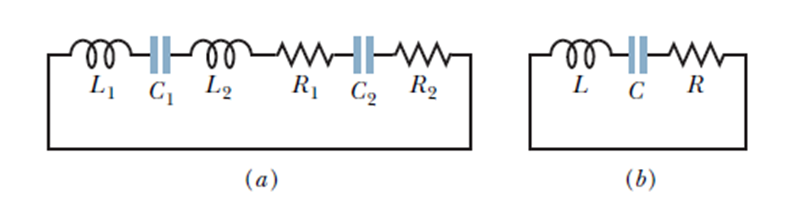

A single loop consists of inductors (L1,L2,......), capacitors (C1,C2,......), and resistors (R1,R2,......) connected in series as shown, for example, in Figure-a. Show that regardless of the sequence of these circuit elements in the loop, the behavior of this circuit is identical to that of the simple LCcircuit shown in Figure-b. (Hint:Consider the loop rule and see problem) Problem:- Inductors in series.Two inductors L1 and L2 are connected in series and are separated by a large distance so that the magnetic field of one cannot affect the other.(a)Show that regardless of the sequence of these circuit elements in the loop, the behavior of this circuit is identical to that of the simple LC circuit shown in above figure (b). (Hint: Consider the loop rule)

Short Answer

Expert verified

The behavior of the circuit in figure (a) is identical to that simple LC circuit shown in figure (b) regardless of the sequence of these circuit elements.

Step by step solution

01

The given data

Inductors L1,L2,……, Capacitors C1,C2,……, ResistorsR1,R2,…… are connected in a series.

02

Understanding the concept of Kirchhoff’s loop rule

Kirchhoff's loop rule states that the sum of all the electric potential differences around a loop is zero. By using the loop rule and differential equation for damped oscillations in the RLC circuit, we will prove that the behaviour of LC circuit (a) is identical to that of (b).

Formulae:

The emf equation, according to Kirchhoff’s loop rule,εtotal=0 (i)

03

Calculation of the behaviors of both the circuits

Applying the loop rule to circuit (a), we get that the total emf of the circuit is given by,

εtotal=εL1+εC1+εL2+εR1+εC2+εR2+………….=0
Letj=1,2,3,…..

Then, the total emf can be written as:

εtotal=∑jεLj+εCj+εRj

By using the differential of the above equation for the LCR circuit, we get that ,

dεtotaldt=∑jLjdidt+qCj+iRj

∑jLj=L,∑jCj=C,∑jRj=R

Ldidt+qC+iR=0(∵from equation (i))

This is equivalent to the simple LRC circuit (b).

Hence circuit (a) is identical to the circuit (b).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

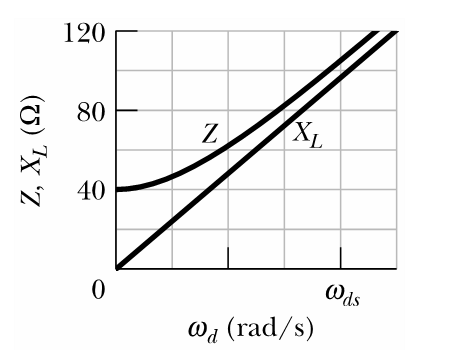

An alternating source with a variable frequency, an inductor with inductance L, and a resistor with resistance Rare connected in series. Figure gives the impedance Zof the circuit versus the driving angular frequency Ó¬d, with the horizontal axis scale set by (Ó¬d)s=1600rad/s. The figure also gives the reactance XLfor the inductor versus Ó¬d. (a) What isR? (b) What isL?
