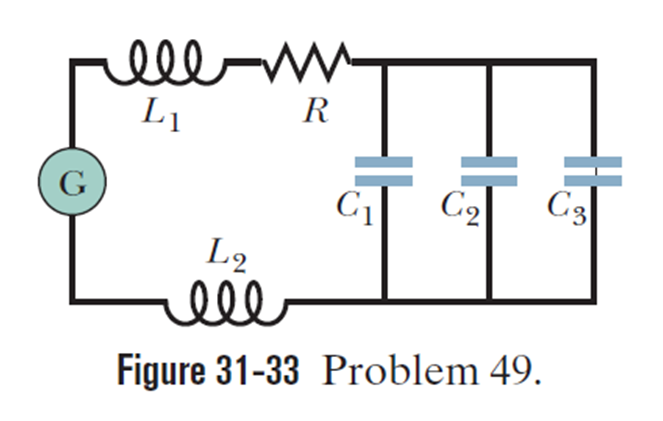

In Fig. 31-33, a generator with an adjustable frequency of oscillation is connected to resistance R=100Ω, inductances L1=1.70mH and L2=2.30mH, and capacitances C1=4.00μ¹ó, C2=4.00μ¹ó , and C3=3.50μ¹ó . (a) What is the resonant frequency of the circuit? (Hint: See Problem 47 in Chapter 30.) What happens to the resonant frequency if (b) Ris increased, (c) L1is increased, and (d) C3 is removed from the circuit?

Short Answer

Expert verified
  1. The resonant frequency of the circuit is 796Hz.
  2. If R is increased, resonant frequency Ó¬does not change.
  3. If L1is increased, resonant frequency Ó¬decreases.
  4. If C3is removed, resonant frequency Ó¬increases.

Step by step solution

01

The given data

  1. Values of inductors,L1=1.70mH,L2=2.30mH
  2. Values of capacitors,C1=4.00μ¹ó,C2=2.50μ¹ó,C3=3.50μ¹ó
  3. Resistance value,R=100Ω
02

Understanding the concept of resonance of RLC circuit

We have to use the condition of resonance for the series RLC circuit to find the resonant frequency. During resonance, the capacitive reactance and inductive reactance are the same. By using the concept of series and parallel combinations of inductors and capacitors, we can find the required quantities.

Formulae:

The equivalent inductance of a series combination,

Leq=∑inLi ...(i)

The equivalent capacitance of a parallel combination,

Ceq=∑inCi ...(ii)

The resonant frequency of a LC circuit,

Ó¬=12Ï€LC ...(iii)

03

a) Calculation of the resonance frequency

We have two inductors in series.

Thus, by series combination of inductors, we have the equivalent inductance using equation (i) as follows:

Leq=L1+L2=1.70mH+2.30mH=4.00mH=4.0×10-3H

We have three capacitors in parallel.

Now thus for the parallel combination of capacitors, we have the equivalent capacitance using equation (ii) as follows:

Ceq=C1+C2+C3=4.00+2.50+3.50×10-6F=10×10-6F

Now theresonant frequency is given using equation (iii) as follows:

Ӭ=12π(4.0×10-3H×10×10-6 F)=795.77Hz≈796Hz

Hence, the value of the frequency is 796Hz.

04

b) Calculation of the resonant frequency due to resistance change

Since the resonant frequency Ó¬is independent of resistance, there is no effect of increasing resistance. Thus, resonant frequency Ó¬ does not change.

05

c) Calculation of the resonant frequency due to inductance change

As resonance frequency Ó¬is inversely proportional to L, if L1 is increased, Ó¬ decreases.

06

d) Calculation of the resonant frequency due to capacitance change

As resonance frequency Ó¬is inversely proportional to, if C3 is removed, i.e., as

C decreases, Ó¬increases.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

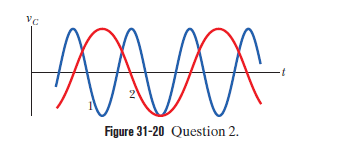

Most popular questions from this chapter

In a certain oscillating LCcircuit, the total energy is converted from electrical energy in the capacitor to magnetic energy in the inductor in1.50μs. (a) What is the period of oscillation? (b) What is the frequency of oscillation? (c) How long after the magnetic energy will be a maximum again?

A typical light dimmer used to dim the stage lights in a theater consists of a variable inductor L (whose inductance is adjustable between zero and Lmax) connected in series with a lightbulb B, as shown in Fig. 31-34. The electrical supply is Vrms=20Vat f=60Hz; the light bulb is rated at 120 V, p=1000W. (a) What Lmax is required if the rate of energy dissipation in the lightbulb is to be varied by a factor of 5 from its upper limit of 1000W? Assume that the resistance of the lightbulb is independent of its temperature. (b) Could one use a variable resistor (adjustable between zero and Rmax ) instead of an inductor? (c) If so, what Rmax is required? (d) Why isn’t this done?

The current amplitude Iversus driving angular frequency Ó¬dfor a driven RLCcircuit is given in Figure, where the vertical axis scale is set by Is=4.00A. The inductance is, 200μ±áand the emf amplitude is 8.0V. (a) What is the C?(b) What is the R?

Figure 31-24 shows three situations like those in Fig. 31-15. Is the driving angular frequency greater than, less than, or equal to the resonant angular frequency of the circuit in (a) situation 1, (b) situation 2, and (c)situation 3?

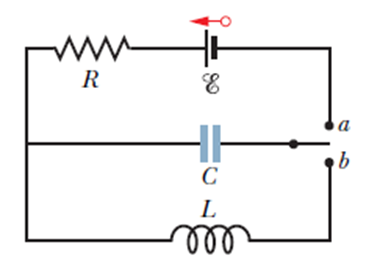

In Figure, R=14.0Ω,C=6.20μ¹ó,and L=54.0mH, and the ideal battery has emf ε=34.0V. The switch is kept at a for a long time and then thrown to position b.
