An air conditioner connected to a 120 V RMS ac line is equivalent to a12.0 resistance and a 1.30inductive reactance in series. (a) Calculate the impedance of the air conditioner. (b) Calculate the average rate at which energy is supplied to the appliance.

Short Answer

Expert verified
  1. The impedance of the air conditioner is 12.1.
  2. The average rate at which energy is supplied to the appliance is 1.19103W.

Step by step solution

01

Listing the given quantities:

The resistor, R=12

The inductive reactance, XL=1.3

The RMS value, =120V

02

Understanding the concepts of impedance and power:

The impedance of the air conditioner can be found from resistance, and inductive and capacitive reactance using the corresponding relation. Then using the formula for power, we can find the average rate at which energy is supplied to the appliance.

Formula:

Z=R2+XL-XC2 鈥.. (1)

Here, XC is the capacitive reactance.

03

(a) Calculations of the impedance of the air conditioner:

To find impedance Zuse equation (1).

Z=R2+XL-XC2

Substitute known numerical values in the above equation.

Z=122+1.3-02=144+1.69=145.07=12.1

Hence, the impedance of the air conditioner is 12.1.

04

(b) Calculations of the average rate at which energy supplied to the appliance:

Define the average rate of energy Pavgas follow.

Pavg=RMS2RZ2=12021212.072=1.19103W

The average rate at which energy supplied to the appliance is 1.19103W.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In Fig. 31-35, let the rectangular box on the left represent the (high-impedance) output of an audio amplifier, with r=1000ohm . LetR=10ohmrepresent the (low-impedance) coil of a loudspeaker. For maximum transfer of energy to the load Rwe must have R=r , and that is not true in this case. However, a transformer can be used to 鈥渢ransform鈥 resistances, making them behave electrically as if they were larger or smaller than they actually are. (a) Sketch the primary and secondary coils of a transformer that can be introduced between the amplifier and the speaker in Fig. 31-35 to match the impedances. (b) What must be the turns ratio?

Figure 31-36 shows an ac generator connected to a 鈥渂lack box鈥 through a pair of terminals. The box contains an RLC circuit, possibly even a multiloop circuit, whose elements and connections we do not know. Measurements outside the box reveal that(t)=(75.0V)sin(dt)and i(t)=(1.20A)sin(dt+42.0).

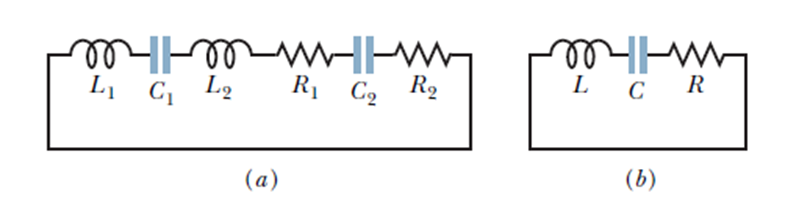

A single loop consists of inductors (L1,L2,......), capacitors (C1,C2,......), and resistors (R1,R2,......) connected in series as shown, for example, in Figure-a. Show that regardless of the sequence of these circuit elements in the loop, the behavior of this circuit is identical to that of the simple LCcircuit shown in Figure-b. (Hint:Consider the loop rule and see problem) Problem:- Inductors in series.Two inductors L1 and L2 are connected in series and are separated by a large distance so that the magnetic field of one cannot affect the other.(a)Show that regardless of the sequence of these circuit elements in the loop, the behavior of this circuit is identical to that of the simple LC circuit shown in above figure (b). (Hint: Consider the loop rule)
