Q30P

Page 797

In Figure, the ideal batteries have emfs1=10.0Vand2=0.5001 , and the resistances are each 4.00.

(a) What is the current in resistance 2?

(b) What is the current in resistance 3?

Q31P

Page 797

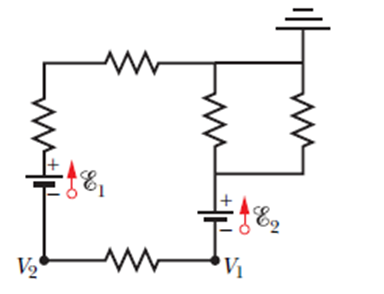

In Figure, the ideal batteries have emfs 1=5.0鈥塚and 1=5.0鈥塚, the resistances are each 2.0鈥坝, and the potential is defined to be zero at the grounded point of the circuit. What are potentials

(a) What are potential V1at the indicated points?

(b) What are potential V2at the indicated points?

Q32P

Page 797

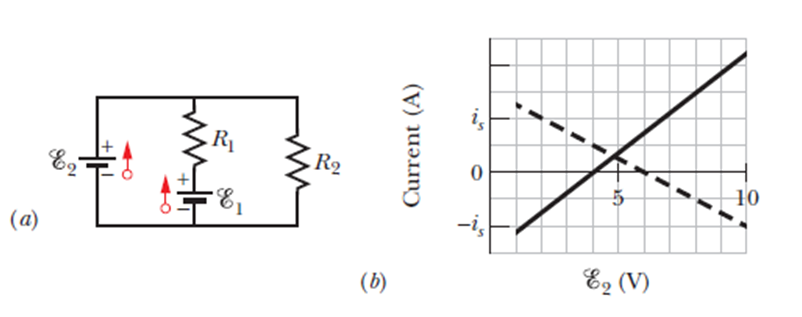

Both batteries in Figure

(a) are ideal. Emf1 of battery 1 has a fixed value, but emf 1of battery 2 can be varied between 1.0Vand10V . The plots in Figure

(b) give the currents through the two batteries as a function of2 . The vertical scale is set by isis=0.20A . You must decide which plot corresponds to which battery, but for both plots, a negative current occurs when the direction of the current through the battery is opposite the direction of that battery鈥檚 emf.

(a)What is emf1 ?

(b) What is resistanceR1 ?

(c) What is resistance R2?

Q33P

Page 796

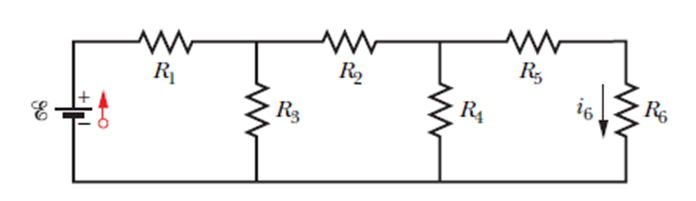

Question: In Figure, the current in resistance 6 isi6 =1.40 Aand the resistances are R1=R2=R3=2.00,R4=16.0,R5=8.00惟补苍诲搁6=4.00.What is the emf of the ideal battery?

Q34P

Page 797

The resistances in Figures (a) and (b) are all 6.0 , and the batteries are ideal 12Vbatteries. (a) When switch S in Figure (a) is closed, what is the change in the electric potential V1 across resistor 1, or does V1 remain the same?

(a) When switch S in Figure (b) is closed, what is the change in V1across resistor 1, or does V1 remain the same?

Q35P

Page 797

In Figure,=12鈥塚, R1=2000, R2=3000, and R3=4000. (a) What is the potential difference VAVB?(b) What is the potential difference VBVC?(c) What is the potential differenceVCVD?(d) What is the potential difference VAVC?

Q36P

Page 797

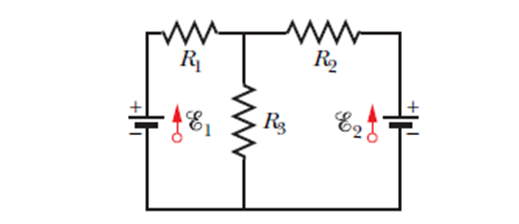

In Figure, 1=6.00V, 2=12.0V ,R1=100 , R2=200 ,andR3=300 . One point of the circuit is grounded(V=0) .(a)What is the size of the current through resistance 1? (b) What is the direction (up or down) of the current through resistance 1? (c) What is the size of the current through resistance 2?(d) What is the direction (left or right) of the current through resistance 2? (e) What is the size of the current through resistance 3? (f) What is the direction of the current through resistance 3? (g) What is the electric potential at point A?

Q37P

Page 796

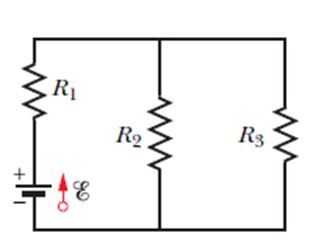

Question: In Figure, the resistances are,R1=2.00,R2=5.00 and the battery is ideal. What value of R3maximizes the dissipation rate in resistance 3?

Q38P

Page 797

The figure shows a section of a circuit. The resistances are R1=2.0 , R2=4.0and R3=6.0, and the indicated current is I=6.0A . The electric potential difference between points A and B that connect the section to the rest of the circuit is VAVB=78V . (a) Is the device represented by 鈥淏ox鈥 absorbing or providing energy to the circuit, and (b) At what rate?

Q39P

Page 798

In Fig. 27-50, two batteries with an emf=12.0鈥塚and an internal resistance r=0.200鈥坝are connected in parallel across a resistance R. (a) For what value of Ris the dissipation rate in the resistor a maximum? (b) What is that maximum?
