A 5.00105-kgsubway train is brought to a stop from a speed of0.500m/sin0.400mby a large spring bumper at the end of its track. What is the force constant k of the spring?

Short Answer

Expert verified

The force constant of the spring is 781250N/m.

Step by step solution

01

Force constant

Force constant: When a spring is stretched by the application of some force, then according to the Hooke鈥檚 law the increase in the length of spring from its equilibrium length is directly proportional to the force applied.

Mathematically,

FxF=kx

Here, k is the proportionality constant known as force constant or spring constant.

02

Calculation of the force constant

When a spring is stretched, the change in potential energy of the spring is,

PE=12kx2

Here, k is the force constant, and x is the displacementx=0.400m.

According to the law of conservation of energy,

PE=KE12kx2=12mv2

Here, m is the mass of the subway trainm=5.00105kg, and v is the initial velocity of the subway trainv=0.500m/s.

The expression for the force constant is,

k=mv2x2

Putting all known values,

k=5.00105kg0.500m/s20.400m2=781250N/m

Therefore, the required force constant of the spring is 781250N/m.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A spark of static electricity, such as that you might receive from a doorknob on a cold dry day, may carry a few hundred watts of power. Explain why you are not injured by such a spark.

Boxing gloves are padded to lessen the force of a blow.

(a) Calculate the force exerted by a boxing glove on an opponent鈥檚 face, if the glove and face compress 7.50 cm during a blow in which the 7.00-kg arm and glove are brought to rest from an initial speed of 10.0 m/s.

(b) Calculate the force exerted by an identical blow in the gory old days when no gloves were used and the knuckles and face would compress only 2.00 cm.

(c) Discuss the magnitude of the force with glove on. Does it seem high enough to cause damage even though it is lower than the force with no glove?

What is the relationship of potential energy to conservative force?

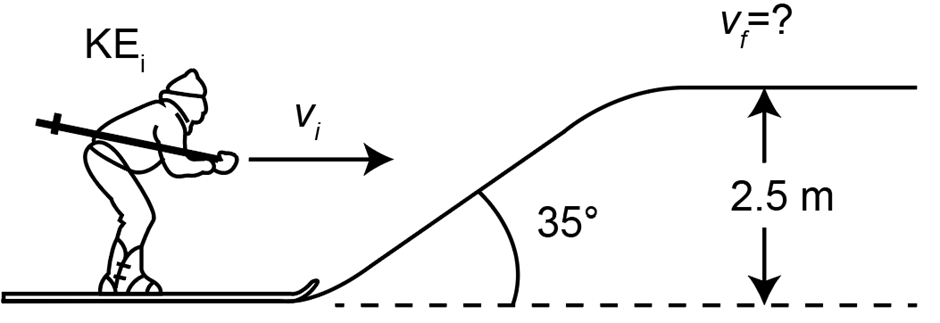

A 60.0-kgskier with an initial speed of12.0m/scoasts up a2.50mhigh rise as shown in Figure 7.40. Find her final speed at the top, given that the coefficient of friction between her skis and the snow is0.0800. (Hint: Find the distance traveled up the incline assuming a straight-line path as shown in the figure.)

Figure 7.40 The skier鈥檚 initial kinetic energy is partially used in coasting to the top of a rise.

Suppose a car travels\(108{\rm{ km}}\)at a speed of\(30.0\,{\rm{m}}/{\rm{s}}\), and uses\(2.0{\rm{ gal}}\)of gasoline. Only\(30\% \)30% of the gasoline goes into useful work by the force that keeps the car moving at constant speed despite friction. (See Table 7.1 for the energy content of gasoline.)

(a) What is the magnitude of the force exerted to keep the car moving at constant speed?

(b) If the required force is directly proportional to speed, how many gallons will be used to drive\(108{\rm{ km}}\) at a speed of \(28.0{\rm{ m}}/{\rm{s}}\)?
