Suppose a car travels\(108{\rm{ km}}\)at a speed of\(30.0\,{\rm{m}}/{\rm{s}}\), and uses\(2.0{\rm{ gal}}\)of gasoline. Only\(30\% \)30% of the gasoline goes into useful work by the force that keeps the car moving at constant speed despite friction. (See Table 7.1 for the energy content of gasoline.)

(a) What is the magnitude of the force exerted to keep the car moving at constant speed?

(b) If the required force is directly proportional to speed, how many gallons will be used to drive\(108{\rm{ km}}\) at a speed of \(28.0{\rm{ m}}/{\rm{s}}\)?

Short Answer

Expert verified

(a) The magnitude of force exerted to keep the car moving is\(666.67{\rm{ N}}\).

(b) The fuel used will be \(1.87{\rm{ gal}}\).

Step by step solution

01

Definition of Concept

Efficiency: Efficiency of any system is the ratio of total useful output energy to the total input energy.

02

Calculating the energy produced by burning gasoline

(a)

The amount of energy released by burning\(1.0{\rm{ gal}}\)of gasoline is\(1.2 \times {10^8}{\rm{ J}}\). Therefore, the produced by burning\(2.0{\rm{ gal}}\)of gasoline is,

\(\begin{aligned}{}E &= 2 \times \left( {1.2 \times {{10}^8}{\rm{ J}}} \right)\\ &= 2.4 \times {10^8}{\rm{ J}}\end{aligned}\)

Since only\(30\% \)of this energy is used in moving the car. Therefore, the amount of work done in moving the car is,

\(\begin{aligned}{}W &= \left( {2.4 \times {{10}^8}{\rm{ J}}} \right) \times \frac{{30}}{{100}}\\ &= 7.2 \times {10^7}{\rm{ J}}\end{aligned}\)

The work done is,

\(W = Fd\)

Here,\(F\)is the force and\(d\)is the displacement.

The expression for the force is,

\(F = \frac{W}{d}\)

Putting all known values,

\(\begin{aligned}{}F &= \frac{{7.2 \times {{10}^7}{\rm{ J}}}}{{108{\rm{ km}}}}\\ &= \frac{{7.2 \times {{10}^7}{\rm{ J}}}}{{108{\rm{ km}} \times \left( {\frac{{{{10}^3}{\rm{ m}}}}{{1{\rm{ km}}}}} \right)}}\\ &= 666.67{\rm{ N}}\end{aligned}\)

Therefore, the required magnitude of force exerted to keep the car moving is \(666.67{\rm{ N}}\).

03

Calculating the amount of fuel used

(b)

Since, the force is directly proportional to speed i.e.,

\(F \propto v\)

Here,\(v\)is the speed of the car.

The force is directly proportional for the work done or energy used i.e.,

\(E \propto F\)

The energy generated by the burning gasoline is directly proportional to the amount of the gasoline burnt i.e.,

\(m \propto E\)

Here, m is the amount of gasoline burnt.

From equations (1.1), (1.2), and (1.3) we get,

\(m \propto v\)

Here, the amount of the gasoline burnt is directly proportional to the speed of the car.

As a result,

\(\frac{{m'}}{m} = \frac{{v'}}{v}\)

Here,\(m\)is the amount of gasoline burnt to keep car moving with speed\(v = 30{\rm{ m}}/{\rm{s}}\)and\(m'\)is the amount of gasoline burnt to keep car moving with speed\(v' = 28{\rm{ m}}/{\rm{s}}\).

As a result, the amount of gasoline\(m'\)required to keep car moving with speed\(v' = 28{\rm{ m}}/{\rm{s}}\)is,

\(\begin{aligned}{}m' &= \frac{{mv'}}{v}\\ &= \frac{{\left( {2{\rm{ gal}}} \right) \times \left( {28{\rm{ m}}/{\rm{s}}} \right)}}{{\left( {30{\rm{ m}}/{\rm{s}}} \right)}}\\ &= 1.87{\rm{ gal}}\end{aligned}\)

Therefore, the required fuel used will be \(1.87{\rm{ gal}}\).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Describe a situation in which a force is exerted for a long time but does no work. Explain.

Calculate the work done by an 85.0-kg man who pushes a crate 4.00 m up along a ramp that makes an angle of 20.0º with the horizontal. (See Figure 7.35.) He exerts a force of 500 N on the crate parallel to the ramp and moves at a constant speed. Be certain to include the work he does on the crate and on his body to get up the ramp.

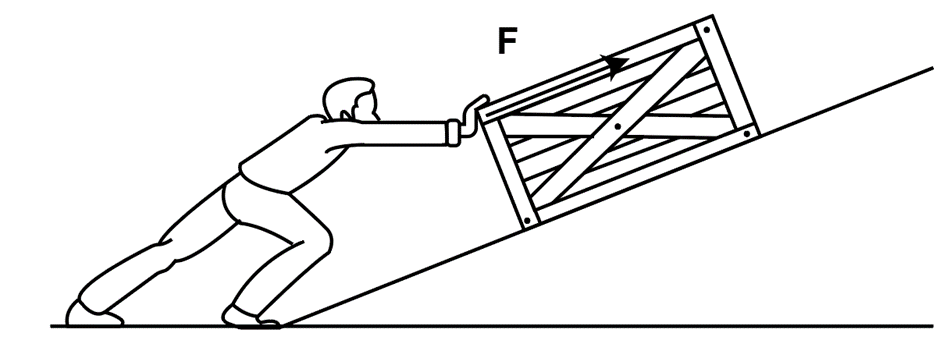

Figure 7.35 A man pushes a crate up a ramp

Question: Define mechanical energy. What is the relationship of mechanical energy to nonconservative forces? What happens to mechanical energy if only conservative forces act?

The Crab Nebula (see Figure 7.41) pulsar is the remnant of a supernova that occurred in A.D. 1054. Using data from Table 7.3, calculate the approximate factor by which the power output of this astronomical object has declined since its explosion.

Consider the following scenario. A car for which friction is not negligible accelerates from rest down a hill, running out of gasoline after a short distance. The driver lets the car coast farther down the hill, then up and over a small crest. He then coasts down that hill into a gas station, where he brakes to a stop and fills the tank with gasoline. Identify the forms of energy the car has, and how they are changed and transferred in this series of events. (See Figure 7.34.)

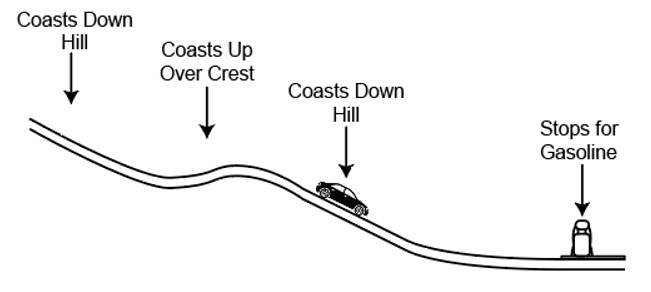

Figure 7.34 A car experiencing non-negligible friction coasts down a hill, over a small crest, then downhill again, and comes to a stop at a gas station.
