The electric field is a vector quantity and given as,

\(E = \frac{{Kq}}{{{r^2}}}\)

Here,\(K\)is the electrostatic force constant,\(q\)is the magnitude of the charge and\(r\)is the distance between the charge and the test charge.

For a system of charges, the net electric field at a point is the vector sum of all the electric field at that point.

The electric field at the center of the equilateral triangle is represented as,

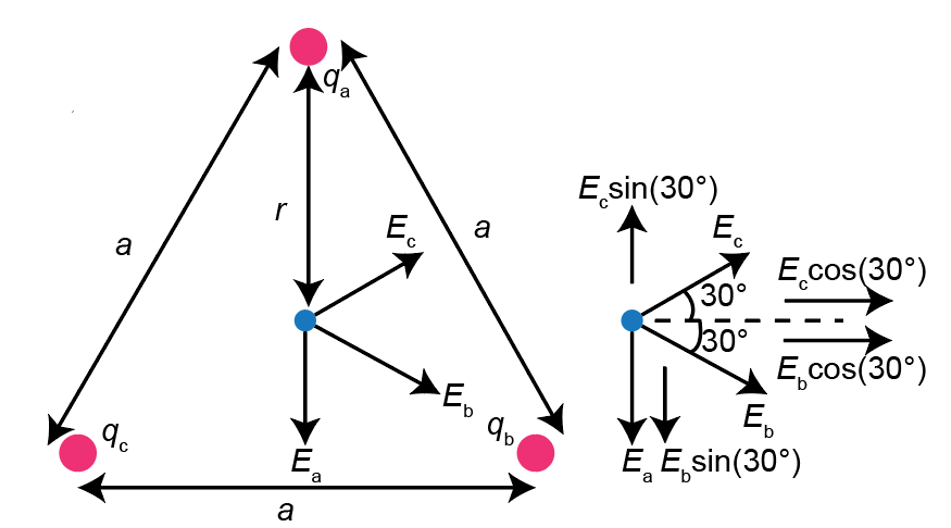

Electric field at the center of the equilateral triangle

Here, \({E_a}\) is the magnitude of the electric field due to charge \({q_a}\), \({E_b}\) is the magnitude of the electric field due to charge \({q_b}\), \({E_c}\) is the magnitude of the electric field due to charge \({q_c}\), and \(a\) is the side of the equilateral triangle.

The distance of the charge from the center of the equilateral triangle (length of the centroid) is,

\(r = \frac{a}{{\sqrt 3 }}\)

Here,\(a\)is the side of the equilateral triangle\(\left( {a = {\rm{25}}{\rm{.0 cm}}} \right)\).

Substituting all known values,

\(\begin{array}{c}r = \frac{{{\rm{25}}{\rm{.00 cm}}}}{{\sqrt {\rm{3}} }}\\ = {\rm{14}}{\rm{.4 cm}}\end{array}\)

The magnitude of the electric field due to charge\({q_a}\)is,

\({E_a} = \frac{{K{q_a}}}{{{r^2}}}\)

Here,\(K\)is the electrostatic force constant\(\left( {K = {\rm{9}} \times {\rm{1}}{{\rm{0}}^{\rm{9}}}{\rm{ N}} \cdot {{\rm{m}}^{\rm{2}}}/{{\rm{C}}^{\rm{2}}}} \right)\),\({q_a}\)is the magnitude of the charge\(\left( {{q_a} = {\rm{2}}{\rm{.50 nC}}} \right)\), and\(r\)is the distance of the charge from the center of the equilateral triangle\(\left( {r = {\rm{14}}{\rm{.4 cm}}} \right)\).

Substituting all known values,

\(\begin{array}{c}{E_a} = \frac{{\left( {{\rm{9}} \times {\rm{1}}{{\rm{0}}^{\rm{9}}}{\rm{ N}} \cdot {{\rm{m}}^{\rm{2}}}/{{\rm{C}}^{\rm{2}}}} \right) \times \left( {{\rm{2}}{\rm{.50 nC}}} \right)}}{{{{\left( {{\rm{14}}{\rm{.4 cm}}} \right)}^{\rm{2}}}}}\\ = \frac{{\left( {{\rm{9}} \times {\rm{1}}{{\rm{0}}^{\rm{9}}}{\rm{ N}} \cdot {{\rm{m}}^{\rm{2}}}/{{\rm{C}}^{\rm{2}}}} \right) \times \left( {{\rm{2}}{\rm{.50 nC}}} \right){\rm{ \times }}\left( {\frac{{{\rm{1}}{{\rm{0}}^{{\rm{ - 9}}}}{\rm{ C}}}}{{{\rm{1 nC}}}}} \right)}}{{{{\left[ {\left( {{\rm{14}}{\rm{.4 cm}}} \right) \times \left( {\frac{{{\rm{1}}{{\rm{0}}^{{\rm{ - 2}}}}{\rm{ m}}}}{{{\rm{1 cm}}}}} \right)} \right]}^{\rm{2}}}}}\\ = {\rm{1085 N}}/{\rm{C}}\end{array}\)

The magnitude of the electric field due to charge\({q_b}\)is,

\({E_b} = \frac{{K{q_b}}}{{{r^2}}}\)

Here,\(K\)is the electrostatic force constant\(\left( {K = {\rm{9}} \times {\rm{1}}{{\rm{0}}^{\rm{9}}}{\rm{ N}} \cdot {{\rm{m}}^{\rm{2}}}/{{\rm{C}}^{\rm{2}}}} \right)\),\({q_b}\)is the magnitude of the charge\(\left( {{q_b} = {\rm{8}}{\rm{.00 nC}}} \right)\), and\(r\)is the distance of the charge from the center of the equilateral triangle\(\left( {r = {\rm{14}}{\rm{.4 cm}}} \right)\).

Substituting all known values,

\(\begin{array}{c}{E_b} = \frac{{\left( {{\rm{9}} \times {\rm{1}}{{\rm{0}}^{\rm{9}}}{\rm{ N}} \cdot {{\rm{m}}^{\rm{2}}}/{{\rm{C}}^{\rm{2}}}} \right) \times \left( {{\rm{8}}{\rm{.00 nC}}} \right)}}{{{{\left( {{\rm{14}}{\rm{.4 cm}}} \right)}^{\rm{2}}}}}\\ = \frac{{\left( {{\rm{9}} \times {\rm{1}}{{\rm{0}}^{\rm{9}}}{\rm{ N}} \cdot {{\rm{m}}^{\rm{2}}}/{{\rm{C}}^{\rm{2}}}} \right) \times \left( {{\rm{8}}{\rm{.00 nC}}} \right) \times \left( {\frac{{{\rm{1}}{{\rm{0}}^{{\rm{ - 9}}}}{\rm{ C}}}}{{{\rm{1 nC}}}}} \right)}}{{{{\left[ {\left( {{\rm{14}}{\rm{.4 cm}}} \right) \times \left( {\frac{{{\rm{1}}{{\rm{0}}^{{\rm{ - 2}}}}{\rm{ m}}}}{{{\rm{1 cm}}}}} \right)} \right]}^{\rm{2}}}}}\\ = {\rm{3472}}{\rm{.2 N}}/{\rm{C}}\end{array}\)

The magnitude of the electric field due to charge\({q_c}\)is,

\({E_c} = \frac{{K{q_c}}}{{{r^2}}}\)

Here,\(K\)is the electrostatic force constant\(\left( {K = {\rm{9}} \times {\rm{1}}{{\rm{0}}^{\rm{9}}}{\rm{ N}} \cdot {{\rm{m}}^{\rm{2}}}/{{\rm{C}}^{\rm{2}}}} \right)\),\({q_c}\)is the magnitude of the charge\(\left( {{q_c} = 1.50{\rm{ nC}}} \right)\), and\(r\)is the distance of the charge from the center of the equilateral triangle\(\left( {r = {\rm{14}}{\rm{.4 cm}}} \right)\).

Substituting all known values,

\(\begin{array}{c}{E_c} = \frac{{\left( {{\rm{9}} \times {\rm{1}}{{\rm{0}}^{\rm{9}}}{\rm{ N}} \cdot {{\rm{m}}^{\rm{2}}}/{{\rm{C}}^{\rm{2}}}} \right) \times \left( {{\rm{1}}{\rm{.50 nC}}} \right)}}{{{{\left( {{\rm{14}}{\rm{.4 cm}}} \right)}^{\rm{2}}}}}\\ = \frac{{\left( {{\rm{9}} \times {\rm{1}}{{\rm{0}}^{\rm{9}}}{\rm{ N}} \cdot {{\rm{m}}^{\rm{2}}}/{{\rm{C}}^{\rm{2}}}} \right) \times \left( {{\rm{1}}{\rm{.50 nC}}} \right) \times \left( {\frac{{{\rm{1}}{{\rm{0}}^{{\rm{ - 9}}}}{\rm{ C}}}}{{{\rm{1 nC}}}}} \right)}}{{{{\left[ {\left( {{\rm{14}}{\rm{.4 cm}}} \right) \times \left( {\frac{{{\rm{1}}{{\rm{0}}^{{\rm{ - 2}}}}{\rm{ m}}}}{{{\rm{1 cm}}}}} \right)} \right]}^{\rm{2}}}}}\\ = {\rm{651 N}}/{\rm{C}}\end{array}\)

The horizontal component of the electric field is,

\(\begin{array}{c}{E_x} = {E_b}\cos \left( {30^\circ } \right) + {E_c}\cos \left( {30^\circ } \right)\\ = \left( {{E_b} + {E_c}} \right) \times \cos \left( {30^\circ } \right)\end{array}\)

Substituting all known values,

\(\begin{array}{c}{E_x} = \left[ {\left( {{\rm{3472}}{\rm{.2 N}}/{\rm{C}}} \right) + \left( {{\rm{651 N}}/{\rm{C}}} \right)} \right] \times {\rm{cos}}\left( {{\rm{30^\circ }}} \right)\\ = {\rm{3570}}{\rm{.8 N}}/{\rm{C}}\end{array}\)

The vertical component of the electric field is,

\({E_y} = - {E_a} - {E_b}\sin \left( {30^\circ } \right) + {E_c}\sin \left( {30^\circ } \right)\)

Substituting all known values,

\(\begin{array}{c}{E_y} = - \left( {1085{\rm{ N}}/{\rm{C}}} \right) - \left( {3472.2{\rm{ N}}/{\rm{C}}} \right) \times \sin \left( {30^\circ } \right) + \left( {651{\rm{ N}}/{\rm{C}}} \right) \times \sin \left( {30^\circ } \right)\\ = - 2495.6{\rm{ N}}/{\rm{C}}\end{array}\)

The direction of the resultant electric field is,

\(\theta = {\tan ^{ - 1}}\left( {\frac{{{E_y}}}{{{E_x}}}} \right)\)

Substituting all known values,

\(\begin{array}{c}\theta = {\tan ^{ - 1}}\left( {\frac{{ - 2495.6{\rm{ N}}/{\rm{C}}}}{{3570.8{\rm{ N}}/{\rm{C}}}}} \right)\\ = - 34.9^\circ \end{array}\)

The magnitude of the resultant field is,

\(E = \sqrt {E_x^2 + E_y^2} \)

Substituting all known values,

\(\begin{array}{c}E = \sqrt {{{\left( {3570.8{\rm{ N}}/{\rm{C}}} \right)}^2} + {{\left( { - 2495.6{\rm{ N}}/{\rm{C}}} \right)}^2}} \\ = 4.36 \times {10^3}{\rm{ N}}/{\rm{C}}\end{array}\)

Hence, the electric field at the center of the equilateral triangle is \(4.36 \times {10^3}{\rm{ N}}/{\rm{C}}\) and is directed \(34.9^\circ \) below the positive \(x\)-axis.

The electric field at the center will be zero when the following two conditions are satisfied:

• The charges are symmetric (have same magnitude) towards the center so that the force on the test charge is zero.
• The charge on one of them is opposite, so that it balances the force on the test charge.

Hence, any configuration other than\({q_a} = {q_b} = {q_c}\)will not produce a zero electric field at the center of the triangular configuration.
