Consider identical spherical conducting space ships in deep space where gravitational fields from other bodies are negligible compared to the gravitational attraction between the ships. Construct a problem in which you place identical excess charges on the space ships to exactly counter their gravitational attraction. Calculate the amount of excess charge needed. Examine whether that charge depends on the distance between the centers of the ships, the masses of the ships, or any other factors. Discuss whether this would be an easy, difficult, or even impossible thing to do in practice.

Short Answer

Expert verified

(a) In order to counteract the gravitational attraction a ship must have\(4.3 \times {10^{ - 5}}{\rm{ C}}\) charge on them. (b) No, the charge on the ship is unaffected by the distance between the ships' centres.

Step by step solution

01

Gravitational force of attraction

According to the universal law of gravitational, every object attracts another object towards its center with a force known as gravitational force. The gravitational force exists due to the mass of the object.

02

Construction of problem

The two identical spaceships of mass \(5 \times {10^5}{\rm{ kg}}\) are \(50{\rm{ m}}\) from each other. (a) How much charge should each ship carry to counteract the gravitational attraction between them? (b) Is the charge on the ship affected by the distance between the ships' centres?

03

(a) Charge on the spaceship

The gravitational force of attraction between two identical space ships of mass \(m\) and separated by a distance \(r\) is,

\({F_g} = \frac{{G{m^2}}}{{{r^2}}}\)

Here, \(G\) is the universal gravitational constant.

The electrostatic force between two identical space ships having same magnitude of charge \(q\) and separated by a distance \(r\) is,

\({F_e} = \frac{{K{q^2}}}{{{r^2}}}\)

Here, \(K\) is the electrostatic force constant.

Since, the gravitational force of attraction is balanced by the electrostatic force. Therefore,

\(\begin{array}{c}{F_e} = {F_g}\\\frac{{K{q^2}}}{{{r^2}}} = \frac{{G{m^2}}}{{{r^2}}}\end{array}\)

Rearranging the above expression in order to get an expression for the charge,

\(q = \sqrt {\frac{{G{m^2}}}{K}} \ldots \left( {1.1} \right)\)

Substitute \(6.67 \times {10^{ - 11}}{\rm{ N}} \cdot {{\rm{m}}^2}/{\rm{k}}{{\rm{g}}^2}\) for \(G\), \(5 \times {10^5}{\rm{ kg}}\) for \(m\), and \(9 \times {10^9}{\rm{ N}} \cdot {{\rm{m}}^2}/{{\rm{C}}^2}\)for\(K\),

\(\begin{array}{c}q = \sqrt {\frac{{\left( {6.67 \times {{10}^{ - 11}}{\rm{ N}} \cdot {{\rm{m}}^2}/{\rm{k}}{{\rm{g}}^2}} \right) \times {{\left( {5 \times {{10}^5}{\rm{ kg}}} \right)}^2}}}{{\left( {9 \times {{10}^9}{\rm{ N}} \cdot {{\rm{m}}^2}/{{\rm{C}}^2}} \right)}}} \\ = 4.3 \times {10^{ - 5}}{\rm{ C}}\end{array}\)

Hence, the charge on the ship is \(4.3 \times {10^{ - 5}}{\rm{ C}}\).

04

(b) Effect of distance

From equation \(\left( {1.1} \right)\), it is clear that the charge is independent of the distance between the centers of space ship.

Hence, the charge on the ship does not depend on the distance between the centers of the ships.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Are the direction and magnitude of the Coulomb force unique at a given point in space? What about the electric field?

(a) Calculate the electric field strength near a 10.0 cm diameter conducting sphere that has 1.00 C of excess charge on it. (b) What is unreasonable about this result? (c) Which assumptions are responsible?

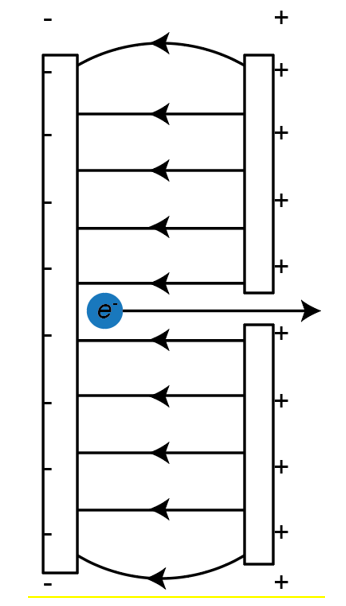

A simple and common technique for accelerating electrons is shown in Figure 18.55, where there is a uniform electric field between two plates. Electrons are released, usually from a hot filament, near the negative plate, and there is a small hole in the positive plate that allows the electrons to continue moving. (a) Calculate the acceleration of the electron if the field strength is\(2.50 \times {10^4}{\rm{ N/C}}\). (b) Explain why the electron will not be pulled back to the positive plate once it moves through the hole.

Figure 18.55 Parallel conducting plates with opposite charges on them create a relatively uniform electric field used to accelerate electrons to the right. Those that go through the hole can be used to make a TV or computer screen glow or to produce X-rays.

Given the polar character of water molecules, explain how ions in the air form nucleation centers for rain droplets.

Compare and contrast the Coulomb force field and the electric field. To do this, make a list of five properties for the Coulomb force field analogous to the five properties listed for electric field lines. Compare each item in your list of Coulomb force field properties with those of the electric field—are they the same or different? (For example, electric field lines cannot cross. Is the same true for Coulomb field lines?)
