(a) What is the direction and magnitude of an electric field that supports the weight of a free electron near the surface of Earth? (b) Discuss what the small value for this field implies regarding the relative strength of the gravitational and electrostatic forces.

Short Answer

Expert verified

(a) The magnitude of an electric field that supports the weight of a free electron near the surface of Earth is and it is directed towards the surface of Earth. (b) The gravitational force is very weak as compared to the Coulomb force.

Step by step solution

01

Weight

The force exerted on a mass placed in the gravitational field is known as weight. Theexpression for the weight is,

Fg=mg

Here, m represents mass of an electron and grepresents acceleration due to earth’s gravity.

02

(b) Magnitude of the electric field

When an electron is placed in an electric field, the electrostatic force or Coulomb force acting on the electron is,

Fe = qE

Here, q is the charge on the electron (q=-1.6×10-19C), and E is the strength of the electric field.

To support the weight of the free electron near the surface of Earth, the electrostatic force on the charge due to electric field must be equal to the weight of the electron. Therefore,

Fe= Fg

qE = mg

Here, g is the charge on the electron q=-1.6×10-19C , E is the strength of the electric field, m is the mass of the electron m=9.1×10-31kg , and E is the acceleration due to Earth’s gravitational force near the surface g=9.81m/s2.

The expression for the electric field is,

E=mgq

Substituting all known values,

role="math" localid="1653733373369" E=9.1×10-31kg×9.81m/s2-1.6×10-19C=-5.58×10-11N/C

Here, negative sign indicates that the electric field is directed downwards.

Hence, the magnitude of an electric field that supports the weight of a free electron near the surface of Earth is 5.58×10-11N/Cand it is directed towards the surface of Earth.

03

(b) Comparing forces

Since a much smaller electric field is needed to create the same magnitude of force as gravity.

Hence, the electrostatic force is much stronger than gravity.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

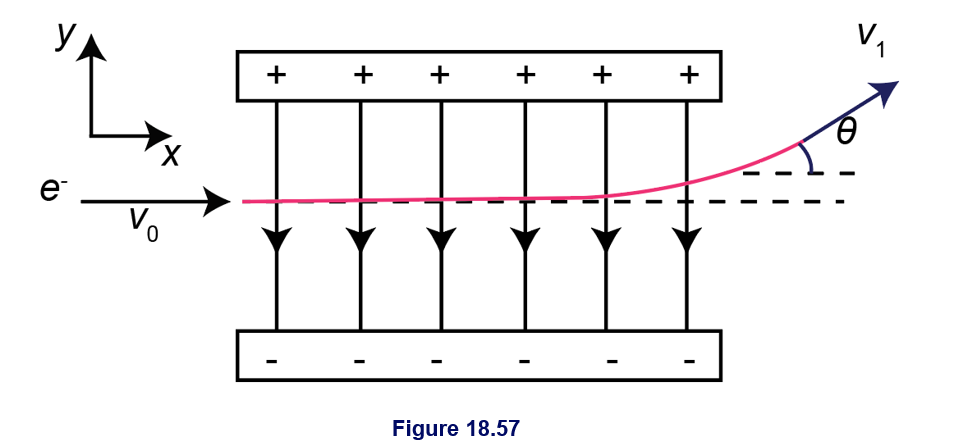

Figure 18.57 shows an electron passing between two charged metal plates that create an\(100{\rm{ N}}/{\rm{C}}\)vertical electric field perpendicular to the electron’s original horizontal velocity. (These can be used to change the electron’s direction, such as in an oscilloscope.) The initial speed of the electron is\(3.00 \times {10^6}{\rm{ m}}/{\rm{s}}\), and the horizontal distance it travels in the uniform field is\(4.00{\rm{ cm}}\). (a) What is its vertical deflection? (b) What is the vertical component of its final velocity? (c) At what angle does it exit? Neglect any edge effects.
