The article 鈥淐oncrete Pressure on Formwork鈥 (Mag. of Concrete Res., 2009: 407鈥417) gave the following observations on maximum concrete pressure (kN/m2 ):

33.2 41.8 37.3 40.2 36.7 39.1 36.2 41.8

36.0 35.2 36.7 38.9 35.8 35.2 40.1

a.Is it plausible that this sample was selected from a normal population distribution?

b. Calculate an upper confidence bound with confidence level 95% for the population standard deviation of maximum pressure.

Short Answer

Expert verified

a) Yes, It is plausible.

b) The upper confidence bound with confidence level of \(95\% \) for \(\sigma \) is \(1.834\).

Step by step solution

01

Step 1:Sample variance and Sample deviation:

The sample variance\({s^2}\)is \({s^2} = \frac{1}{{n - 1}} \cdot {S_{xx}}\)

Where

\(\begin{array}{l}{S_{xx}} = \sum {({x_i} - \overline x } {)^2}\\ = \sum {{x_i}^2} - \frac{1}{n} \cdot {\left( {\sum {{x^i}} } \right)^2}\end{array}\)

The sample standard deviation \(s\)is,\(s = \sqrt {{s^2}} \),

\(s = \sqrt {\frac{1}{{n - 1}} \cdot {S_{xx}}} \)

02

Solution for part a).

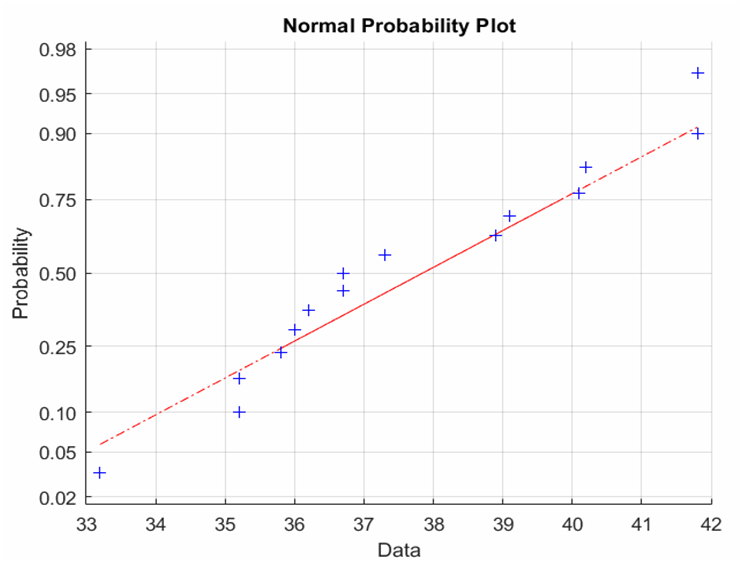

From the normal probability plot, we can say that it is plausible that the sample was taken from a normal population distribution.

03

Solution for part b).

An upper confidence bound for standard deviation with confidence level \(100(1 - \alpha )\% \) can be computed using formula

\(\sqrt {\frac{{(n - 1){s^2}}}{{{X^2}_{1 - \alpha ,n - 1}}}} \)

Using the standard variance and standard deviation formulas, it is easy to obtain the sample standard deviation, and it is,

\(s = 1.579\)

There are total of \(n = 15\) observations.

In order to obtain \(95\% CI\) for \(\sigma \), value \(\alpha \)is needed and can be obtain as,

\(\begin{array}{l}100(1 - \alpha ) = 95\\\alpha = 0.05\end{array}\)

The only missing value for the upper confidence interval is,

\(\begin{array}{l}{X^2}_{1 - \alpha ,n - 1} = {X^2}_{0.95,14}\\{X^2}_{1 - \alpha ,n - 1} = 6.571\end{array}\)

Therefore, the upper confidence bound with confidence level of \(95\% \)for\(\sigma \) is

\(\begin{array}{l}\sqrt {\frac{{(n - 1){s^2}}}{{{X^2}_{1 - \alpha ,n - 1}}}} = \sqrt {\frac{{14(1.579)}}{{6.571}}} \\ = 1.834\end{array}\)

Hence, The upper confidence bound with confidence level of \(95\% \) for \(\sigma \) is \(1.834\)..

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The article 鈥淢easuring and Understanding the Aging of Kraft Insulating Paper in Power Transformers鈥 contained the following observations on degree of polymerization for paper specimens for which viscosity tim\({\rm{418 421 421 422 425 427 431 434 437 439 446 447 448 453 454 463 465}}\)es concentration fell in a certain middle range:

a. Construct a boxplot of the data and comment on any interesting features.

b. Is it plausible that the given sample observations were selected from a normal distribution?

c. Calculate a two-sided \({\rm{95\% }}\)confidence interval for true average degree of polymerization (as did the authors of the article). Does the interval suggest that \({\rm{440}}\) is a plausible value for true average degree of polymerization? What about \({\rm{450}}\)?

Ultra high performance concrete (UHPC) is a rela- tively new construction material that is characterized by strong adhesive properties with other materials. The article 鈥淎dhesive Power of Ultra High Performance Concrete from a Thermodynamic Point of View鈥 described an investigation of the intermolecular forces for UHPC connected to various substrates. The following work of adhesion measurements (in mJ/m2) for UHPC specimens adhered to steel appeared in the article:

\({\rm{107}}{\rm{.1\;109}}{\rm{.5\;107}}{\rm{.4\;106}}{\rm{.8\;108}}{\rm{.1}}\)

a. Is it plausible that the given sample observations were selected from a normal distribution?

b. Calculate a two-sided \({\rm{95\% }}\) confidence interval for the true average work of adhesion for UHPC adhered to steel. Does the interval suggest that \({\rm{107}}\) is a plausible value for the true average work of adhesion for UHPC adhered to steel? What about \({\rm{110}}\)?

c. Predict the resulting work of adhesion value resulting from a single future replication of the experiment by calculating a \({\rm{95\% }}\)prediction interval, and compare the width of this interval to the width of the CI from (b).

d. Calculate an interval for which you can have a high degree of confidence that at least \({\rm{95\% }}\)of all UHPC specimens adhered to steel will have work of adhesion values between the limits of the interval.

Determine the following:

a. The 95th percentile of the chi-squared distribution with \({\rm{v = 10}}\)

b. The 5th percentile of the chi-squared distribution with\({\rm{v = 10}}\)

\(\begin{array}{l}{\rm{c}}{\rm{.P}}\left( {{\rm{10}}{\rm{.98拢 }}{{\rm{\chi }}^{\rm{2}}}{\rm{拢 36}}{\rm{.78}}} \right){\rm{,where }}{{\rm{\chi }}^{\rm{2}}}{\rm{ is achi - squared rv with \nu = 22}}\\{\rm{d}}{\rm{.P}}\left( {{{\rm{\chi }}^{\rm{2}}}{\rm{ < 14}}{\rm{.611}}} \right.{\rm{ or }}\left. {{{\rm{\chi }}^{\rm{2}}}{\rm{ > 37}}{\rm{.652}}} \right){\rm{,where }}{{\rm{\chi }}^{\rm{2}}}{\rm{ is achi squared rv with \nu = 25}}\end{array}\)

a.Use the results of Example 7.5 to obtain a 95% lower confidence bound for the parameter of an exponential distribution, and calculate the bound based on the data given in the example.

b.If lifetime X has an exponential distribution, the probability that lifetime exceeds t is P(X>t) = e-位迟. Use the result of part (a) to obtain a 95% lower confidence bound for the probability that breakdown time exceeds 100 min.

The amount of lateral expansion (mils) was determined for a sample of n=\({\rm{9}}\)pulsed-power gas metal arc welds used in LNG ship containment tanks. The resulting sample standard deviation was s=\({\rm{2}}{\rm{.81}}\)mils. Assuming normality, derive a \({\rm{95\% }}\)CI for s2 and for s.
