The data are provided that consists of 77 observations on the noise level experienced by each individual.

The class width should be equal to 5. The following table shows three columns namely class, frequency and relative frequency:

Use this formula to calculate relative frequency of each data set,

\(relative{\rm{ }}frequency{\rm{ }}of{\rm{ }}a{\rm{ }}value = \frac{{number{\rm{ }}of{\rm{ }}times{\rm{ }}the{\rm{ }}value{\rm{ }}occurs}}{{number{\rm{ }}of{\rm{ }}observations{\rm{ }}in{\rm{ }}the{\rm{ }}data{\rm{ }}set}}\)

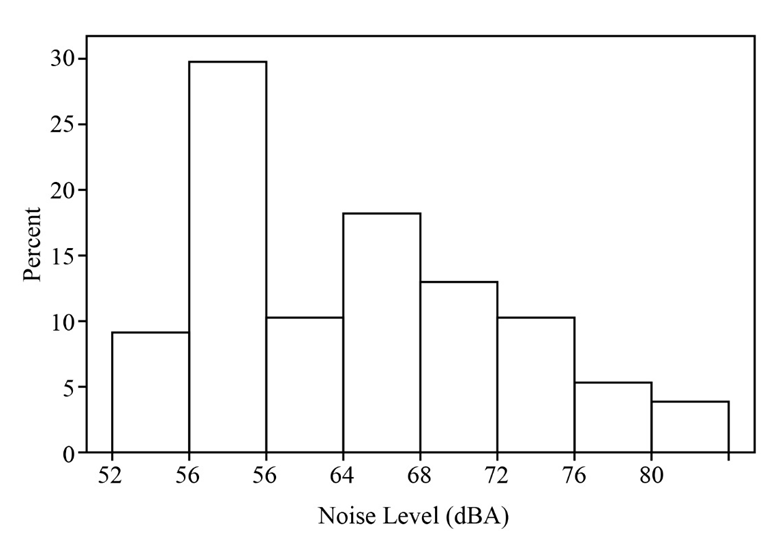

Following are the steps to make a histogram:

1. On the vertical axis, place the frequencies and label this axis as 鈥淧ercent鈥�.

2. On the horizontal axis, place the lower value of each interval. Label this axis as 鈥淣oise Level (dBA).

3. Draw a bar extending from the lower value of each interval to the lower value of the next interval. The height of each bar should be equal to the frequency of its corresponding interval.

With a positive skew, the histogram is bimodal but near to unimodal. Almost one-third of the data values are concentrated in the class interval 50-60.

The five-number summary is smallest \({x_i}\), lower fourth, median, upper fourth and largest\({x_i}\).Since sample size of test is odd, the median is the\({\left( {\frac{{n + 1}}{2}} \right)^{th}}\)ordered value when the data are in ascending order as below.

The smallest value is: 55.3 and the largest value is: 83.

Let \(\tilde x\) be the required median. Use the formula to calculate median when n is odd,

\(\tilde x = {\left( {\frac{{n + 1}}{2}} \right)^{th}}\,ordered\,value\)

\(\begin{aligned}\tilde x &= {\left( {\frac{{77 + 1}}{2}} \right)^{th}}\\ &= {39^{th\,}}observation\\ &= 64.7\end{aligned}\)

The lower fourth is the median of smallest half of the data as the median of the data is \(\tilde x = 64.7\)so lower half contains 41 values.

Since \(n = 41\)is odd, calculate the median using the formula:

\(\tilde x = {\left( {\frac{{n + 1}}{2}} \right)^{th}}\,ordered\,value\)

\(\begin{aligned}\tilde x &= {\left( {\frac{{41 + 1}}{2}} \right)^{th}}\,ordered\,value\\ &= {21^{th\,}}observation\\ &= 57.8\end{aligned}\)

Similarly, the upper fourth is the median of largest half of the data as the median of the data is\(\tilde x = 64.7\) so it contains 36 values.

Since \(n = 36\)is even, calculate the median using the formula:

\(\tilde x = \frac{{{{\left( {\frac{n}{2}} \right)}^{th}} + {{\left( {\frac{n}{2} + 1} \right)}^{th}}\,ordered\,value}}{2}\)

\(\begin{aligned}\tilde x &= \frac{{{{\left( {\frac{{36}}{2}} \right)}^{th}} + {{\left( {\frac{{36}}{2} + 1} \right)}^{th}}ordered\,value}}{2}\\ &= \frac{{\left( {70.4 + 71.2} \right)}}{2}\\ &= 70.8\end{aligned}\)

Thus, the five-number summary to construct boxplot are as follows:

Smallest \({x_i}\): 55.3, lower fourth: 57.8, median: 64.7, upper fourth: 70.8,

largest \({x_i}\): 83.

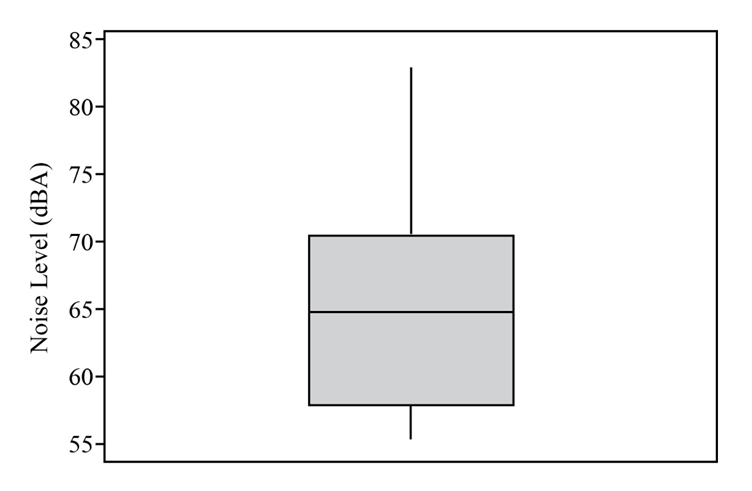

Following are the steps to make boxplot by hand:

1. Draw a plot line of range 55 to 85.

2. Draw three horizontal lines that consists of first quartile, second quartile and third quartile and make two vertical lines to make it in rectangular form like a box for given data.

3. Draw whiskers on both sides of a boxplot and set the minimum and maximum value with respect to the obtained lower fence and upper fence.
