A \(12\)-in. bar that is clamped at both ends is to be subjected to an increasing amount of stress until it snaps. Let Y = the distance from the left end at which the break occurs. Suppose Y has pdf

\(f\left( y \right) = \left\{ {\begin{array}{*{20}{c}}{\left( {\frac{1}{{24}}} \right)y\left( {1 - \frac{y}{{12}}} \right)\,\,\,\,\,0 \le y \le 12}\\{0\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,otherwise}\end{array}} \right.\)

Compute the following: a. The cdf of Y, and graph it. b.\(P\left( {Y \le 4} \right), P\left( {Y > 6} \right)\), and\(P\left( {4 \le Y \le 6} \right)\)c. E(Y), E(Y2 ), and V(Y) d. The probability that the breakpoint occurs more than \(2\;\)in. from the expected breakpoint. e. The expected length of the shorter segment when the break occurs.

Short Answer

Expert verified

\(\begin{array}{l}(a)\;F(x) = \left\{ {\begin{array}{*{20}{l}}0&{y < 0}\\{\frac{{{y^2}}}{{48}} - \frac{{{y^3}}}{{864}}}&{0 \le y \le 12}\\1&{y > 12}\end{array}} \right.\\(b)\;0.2592,\;0.5,\;0.2408\\(c)\;6,\;43.2,\;7.2\\(d)\;0.5185\\(e)\;3.75\end{array}\)

Step by step solution

01

Definition of Expected Value

The anticipated value is an extension of the weighted average in probability theory. The average score of a large number of randomly determined outcomes of a random variable is known as the expected value.

02

Calculation for the determination of CDF of Y in part a.

It is given that Y is the distance from the left end at which the break occurs. It is also given that Y has pdf \({\rm{f}}({\rm{y}})\), written as:

\(f(y) = \left\{ {\begin{array}{*{20}{l}}{\left( {\frac{1}{{24}}} \right) \cdot y \cdot \left( {1 - \frac{y}{{12}}} \right)}&{0 \le y \le 12}\\0&{{\rm{ otherwise }}}\end{array}} \right.\)

(a) We recall the definition of CDF as a continuous variable.

Definition: The cumulative distribution function F(y) for a continuous \(rv\;Y\)is defined for every number y by

\(F(y) = P(Y \le y) = \int_{ - \infty }^y f (x) \cdot dx\)

For any number y between \(0{\rm{ }}and{\rm{ }}12\)

03

Calculation for the determination of CDF of Y in part a.

\(\begin{aligned}F(y) & = \int_0^y {\left( {\frac{1}{{24}}} \right)} \cdot x \cdot \left( {1 - \frac{x}{{12}}} \right)\\ &= \frac{1}{{24}} \cdot \int_0^y {\left( {x - \frac{{{x^2}}}{{12}}} \right)} \cdot dx\\ & = \frac{1}{{24}} \cdot \left( {\frac{{{x^2}}}{2} - \frac{{{x^3}}}{{36}}} \right)_0^y\\ & = \frac{1}{{24}} \cdot \left( {\frac{{{y^2}}}{2} - \frac{{{y^3}}}{{36}}} \right)\\F(y) & = \frac{{{y^2}}}{{48}} - \frac{{{y^3}}}{{864}}\end{aligned}\)

Thus F(y) can be given as:

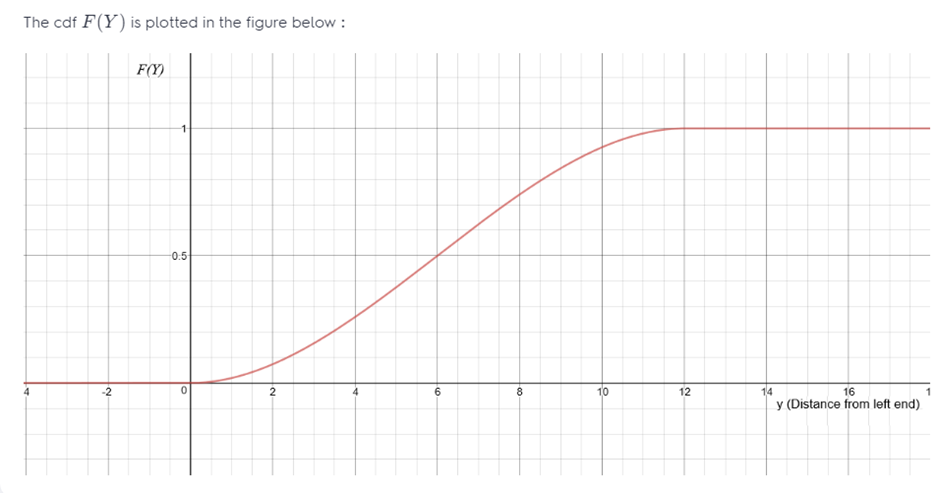

\(F(y) = \left\{ {\begin{aligned}{{0}}&{y < 0}\\{\frac{{{y^2}}}{{48}} - \frac{{{y^3}}}{{864}}}&{0 \le y \le 12}\\1&{y > 12}\end{aligned}} \right.\)

04

Calculation for the determination of probability in part b.

(b) Computing\(P(X \le 4)\):

\(\begin{aligned}{l}P(X \le 4) & = F(4) = \frac{{{{(4)}^2}}}{{48}} - \frac{{{{(4)}^3}}}{{864}}\\\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\, & = \frac{1}{3} - \frac{2}{{27}} = \frac{9}{{27}} - \frac{2}{{27}}\\\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\, & = \frac{7}{{27}}\\P(X \le 4) &= 0.2592\end{aligned}\)

Computing\(P(6 < Y)\):

\(\begin{aligned}{l}P(6 < Y) & = 1 - F(6)\\\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\, & = 1 - \left( {\frac{{{{(6)}^2}}}{{48}} - \frac{{{{(6)}^3}}}{{864}}} \right)\\\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\, & = 1 - \left( {\frac{3}{4} - \frac{1}{4}} \right) = 1 - (0.5)\\P(6 < Y) & = 0.5\end{aligned}\)

05

Calculation for the determination of probability in part b.

Computing\(P(4 \le Y \le 6)\):

\(\begin{aligned}{l}P(4 \le Y \le 6) & = F(6) - F(4)\\\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\, & = 0.5 - 0.2592\\P(4 \le X \le 6) & = 0.2408\end{aligned}\)

Proposition: Let X be a continuous rv with p d f(x) and cdf F(x). Then for any number a,

\(\begin{aligned}{l}P(X \le a) & = F(a)\\P(a \le X) & = 1 - F(a)\end{aligned}\)

Proposition: Let\({\rm{X}}\)be a continuous rv with \(pdf({\rm{x}})\) and \(cdf\;{\rm{F}}({\rm{x}})\). Then for any two numbers a and b with a<b,

\(P(a \le X \le b) = F(b) - F(a)\)

06

Calculation for the determination of probability in part c.

(c) The mean value of the given distribution can be given as:

\(\begin{aligned}E(Y) & = \int_{ - \infty }^\infty y \cdot f(y) \cdot dy\\ & = \int_0^{12} y \cdot \left( {\frac{1}{{24}}} \right) \cdot y \cdot \left( {1 - \frac{y}{{12}}} \right) \cdot dx\\ & = \frac{1}{{24}} \cdot \int_0^{12} {\left( {{y^2} - \frac{{{y^3}}}{{12}}} \right)} \cdot dx\\ & = \frac{1}{{24}} \cdot \left( {\frac{{{{(y)}^3}}}{3} - \frac{{{{(y)}^4}}}{{48}}} \right)_0^{12}\\ & = \frac{1}{{24}} \cdot \left( {\frac{{{{(12)}^3}}}{3} - \frac{{{{(12)}^4}}}{{48}}} \right)\\E(Y) & = 6\end{aligned}\)

Definition: The expected or mean value of a continuous r v X with pdf f(x) is

\(\mu = E(X) = \int_{ - \infty }^\infty x \cdot f(x) \cdot dx\)

07

Calculation for the determination of probability in part c.

\(\begin{aligned}E\left( {{Y^2}} \right) & = \int_{ - \infty }^\infty {{y^2}} \cdot f(y) \cdot dy\\ & = \int_0^{12} {{y^2}} \cdot \left( {\frac{1}{{24}}} \right) \cdot y \cdot \left( {1 - \frac{y}{{12}}} \right) \cdot dx\\ & = \frac{1}{{24}} \cdot \int_0^{12} {\left( {{y^3} - \frac{{{y^4}}}{{12}}} \right)} \cdot dx\\ & = \frac{1}{{24}} \cdot \left( {\frac{{{{(y)}^4}}}{4} - \frac{{{{(y)}^5}}}{{60}}} \right)_0^{12}\\ & = \frac{1}{{24}} \cdot \left( {\frac{{{{(12)}^4}}}{4} - \frac{{{{(12)}^5}}}{{60}}} \right)\\E\left( {{Y^2}} \right) & = 43.2\end{aligned}\)

As we have already calculated E(X) in the last part: \(E(Y) = 6\), hence we use following proposition:

Proposition:\(V(Y) = E\left( {{Y^2}} \right) - E{(Y)^2}\)

Using this, we can write:

\(\begin{array}{l}V(Y) = 43.2 - {(6)^2}\\V(Y) = 7.2\end{array}\)

Definition: If \({\rm{X}}\)is a continuous \({\rm{rv}}\)with pdf f(x) and h(X) is any function of \({\rm{X}}\), then

\(E(h(x)) = \int_{ - \infty }^\infty h (x) \cdot f(x) \cdot dx\)

08

Calculation for the determination of probability in part d.

(d) Since the expected break point is calculated as\(6\)inches in last part, hence the probability that the break point occurs more than 2 inches from the expected break point can be represented as \(P(Y < 4\,or\,Y > 8)\).

This event is the complement of the event that the break point occurs within 2 inches from the expected break point. Hence

\(\begin{array}{l}P(Y < 4{\rm{ or }}Y > 8) & = 1 - P(4 \le Y \le 8)\\\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\, & = 1 - (F(8) - F(4))\\\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\, & = 1 - \left( {\left( {\frac{{{{(8)}^2}}}{{48}} - \frac{{{{(8)}^3}}}{{864}}} \right) - \left( {\frac{{{{(4)}^2}}}{{48}} - \frac{{{{(4)}^3}}}{{864}}} \right)} \right)\\\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\, & = 1 - \left( {\frac{{(20}}{{27}} - \frac{7}{{27}}} \right) & = \frac{{14}}{{27}}\\P(Y < 4{\rm{ or }}Y > 8) & = 0.5185\end{array}\)

09

Calculation for the determination of probability in part e.

(e) Let X be the random variable denoting the length of the shorter segment when the break occurs. Then we can write X in terms of Y as:

\(x = \left\{ {\begin{array}{*{20}{l}}y&{0 \le y \le 6}\\{12 - y}&{6 < y \le 12}\end{array}} \right.\)

Hence expected value of X can be written as:

\(\begin{aligned}E(X) & = \int_0^6 y \cdot f(y) \cdot dy + \int_6^{12} {(12 - y)} \cdot f(y) \cdot dy\\ & = \int_0^6 y \cdot \left( {\frac{1}{{24}}} \right) \cdot y \cdot \left( {1 - \frac{y}{{12}}} \right) \cdot dx + \int_6^{12} {(12 - y)} \cdot \left( {\frac{1}{{24}}} \right) \cdot y \cdot \left( {1 - \frac{y}{{12}}} \right) \cdot dx\\ & = \frac{1}{{24}} \cdot \int_0^6 {\left( {{y^2} - \frac{{{y^3}}}{{12}}} \right)} \cdot dx + \frac{1}{2} \cdot \int_6^{12} {\left( {y - \frac{{{y^2}}}{{12}}} \right)} \cdot dx - \frac{1}{{24}} \cdot \int_6^{12} {\left( {{y^2} - \frac{{{y^3}}}{{12}}} \right)} \cdot dx\\ & = \frac{1}{{24}} \cdot \left( {\frac{{{y^3}}}{3} - \frac{{{y^4}}}{{48}}} \right)_0^6 + \frac{1}{2} \cdot \left( {\frac{{{y^2}}}{2} - \frac{{{y^3}}}{{36}}} \right)_6^{12} - \frac{1}{{24}} \cdot \left( {\frac{{{y^3}}}{3} - \frac{{{y^4}}}{{48}}} \right)_6^{12}\\ & = \frac{1}{{24}} \cdot {\left( {\frac{{{6^3}}}{3} - \frac{{{6^4}}}{{48}}} \right)_1} + \frac{1}{2} \cdot \left( {\left( {\frac{{{{12}^2}}}{2} - \frac{{{{12}^3}}}{{36}}} \right) - \left( {\frac{{{6^2}}}{2} - \frac{{{6^3}}}{{36}}} \right)} \right) - \frac{1}{{24}} \cdot \left( {\left( {\frac{{{{12}^3}}}{3} - \frac{{{{12}^4}}}{{48}}} \right) - \left( {\frac{{{6^3}}}{3} - \frac{{{6^4}}}{{48}}} \right)} \right)\\E(Y) & = \frac{{15}}{8} + 6 - \frac{{33}}{8} & = 3{\rm{ inches }}\end{aligned}\)
