The article 鈥淎 Model of Pedestrians鈥 Waiting Times for Street Crossings at Signalized Intersections鈥 (Transportation Research, \({\rm{2013: 17--28}}\)) suggested that under some circumstances the distribution of waiting time X could be modelled with the following pdf:

\({\rm{f(x;\theta ,\tau ) = }}\left\{ {\begin{array}{*{20}{c}}{\frac{{\rm{\theta }}}{{\rm{\tau }}}{{{\rm{(1 - x/\tau )}}}^{{\rm{\theta - 1}}}}}&{{\rm{0}} \le {\rm{x < \tau }}}\\{\rm{0}}&{{\rm{ otherwise }}}\end{array}} \right.\)

a. Graph \({\rm{f(x;\theta ,80)}}\) for the three cases \({\rm{\theta = 4,1}}\) and \({\rm{.5}}\) (these graphs appear in the cited article) and comment on their shapes. b. Obtain the cumulative distribution function of X. c. Obtain an expression for the median of the waiting time distribution. d. For the case \({\rm{\theta = 4,\tau = 80}}\) calculate \({\rm{P(50}} \le {\rm{X}} \le {\rm{70)}}\) without at this point doing any additional integration.

Short Answer

Expert verified

(a)The values are

\({\rm{\theta = 1}}\): Consistent

\({\rm{\theta > 1}}\): Right-handed skewed (or positively skewed)

\({\rm{\theta < 1}}\): Left-leaning (or negatively skewed)

(b)The function is

(c)The median is\({\rm{\tau - }}\frac{{\rm{\tau }}}{{{{\rm{2}}^{{\rm{1/\theta }}}}}}\).

(d) The probability is \({\rm{1}}{\rm{.95\% }}\).

Step by step solution

01

Define integration

The calculation of an integral is known as integration. Integrals are used in mathematics to calculate a variety of useful quantities such as areas, volumes, displacement, and so on. When we talk about integrals, we usually mean definite integrals.

02

Explanation

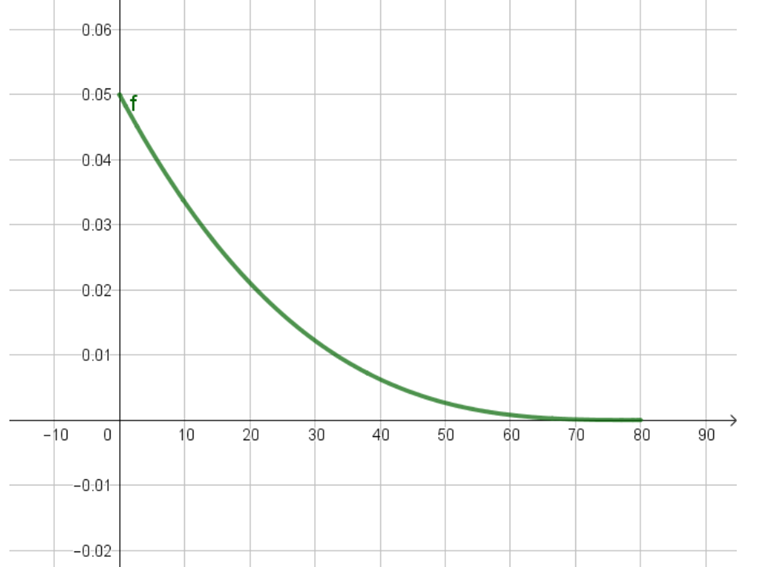

(a) Determine the \({\rm{f(x;\theta ,\tau )}}\) equation with \({\rm{\tau = 80}}\) and \({\rm{\theta = 4}}\) :

\(\begin{gathered}f(x;4,80) &= \left\{ {\begin{array}{*{20}{c}}{\frac{4}{{80}}{{\left( {1 - \frac{x}{{80}}} \right)}^{4 - 1}}}&{0 \leqslant x < 80} \\ 0&{{\text{ }}otherwise{\text{ }}} \end{array}} \right. \\ &= \left\{ {\begin{array}{*{20}{c}}{\frac{1}{{20}}{{\left( {1 - \frac{x}{{80}}} \right)}^3}}&{0 \leqslant x < 80} \\ 0&{{\text{ }}otherwise{\text{ }}} \end{array}} \right. \\ \end{gathered} \)

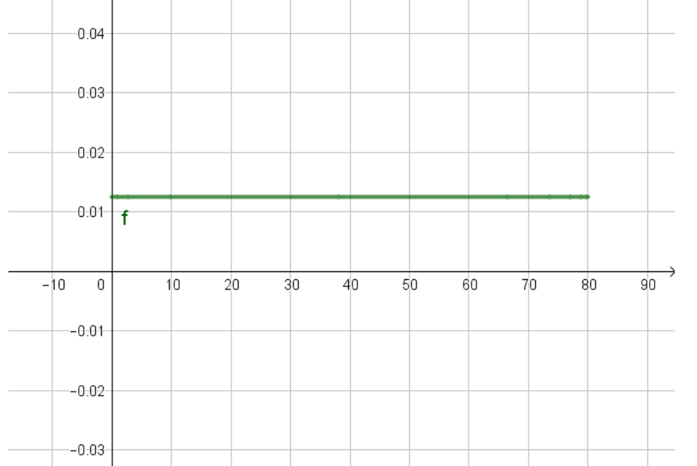

Determine the \({\rm{f(x;\theta ,\tau )}}\) equation with \({\rm{\tau = 80}}\) and \({\rm{\theta = 1}}\) :

\(\begin{gathered}f(x;1,80) &= \left\{ {\begin{array}{*{20}{c}}{\frac{1}{{80}}{{\left( {1 - \frac{x}{{80}}} \right)}^{1 - 1}}}&{0 \leqslant x < 80} \\ 0&{{\text{ }}otherwise{\text{ }}} \end{array}} \right. \\ &= \left\{ {\begin{array}{*{20}{c}}{\frac{1}{{80}}{{\left( {1 - \frac{x}{{80}}} \right)}^0}}&{0 \leqslant x < 80} \\ 0&{{\text{ }}otherwise{\text{ }}}\end{array}} \right. \\ &= \left\{ {\begin{array}{*{20}{c}}{\frac{1}{{80}}}&{0 \leqslant x < 80} \\ 0&{{\text{ }}otherwise{\text{ }}} \end{array}} \right. \\ \end{gathered} \)

03

Evaluating the values

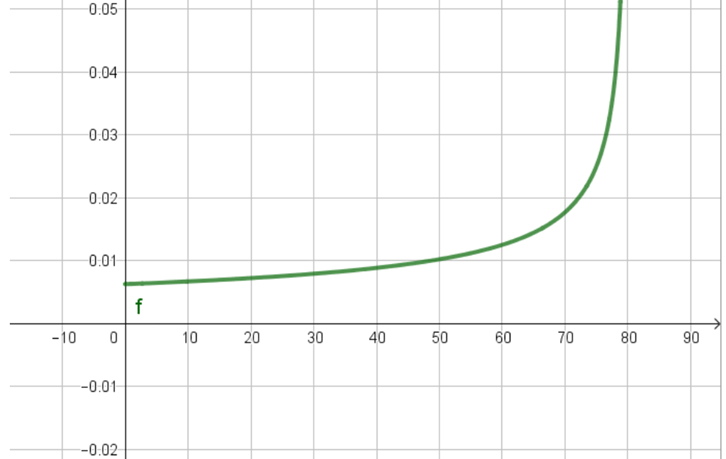

\({\rm{\theta = 0}}{\rm{.5}}\)

Determine the \({\rm{f(x;\theta ,\tau )}}\) equation with \({\rm{\tau = 80}}\) and \({\rm{\theta = 0}}{\rm{.5}}\) :

\(\begin{aligned}{\rm{f(x;0}}.5,80) &= \left\{ {\begin{array}{*{20}{c}}{\frac{{{\rm{0}}{\rm{.5}}}}{{{\rm{80}}}}{{\left( {{\rm{1 - }}\frac{{\rm{x}}}{{{\rm{80}}}}} \right)}^{{\rm{0}}{\rm{.5 - 1}}}}}&{{\rm{0}} \le {\rm{x < 80}}}\\{\rm{0}}&{{\rm{ otherwise }}}\end{array}} \right.\\&= \left\{ {\begin{array}{*{20}{c}}{\frac{{\rm{1}}}{{{\rm{160}}}}{{\left( {{\rm{1 - }}\frac{{\rm{x}}}{{{\rm{80}}}}} \right)}^{{\rm{ - 0}}{\rm{.5}}}}}&{{\rm{0}} \le {\rm{x < 80}}}\\{\rm{0}}&{{\rm{ otherwise }}}\end{array}} \right.\end{aligned}\)

Therefore,

Because the graph is a horizontal line, we can see that the distribution is uniform if \({\rm{\theta = 1}}\).

If \({\rm{\theta > 1}}\), the distribution is skewed to the right (or positively skewed), because the peak is to the left for \({\rm{\theta = 4}}\).

Because the peak in the distribution is to the right for \({\rm{\theta = 0}}{\rm{.5}}\), the distribution is skewed to the left (or negatively skewed) \({\rm{\theta < 1}}\).

04

Explanation

(b)The integral of the pdf\({\rm{f}}\)over all values up to\({\rm{x}}\)is the cumulative distribution function of\({\rm{X}}\)at\({\rm{x}}\):

\(\begin{array}{c}{\rm{F(x;\theta ,\tau ) = }}\int_{\rm{0}}^{\rm{x}} {\rm{f}} {\rm{(x;\theta ,\tau )dx}}\\{\rm{ = }}\int_{\rm{0}}^{\rm{x}} {\frac{{\rm{\theta }}}{{\rm{\tau }}}} {\left( {{\rm{1 - }}\frac{{\rm{x}}}{{\rm{\tau }}}} \right)^{{\rm{\theta - 1}}}}{\rm{dx}}\end{array}\)

Let\({\rm{u = 1 - }}\frac{{\rm{x}}}{{\rm{\tau }}}{\rm{ }}\)and\({\rm{du = - }}\frac{{\rm{1}}}{{\rm{\tau }}}{\rm{dx:}}\)

\(\begin{array}{l}{\rm{ = }}\int_{{\rm{x = 0}}}^{{\rm{x = x}}} {\rm{ - }} {\rm{\theta }}{{\rm{u}}^{{\rm{\theta - 1}}}}{\rm{du}}\\{\rm{ = - \theta }}\int_{{\rm{x = 0}}}^{{\rm{x = x}}} {{{\rm{u}}^{{\rm{\theta - 1}}}}} {\rm{du}}\\{\rm{ = - }}\left. {{\rm{\theta }}\left( {\frac{{{{\rm{u}}^{\rm{\theta }}}}}{{\rm{\theta }}}} \right)} \right|_{{\rm{x = 0}}}^{{\rm{x = x}}}\\{\rm{ = - }}\left. {\left( {{{\rm{u}}^{\rm{\theta }}}} \right)} \right|_{{\rm{x = 0}}}^{{\rm{x = x}}}\\{\rm{ = - }}\left. {\left( {{{\left( {{\rm{1 - }}\frac{{\rm{x}}}{{\rm{\tau }}}} \right)}^{\rm{\theta }}}} \right)} \right|_{{\rm{x = 0}}}^{{\rm{x = x}}}\\{\rm{ = - }}{\left( {{\rm{1 - }}\frac{{\rm{x}}}{{\rm{\tau }}}} \right)^{\rm{\theta }}}{\rm{ + (1)}}\\{\rm{ = 1 - }}{\left( {{\rm{1 - }}\frac{{\rm{x}}}{{\rm{\tau }}}} \right)^{\rm{\theta }}}\end{array}\)

Therefore,

When \({\rm{x}}\) is smaller than \({\rm{0}}\), the cumulative distribution function \({\rm{F}}\) is zero, and when \({\rm{x}}\) is larger than \({\rm{\tau }}\), the cumulative distribution function \({\rm{F}}\) is one:

05

Explanation

(c)Part (b) revealed the cumulative distribution function:

\({\rm{F(x;\theta ,\tau ) = }}\left\{ {\begin{array}{*{20}{c}}{\rm{0}}&{{\rm{x < 0}}}\\{{\rm{1 - }}{{\left( {{\rm{1 - }}\frac{{\rm{x}}}{{\rm{\tau }}}} \right)}^{\rm{\theta }}}}&{{\rm{0}} \le {\rm{x < \tau }}}\\{\rm{1}}&{{\rm{x}} \ge {\rm{\tau }}}\end{array}} \right.\)

The median is defined as the value x at which the cumulative distributive function equals\(\frac{{\rm{1}}}{{\rm{2}}}\).

\(\begin{array}{c}{\rm{1 - }}{\left( {{\rm{1 - }}\frac{{\rm{x}}}{{\rm{\tau }}}} \right)^{\rm{\theta }}}{\rm{ = }}\frac{{\rm{1}}}{{\rm{2}}}\\{\rm{ - }}{\left( {{\rm{1 - }}\frac{{\rm{x}}}{{\rm{\tau }}}} \right)^{\rm{\theta }}}{\rm{ = - }}\frac{{\rm{1}}}{{\rm{2}}}{\rm{(Subtract 1 from each side)}}\\{\left( {{\rm{1 - }}\frac{{\rm{x}}}{{\rm{\tau }}}} \right)^{\rm{\theta }}}{\rm{ = }}\frac{{\rm{1}}}{{\rm{2}}}{\rm{(Multiply each side by - 1)}}\\{\rm{1 - }}\frac{{\rm{x}}}{{\rm{\tau }}}{\rm{ = }}{\left( {\frac{{\rm{1}}}{{\rm{2}}}} \right)^{{\rm{1/\theta }}}}{\rm{(Take }}\frac{{\rm{1}}}{{\rm{\theta }}}{\rm{th power of each side)}}\\{\rm{ - }}\frac{{\rm{x}}}{{\rm{\tau }}}{\rm{ = }}{\left( {\frac{{\rm{1}}}{{\rm{2}}}} \right)^{{\rm{1/\theta }}}}{\rm{ - 1(Subtract 1 from each side)}}\\\frac{{\rm{x}}}{{\rm{\tau }}}{\rm{ = 1 - }}{\left( {\frac{{\rm{1}}}{{\rm{2}}}} \right)^{{\rm{1/\theta }}}}{\rm{(Multiply each side by - 1)}}\\{\rm{x = \tau }}\left( {{\rm{1 - }}{{\left( {\frac{{\rm{1}}}{{\rm{2}}}} \right)}^{{\rm{1/\theta }}}}} \right){\rm{(Multiply each side by \tau )}}\\{\rm{x = \tau - }}\frac{{\rm{\tau }}}{{{{\rm{2}}^{{\rm{1/\theta }}}}}}\end{array}\)

Therefore, the median is \({\rm{\tau - }}\frac{{\rm{\tau }}}{{{{\rm{2}}^{{\rm{1/\theta }}}}}}\).

06

Explanation

(d)The integral of the pdf\({\rm{f}}\)over all values up to\({\rm{x}}\)is the cumulative distribution function of\({\rm{X}}\)at\({\rm{x}}\):

\(\begin{array}{c}{\rm{F(x;\theta ,\tau ) = }}\int_{\rm{0}}^{\rm{x}} {\rm{f}} {\rm{(x;\theta ,\tau )dx}}\\{\rm{ = }}\int_{\rm{0}}^{\rm{x}} {\frac{{\rm{\theta }}}{{\rm{\tau }}}} {\left( {{\rm{1 - }}\frac{{\rm{x}}}{{\rm{\tau }}}} \right)^{{\rm{\theta - 1}}}}{\rm{dx}}\end{array}\)

Let \({\rm{u = 1 - }}\frac{{\rm{x}}}{{\rm{\tau }}}{\rm{ }}\)and \({\rm{du = - }}\frac{{\rm{1}}}{{\rm{\tau }}}{\rm{dx:}}\)

\(\begin{array}{l}{\rm{ = }}\int_{{\rm{x = 0}}}^{{\rm{x = x}}} {\rm{ - }} {\rm{\theta }}{{\rm{u}}^{{\rm{\theta - 1}}}}{\rm{du}}\\{\rm{ = - \theta }}\int_{{\rm{x = 0}}}^{{\rm{x = x}}} {{{\rm{u}}^{{\rm{\theta - 1}}}}} {\rm{du}}\\{\rm{ = - }}\left. {{\rm{\theta }}\left( {\frac{{{{\rm{u}}^{\rm{\theta }}}}}{{\rm{\theta }}}} \right)} \right|_{{\rm{x = 0}}}^{{\rm{x = x}}}\\{\rm{ = - }}\left. {\left( {{{\rm{u}}^{\rm{\theta }}}} \right)} \right|_{{\rm{x = 0}}}^{{\rm{x = x}}}\end{array}\)

\(\begin{array}{l}{\rm{ = - }}\left. {\left( {{{\left( {{\rm{1 - }}\frac{{\rm{x}}}{{\rm{\tau }}}} \right)}^{\rm{\theta }}}} \right)} \right|_{{\rm{x = 0}}}^{{\rm{x = x}}}\\{\rm{ = - }}{\left( {{\rm{1 - }}\frac{{\rm{x}}}{{\rm{\tau }}}} \right)^{\rm{\theta }}}{\rm{ + (1)}}\\{\rm{ = 1 - }}{\left( {{\rm{1 - }}\frac{{\rm{x}}}{{\rm{\tau }}}} \right)^{\rm{\theta }}}\end{array}\)

When\({\rm{x}}\)is smaller than\({\rm{0}}\), the cumulative distribution function\({\rm{F}}\)is zero, and when\({\rm{x}}\)is larger than\({\rm{\tau }}\), the cumulative distribution function\({\rm{F}}\)is one:

\({\rm{F(x;\theta ,\tau ) = }}\left\{ {\begin{array}{*{20}{c}}{\rm{0}}&{{\rm{x < 0}}}\\{{\rm{1 - }}{{\left( {{\rm{1 - }}\frac{{\rm{x}}}{{\rm{\tau }}}} \right)}^{\rm{\theta }}}}&{{\rm{0}} \le {\rm{x < \tau }}}\\{\rm{1}}&{{\rm{x}} \ge {\rm{\tau }}}\end{array}} \right.\)

The difference of the cumulative distribution function at either endpoint is then used to calculate the probability\({\rm{P(50}} \le {\rm{X}} \le {\rm{70)}}\):

\(\begin{aligned}{\rm{P(50}} \le {\rm{X}} \le 70) &= F(70,4,80) - F(50,4,80) \\ &= 1 - {\left( {{\rm{1 - }}\frac{{{\rm{70}}}}{{{\rm{80}}}}} \right)^{\rm{4}}}{\rm{ - }}\left( {{\rm{1 - }}{{\left( {{\rm{1 - }}\frac{{{\rm{50}}}}{{{\rm{80}}}}} \right)}^{\rm{4}}}} \right)\\ &= \frac{{{\rm{4095}}}}{{{\rm{4096}}}}{\rm{ - }}\frac{{{\rm{4015}}}}{{{\rm{4096}}}}\\ &= \frac{{{\rm{80}}}}{{{\rm{4096}}}}\\ &= \frac{{\rm{5}}}{{{\rm{256}}}}\\ \approx {\rm{0}}{\rm{.195}}\\{\rm{ = 1}}{\rm{.95\% }}\end{aligned}\)

Therefore, the probability is \({\rm{1}}{\rm{.95\% }}\).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Evaluate the following:

a. \({\rm{\Gamma (6)}}\)

b. \({\rm{\Gamma (5/2)}}\)

c. \({\rm{F(4;5)}}\) (the incomplete gamma function) and \({\rm{F(5;4)}}\)

d. P(X拢 5)when \({\rm{X}}\) has a standard gamma distribution with\({\rm{\alpha = 7}}\).

e. \({\rm{P(3 < X < 8)}}\)when \({\rm{X}}\)has the distribution specified in (d).

In a road-paving process, asphalt mix is delivered to the hopper of the paver by trucks that haul the material from the batching plant. The article '"Modeling of' Simultaneously Continuous and Stochastic Construction Activities for Simulation' (J. of Construction Engr. and Mgmut.,\({\rm{2013: 1037 - 1045}}\)) proposed a normal distribution with mean value\({\rm{8}}{\rm{.46\;min}}\)and standard deviation\({\rm{.913\;min}}\)for the rv\({\rm{X = }}\)truck haul time.

a. What is the probability that haul time will be at least\({\rm{10\;min}}\)? Will exceed\({\rm{10\;min}}\)?

b. What is the probability that haul time will exceed\({\rm{15\;min}}\)?

c. What is the probability that haul time will be between 8 and\({\rm{10\;min}}\)?

d. What value\({\rm{c}}\)is such that\({\rm{98\% }}\)of all haul times are in the interval from\({\rm{8}}{\rm{.46 - c to 8}}{\rm{.46 + c}}\)?

e. If four haul times are independently selected, what is the probability that at least one of them exceeds\({\rm{10\;min}}\)?

Two different professors have just submitted final exams for duplication. Let \({\rm{X}}\) denote the number of typographical errors on the first professor鈥檚 exam and \({\rm{Y}}\) denote the number of such errors on the second exam. Suppose \({\rm{X}}\) has a Poisson distribution with parameter \({{\rm{\mu }}_{\rm{1}}}\), \({\rm{Y}}\) has a Poisson distribution with parameter \({{\rm{\mu }}_{\rm{2}}}\), and \({\rm{X}}\) and \({\rm{Y}}\) are independent.

a. What is the joint pmf of \({\rm{X}}\) and\({\rm{Y}}\)?

b. What is the probability that at most one error is made on both exams combined?

c. Obtain a general expression for the probability that the total number of errors in the two exams is m (where \({\rm{m}}\) is a nonnegative integer). (Hint: \({\rm{A = }}\left\{ {\left( {{\rm{x,y}}} \right){\rm{:x + y = m}}} \right\}{\rm{ = }}\left\{ {\left( {{\rm{m,0}}} \right)\left( {{\rm{m - 1,1}}} \right){\rm{,}}.....{\rm{(1,m - 1),(0,m)}}} \right\}\)Now sum the joint pmf over \({\rm{(x,y)}} \in {\rm{A}}\)and use the binomial theorem, which says that

\({\rm{P(X + Y = m)}}\mathop {\rm{ = }}\limits^{{\rm{(1)}}} {\sum\limits_{{\rm{k = 0}}}^{\rm{m}} {\left( {\begin{array}{*{20}{c}}{\rm{m}}\\{\rm{k}}\end{array}} \right){{\rm{a}}^{\rm{k}}}{{\rm{b}}^{{\rm{m - k}}}}{\rm{ = }}\left( {{\rm{a + b}}} \right)} ^{\rm{m}}}\)

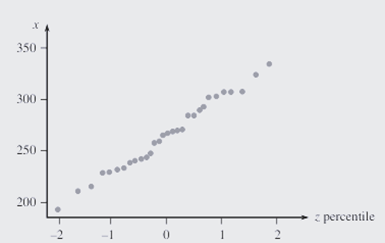

The accompanying normal probability plot was constructed from a sample of \({\rm{30}}\) readings on tension for mesh screens behind the surface of video display tubes used in computer monitors. Does it appear plausible that the tension distribution is normal?
