Let \({\rm{X}}\) denote the temperature at which a certain chemical reaction takes place. Suppose that \({\rm{X}}\) has pdf

\(f(x) = \left\{ {\begin{aligned}{{}{}}{\frac{1}{9}\left( {4 - {x^2}} \right)}&{ - 1£x£2} \\0&{{\text{ }}otherwise{\text{ }}}\end{aligned}} \right.\)

a. Sketch the graph of \({\rm{f(x)}}\).

b. Determine the cdf and sketch it.

c. Is \({\rm{0}}\) the median temperature at which the reaction takes place? If not, is the median temperature smaller or larger than\({\rm{0}}\)?

d. Suppose this reaction is independently carried out once in each of ten different labs and that the pdf of reaction time in each lab is as given. Let \({\rm{Y = }}\) the number among the ten labs at which the temperature exceeds \({\rm{1}}\). What kind of distribution does \({\rm{Y}}\) have? (Give the names and values of any parameters.)

Short Answer

Expert verified

(a) The graph of \({\rm{f(x)}}\) is

(b) \(F(x) = \left\{ {\begin{aligned}{{}{}}0&{x < - 1} \\{ - \frac{{{x^3}}}{{27}} + \frac{{4x}}{9} + \frac{{11}}{{27}}}&{ - 1£2} \\1&{x > 2}\end{aligned}} \right.\)

(c) No, the median temperature is larger than 0

(d) \({\rm{Y\gg Bin}}\left( {{\rm{10,}}\frac{{\rm{5}}}{{{\rm{27}}}}} \right)\)

Step by step solution

01

Definition

Probability simply refers to the likelihood of something occurring. We may talk about the probabilities of particular outcomes—how likely they are—when we're unclear about the result of an event. Statistics is the study of occurrences guided by probability.

02

Sketch the graph of \({\rm{f(x)}}\)

(a) The pdf \({\rm{f(x)}}\) is given to us as:

\({\rm{f(x) = }}\left\{ {\begin{array}{*{20}{l}}{\frac{{\rm{1}}}{{\rm{9}}}\left( {{\rm{4 - }}{{\rm{x}}^{\rm{2}}}} \right)}&{{\rm{ - 1 < x < 2}}}\\{\rm{0}}&{{\rm{ otherwise }}}\end{array}} \right.\)

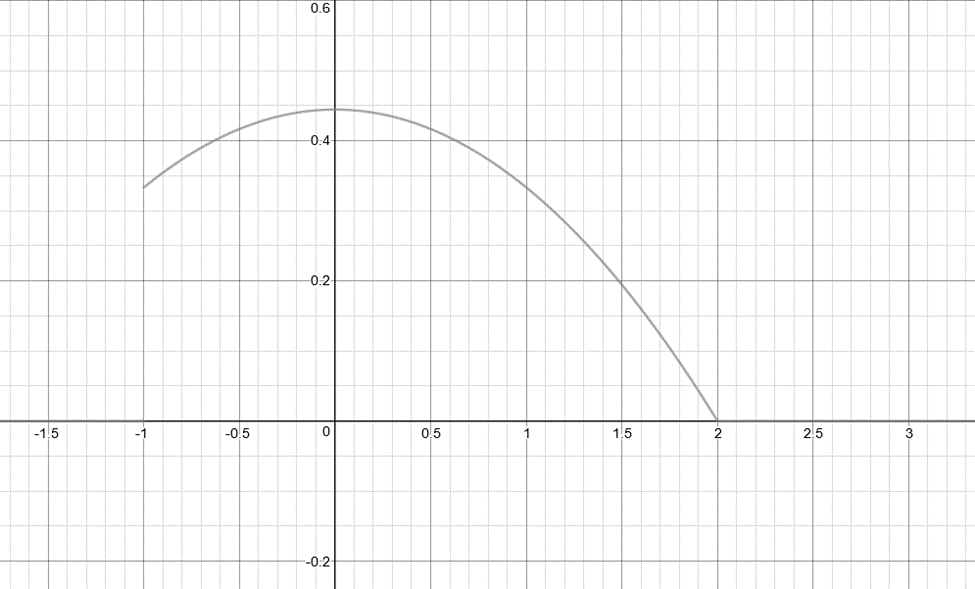

It is plotted in the figure given below:

03

Determining the cdf

(b) We recall the definition of cdf of a continuous variable.

Definition: The cumulative distribution function \({\rm{F(x)}}\)for a continuous rv \({\rm{X}}\) is defined for every number \({\rm{x}}\) by

\(F(x) = P(X£x) = \int_{ - \yen}^x f (y) \times dy\)

Since \({\rm{f}}\left( {\rm{x}} \right)\) is non-zero only for \({\rm{x}}\) between \({\rm{ - 1}}\) and \({\rm{2}}\) . Hence for any \({\rm{x}}\) between \({\rm{ - 1}}\)and \({\rm{2}}\), we can write:

\(\begin{aligned}F(X)&=\int_{{\rm{ - 1}}}^{\rm{x}} {\frac{{\rm{1}}}{{\rm{9}}}} \left( {{\rm{4 - }}{{\rm{y}}^{\rm{2}}}} \right){\rm{ \times dy}}\\&=\frac{{\rm{4}}}{{\rm{9}}}\int_{{\rm{ - 1}}}^{\rm{x}} {\rm{d}} {\rm{y - }}\frac{{\rm{1}}}{{\rm{9}}}\int_{{\rm{ - 1}}}^{\rm{x}} {{{\rm{y}}^{\rm{2}}}} {\rm{ \times dy}}\\&=\frac{{\rm{4}}}{{\rm{9}}}{\rm{[y]}}_{{\rm{ - 1}}}^{\rm{x}}{\rm{ - }}\frac{{\rm{1}}}{{\rm{9}}}\left[ {\frac{{{{\rm{y}}^{\rm{3}}}}}{{\rm{3}}}} \right]_{{\rm{ - 1}}}^{\rm{x}}\\&=\frac{{\rm{4}}}{{\rm{9}}}{\rm{[x - ( - 1)] - }}\frac{{\rm{1}}}{{\rm{9}}}\left[ {\frac{{{{\rm{x}}^{\rm{3}}}}}{{\rm{3}}}{\rm{ - }}\frac{{{{{\rm{( - 1)}}}^{\rm{3}}}}}{{\rm{3}}}} \right]\\F(X)&=-\frac{{{{\rm{x}}^{\rm{3}}}}}{{{\rm{27}}}}{\rm{ + }}\frac{{{\rm{4x}}}}{{\rm{9}}}{\rm{ + }}\frac{{{\rm{11}}}}{{{\rm{27}}}}\end{aligned}\)

Thus overall \({\rm{F(X)}}\)can be given as:

\({\rm{F(x) = }}\left\{ {\begin{aligned}{{}{}}{\rm{0}}&{{\rm{x < - 1}}}\\{{\rm{ - }}\frac{{{{\rm{x}}^{\rm{3}}}}}{{{\rm{27}}}}{\rm{ + }}\frac{{{\rm{4x}}}}{{\rm{9}}}{\rm{ + }}\frac{{{\rm{11}}}}{{{\rm{27}}}}}&{{\rm{ - 1£x£2}}}\\{\rm{1}}&{{\rm{x > 2}}}\end{aligned}} \right.\)

04

Sketching the graph for cdf

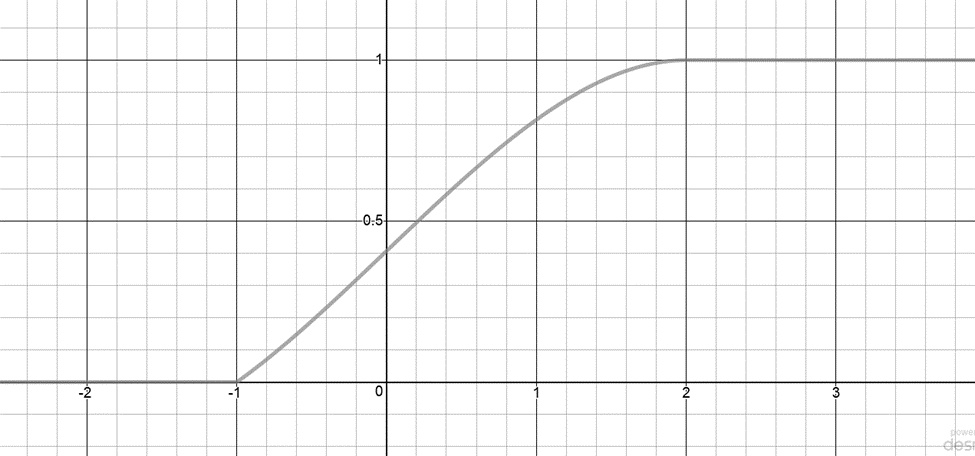

\({\rm{ The cdf F(x) is plotted in the figure given below : }}\)

05

Is \({\rm{0}}\)the median temperature at which the reaction takes place

(c) Let us denote the median as \({\rm{\tilde \mu }}\) know that at median: \({\rm{F(\tilde \mu ) = 0}}{\rm{.5}}\)

From the cdf that we derived in the last part:

\({\rm{F(0) = }}\frac{{{\rm{11}}}}{{{\rm{27}}}}{\rm{\gg 0}}{\rm{.41}}\)

Hence 0 is not the median temperature at which the reaction takes place.

And since: \({\rm{F(0) < 0}}{\rm{.5}}\)

Hence the median temperature is larger than\({\rm{0}}\).

06

What kind of distribution does \({\rm{Y}}\)have

(d)

It is given that \({\rm{Y}}\) is the number among the ten labs at which the temperature exceeds\({\rm{1}}\). Then

\({\rm{Y\gg Bin(n,p)}}\)

Here: \({\rm{n = 10}}\)

And \({\rm{p}}\)is the probability that the temperature in a lab exceeds\({\rm{1}}\). Hence

\(\begin{aligned}P(X > 1) &= 1 - F(1)\\&= 1 -\left( {{\rm{ - }}\frac{{{{{\rm{(1)}}}^{\rm{3}}}}}{{{\rm{27}}}}{\rm{ + }}\frac{{{\rm{4(1)}}}}{{\rm{9}}}{\rm{ + }}\frac{{{\rm{11}}}}{{{\rm{27}}}}} \right)\\&=\frac{{\rm{5}}}{{{\rm{27}}}}\end{aligned}\)

Proposition: Let \({\rm{X}}\) be a continuous rv with \({\rm{pdf(x)}}\) and cdf\({\rm{F(x)}}\). Then for any number a,

\({\rm{P(X > a) = 1 - F(a)}}\)
