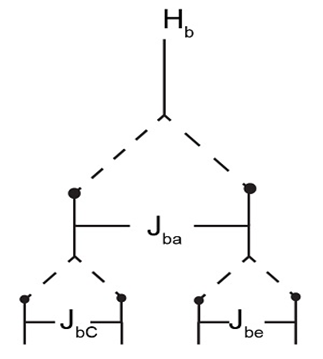

Splitting diagram (a)

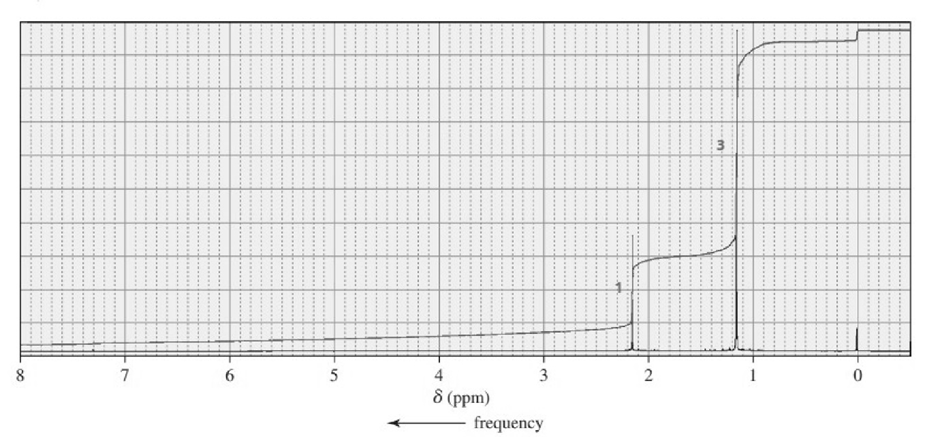

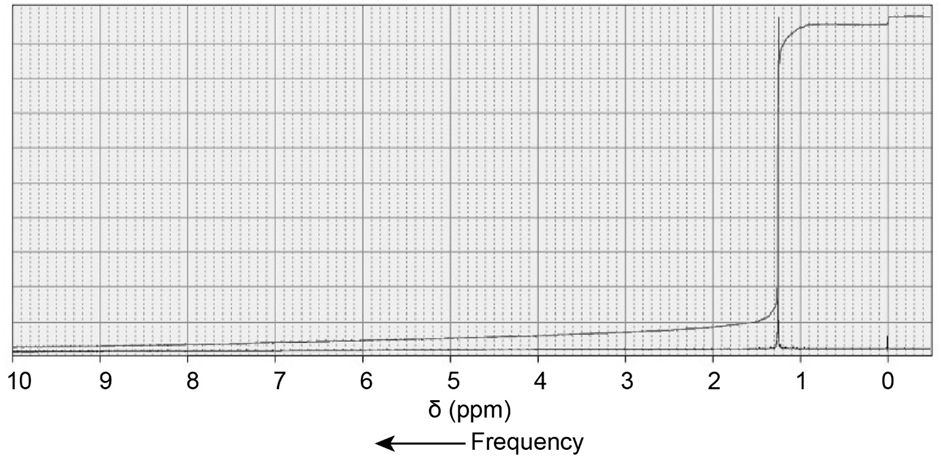

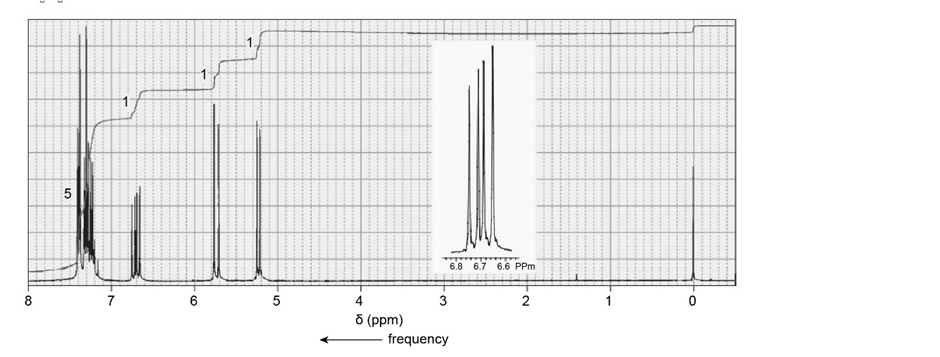

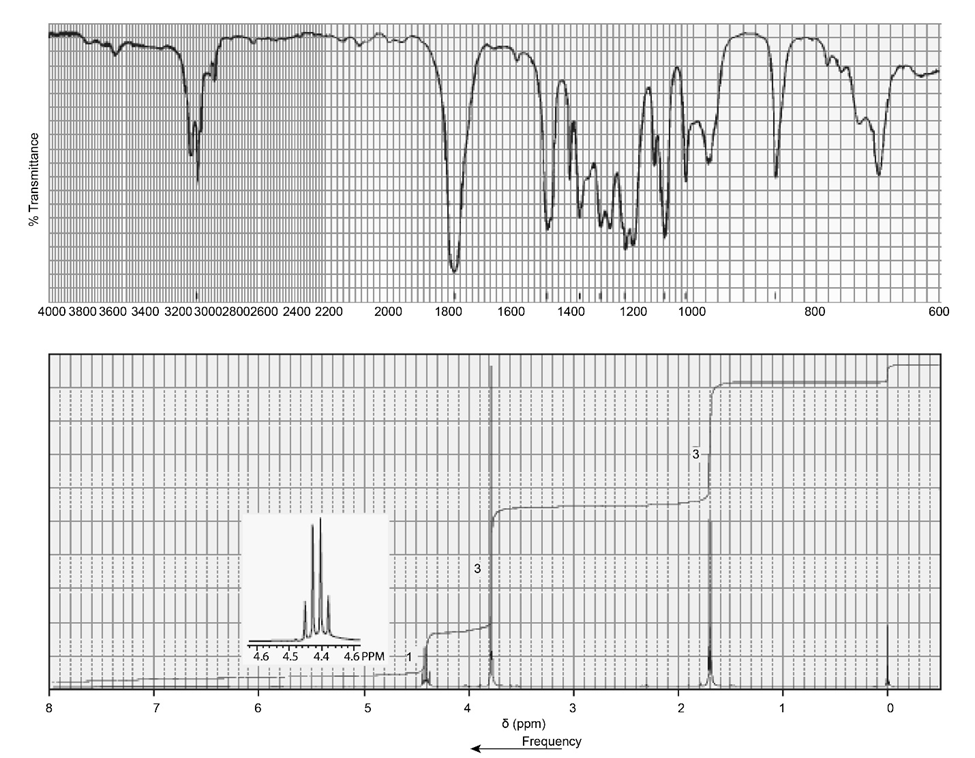

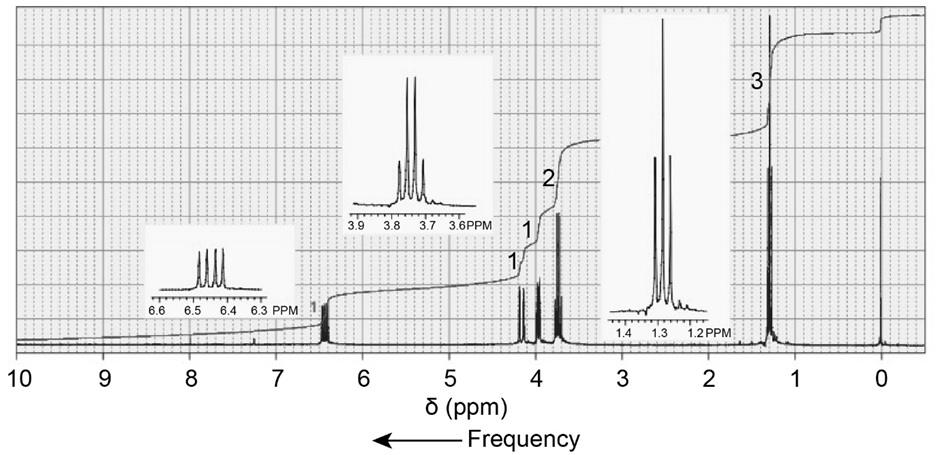

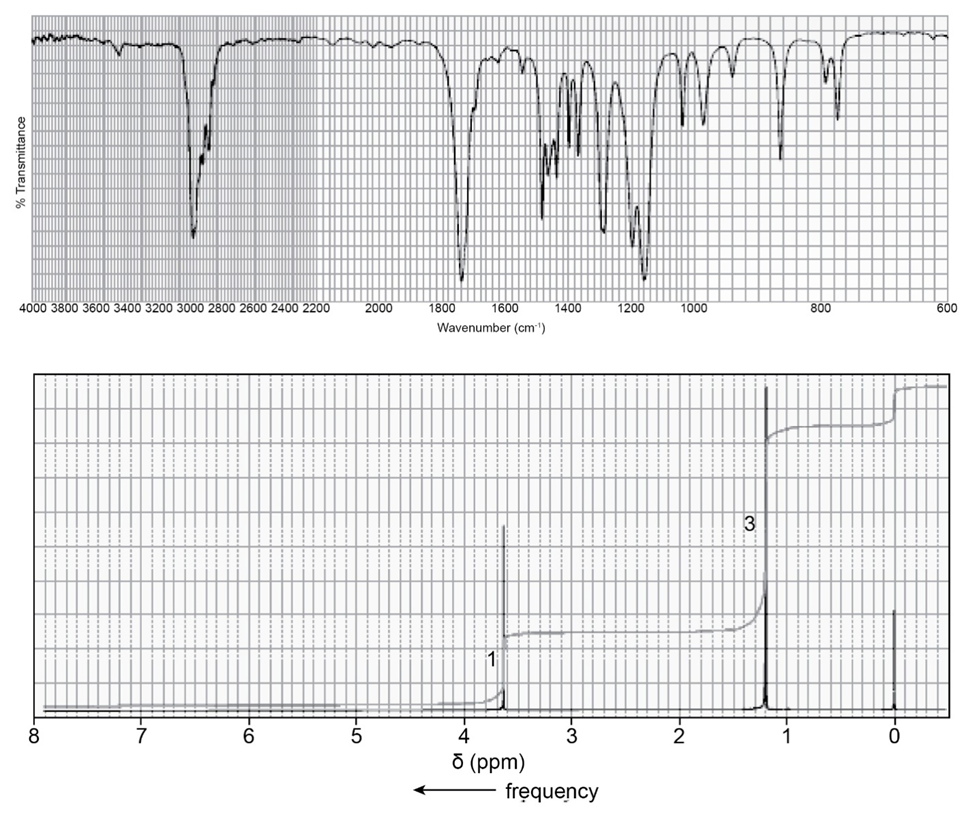

The signal for the H_b proton of the above diagram is a doublet of a doublet. The H_bsignal split into a doublet by H_a proton, and these resulted peaks split into a doublet by H_c proton. In the given diagram, the two sets H_a and H_b are non-equivalent protons and have different coupling constant values. Thus, multiplicity of signal can be determined using (N_a+1) (N_b+1) rule, i.e., (1+1) (1+1) = 4.

Thus, two non-equivalent protons split into two doublets, resulting in a doublet of doublet signal for the H_a proton.

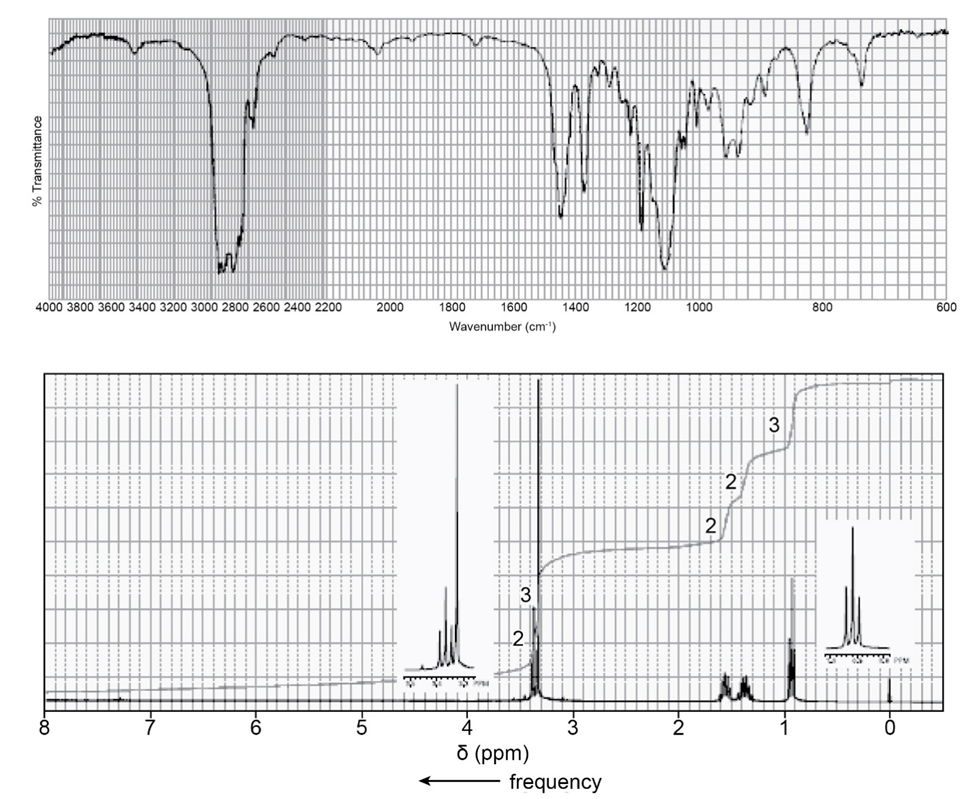

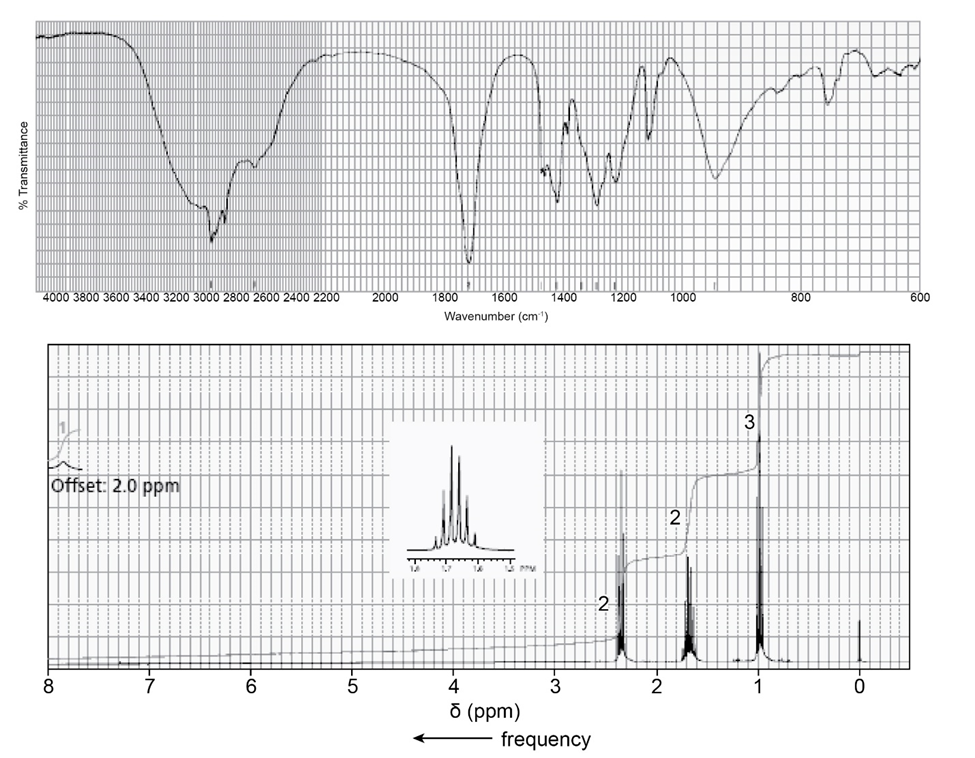

The signal for the H_b proton of the above diagram is a triplet. The diagram shows that the two sets, H_a and H_b, are non-equivalent protons and have the same coupling constant values. Thus, the two different H_a and H_b split a signal Ha the multiplicity can be calculated using the (N+1) rule, i.e., (2+1) = 3.

Thus, two non-equivalent protons split into triplets because of the same coupling constant values.

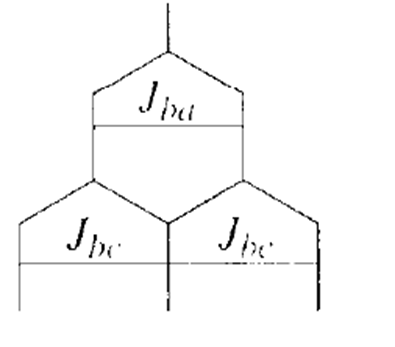

Splitting diagram (b)
