Chapter 3: Q15E (page 677)

Question:A Carnot engine has an efficiency of 66% and performs\({\bf{2}}{\bf{.5 \times 1}}{{\bf{0}}^{\bf{4}}}\;{\bf{J}}\)of work in each cycle. (a) How much heat does the engine extract from its heat source in each cycle? (b) Suppose the engine exhausts heat at room temperature (20.0掳C). What is the temperature of its heat source?

Short Answer

Expert verified

The heat extracted by engine from heat source is \(38\;{\rm{kJ}}\).

Step by step solution

01

Identification of given data

The efficiency of Carnot engine is\(\eta = 0.66\)

The work done in each cycle is\(W = 2.5 \times {10^4}\;{\rm{J}}\)

The temperature of room is \(T = 20\;^\circ {\rm{C}}\)

02

Conceptual Explanation

The heat extracted by the engine from heat source is calculated by using the formula of thermal efficiency.

03

Determination of heat extracted by engine from heat source

The heat extracted by engine from heat source is given as:

\(\eta = 1 - \frac{W}{Q}\)

Substitute all the values in the above equation.

\(\begin{array}{l}0.66 = \frac{{2.5 \times {{10}^4}\;{\rm{J}}}}{Q}\\Q = 3.78 \times {10^4}\;{\rm{J}}\\Q = \left( {3.78 \times {{10}^4}\;{\rm{J}}} \right)\left( {\frac{{1\;{\rm{kJ}}}}{{{{10}^3}\;{\rm{J}}}}} \right)\\Q \approx 38\;{\rm{kJ}}\end{array}\)

Therefore, the heat extracted by engine from heat source is \(38\;{\rm{kJ}}\).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A cylinder with a piston contains 0.150 mol of nitrogen at 1.80 * 105 Pa and 300 K. The nitrogen may be treated as an ideal gas. The gas is first compressed isobarically to half its original volume. It then expands adiabatically back to its original volume, and finally it is heated isochorically to its original pressure. (a) Show the series of processes in a pV-diagram. (b) Compute the temperatures at the beginning and end of the adiabatic expansion. (c) Compute the minimum p

An asteroid with a diameter of and a mass 10Kmof impacts the earth 2.60脳1015Kgat a speed of 32.0KmKm landing in the Pacific Ocean. If 1.00% of the asteroid鈥檚 Kinetic energy goes to boiling ocean water (assuming an initial water temperature of 10.0掳C),what mass of water will be boiled away by the collision?(For comparison , the mass of water contained in Lake Superior is about 2脳1015Kg. )

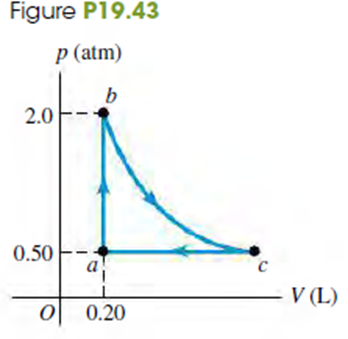

Figure P19.43 shows a pV-diagram for 0.0040 mol of ideal H2 gas. The temperature of the gas does not change during segment bc. (a) What volume does this gas occupy at point c? (b) Find the temperature of the gas at points a, b, and c. (c) How much heat went into or out of the gas during segments ab, ca, and bc? Indicate whether the heat has gone into or out of the gas. (d) Find the change in the internal energy of this hydrogen during segments ab, bc, and ca. Indicate whether the internal energy increased or decreased during each segment.

Before going in for his annual physical, a 70.0 kg man whose body temperature is 37.0掳C consumes an entire 12.0掳C can of a soft drink (mostly water) at . (a) What will his body temperature be after equilibrium is attained? Ignore any heating by the man鈥檚 metabolism. The specific heat of the man鈥檚 body is 3480鈥�Jkg鈰�K. (b) Is the change in his body temperature great enough to be measured by a medical thermometer?

(a) Equation (17.12) gives the stress required to keep the length of a rod constant as its temperature changes. Show that if the length is permitted to change by an amount 鈭哃 when its temperature changes by 鈭員, the stress is equal toFA=Y(鈭�LL0鈥�伪鈭�T)

where F is the tension on the rod, L0 is the original length of the rod, A its cross-sectional area, its coefficient of linear expansion, and Y its Young鈥檚 modulus. (b) A heavy brass bar has projections at its ends (Fig. P17.79). Two fine steel wires, fastened between the projections, are just taut (zero tension) when the whole system is at 20掳C. What is the tensile stress in the steel wires when the temperature of the system is raised to 140掳C? Make any simplifying assumptions you think are justified, but state them.
