A copper cylinder is initially at 20.0ºC. At what temperature will its volume be 0.150% larger than it is at 20.0ºC?

Short Answer

Expert verified

The Temperature at which the volume increases by 0.150% is49.40C .

Step by step solution

01

Identification of given data

Initial temperature of copper cylinder is Ti=20.00C

For copper, the coefficient of volume expansionβ=5.1×10-50C-1

Percentage change in volume of the cylinder is given as∆VV0=0.150%

02

Concept of Volume Expansion in solids.

Volume expansion is the expansion of the dimensions of an object with respect to temperature changes and can be expressed as,

∆V=V0β∆T.....(1)

Here, V is the expansion in volume, V0 is the unexpanded volume, β is the coefficient of volume expansion and T is the absolute temperature.

03

 Determination of the diameter value of the rivet following the conditions mentioned.

For copper, the coefficient of volume expansion,

β=5.1×10-5(C0)-1

The percentage change in volume of the cylinder is given to be 0.150%.

So, Δ³ÕV0=0.150×10-2

Rearrange equation (i) to get the temperature change,

∆T=∆VV0β=0.150×10-25.1×10-5(0C)-1=29.40C

Thus, the temperature at which the volume expanded 0.150% is,

Tf=Ti+∆T=20.00C+29.40C=49.40C

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Why do frozen water pipes burst? Would a mercury thermometer break if the temperature went below the freezing temperature of mercury? Why or why not?

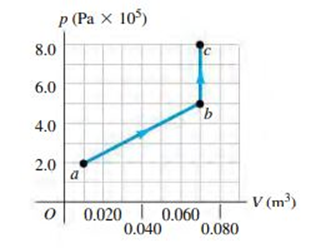

The pV-diagram in Fig. E19.13 shows a process abc involving 0.450 mol of an ideal gas. (a) What was the temperature of this gas at points a, b, and c? (b) How much work was done by or on the gas in this process? (c) How much heat had to be added during the process to increase the internal energy of the gas by 15,000 J?

Hydrothermal vents are openings in the ocean floor that discharge very hot water. The water emerging from one such vent off the Oregon coast, 2400m below the surface, is at 279° C. Despite its high temperature, the water doesn’t boil. Why not?

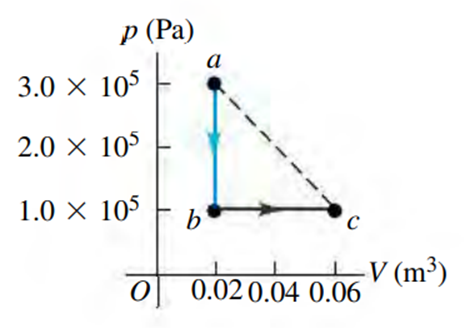

A volume of air (assumed to be an ideal gas) is first cooled without changing its volume and then expanded without changing its pressure, as shown by path abc in Fig. . (a) How does the final temperature of the gas compare with its initial temperature? (b) How much heat does the air exchange with its surroundings during process abc? Does the air absorb heat or release heat during this process? Explain. (c) If the air instead expands from state a to state c by the straight-line path shown, how much heat does it exchange with its surroundings?

A constant-volume gas thermometer registers an absolute pressure corresponding to 325 mm of mercury when in contact with water at the triple point. What pressure does it read when in contact with water at the normal boiling point?
